HP-IB
Lang/Address
Switch
The HP-IR switch on the rear panel is used to select the sweeper language
and
HP-II!
address when you apply AC power. These parameters can also be
selected via front panel operation.
Refer to Figure 7-8 for a pictorial explanation of the various switch settings
for the HP-IB address of the sweeper. The selected address depicted in this
figure represents an HP-IR address of 19.
When the HP-IR portion of the switch (switch positions 1 through 5) are all
set to 1, any address changes made from the front panel are retained through
a power cycle of the instrument. If you want your sweeper to default to a
particular address at power up, set the switch to the desired. address; you can
still make changes from the front panel, but they won’t be retained through a
power cycle.
Refer to Figure 7-9 for a pictorial explanation of the switch settings for
instrument language.
Refer to Figure 7-10 for a pictorial explanation of how to set the switch for
clearing the register contents at power on.
SELECTED
POSITION
ADDRESS
ADDRESS-
ADDS 1 TO ADDRESS IF SELECTED POSITION =
1
ADDS 2 TO ADDRESS IF SELECTED POSITION =
1
ADDS 4 TO ADDRESS IF SELECTED POSITION =
1
ADDS 8 TO ADDRESS IF SELECTED POSITION =
1
ADDS 16 TO ADDRESS IF SELECTED POSITION =
1

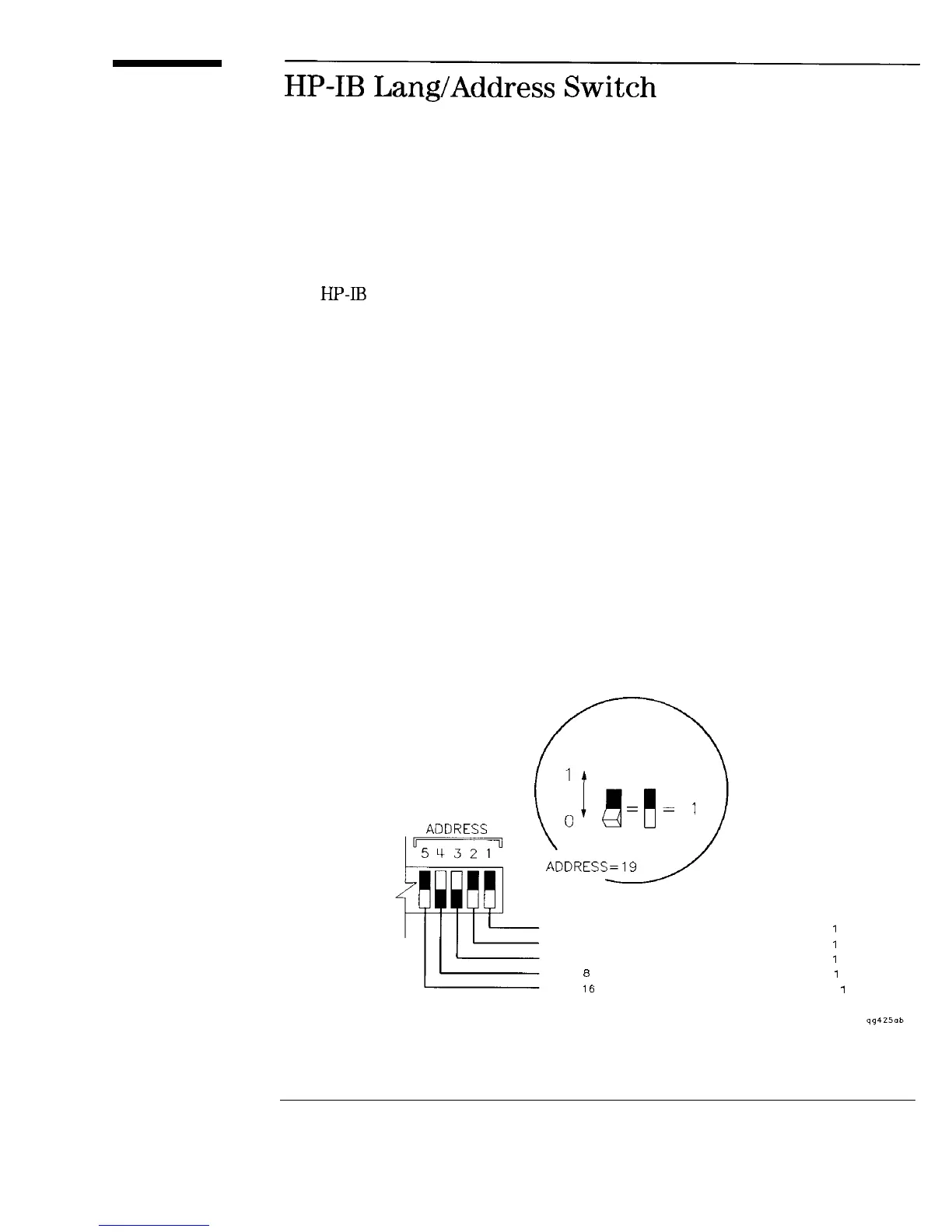

Figure 7-8. HP-IB Address Switch Settings
7-23
