HP 8559A User Manual

MODEL 8559A
ADJUSTMENTS
ADJUSTMENTS

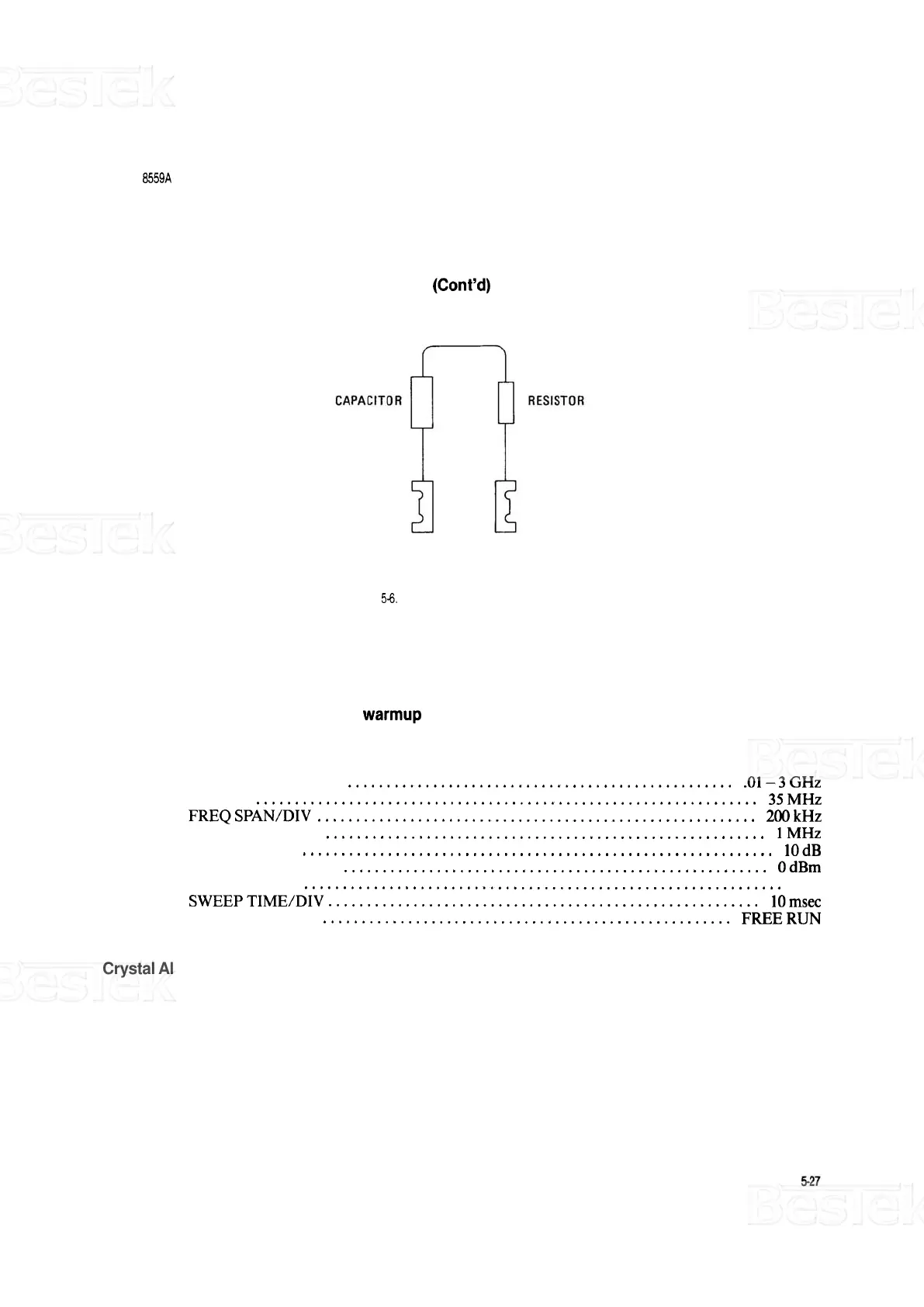

5 - 21. BANDWIDTH FILTER ADJUSTMENTS (Cont'd)
TERMINAL CONNECTORS
FIGURE
5-6. CRYSTAL SHORT CONFIGURATION
PROCEDURE:
NOTE
Allow
30 minutes warmup time before performing adjustments.
1.
Set spectrum analyzer controls as follows:
FREQUENCYBAND
.................................................. .Ol-3GHz
TUNING ................................................................. 35MHz
FREQSPAN/DIV ......................................................... 200kHz
RESOLUTIONBW ......................................................... lMHz
INPUTATTEN ............................................................. 10dB
REFERENCELEVEL ....................................................... OdBm
Amplitude Scale .............................................................. LIN
SWEEPTIME/DIV ........................................................ 10msec
SWEEPTRIGGER ..................................................... FREERUN
Crystal Alignment
2. Connect equipment as shown in Figure 5 - 5.
NOTE
If Sweep Generator A9 has been replaced or adjusted, perform steps
3
through 8. If not, proceed to step 9.
