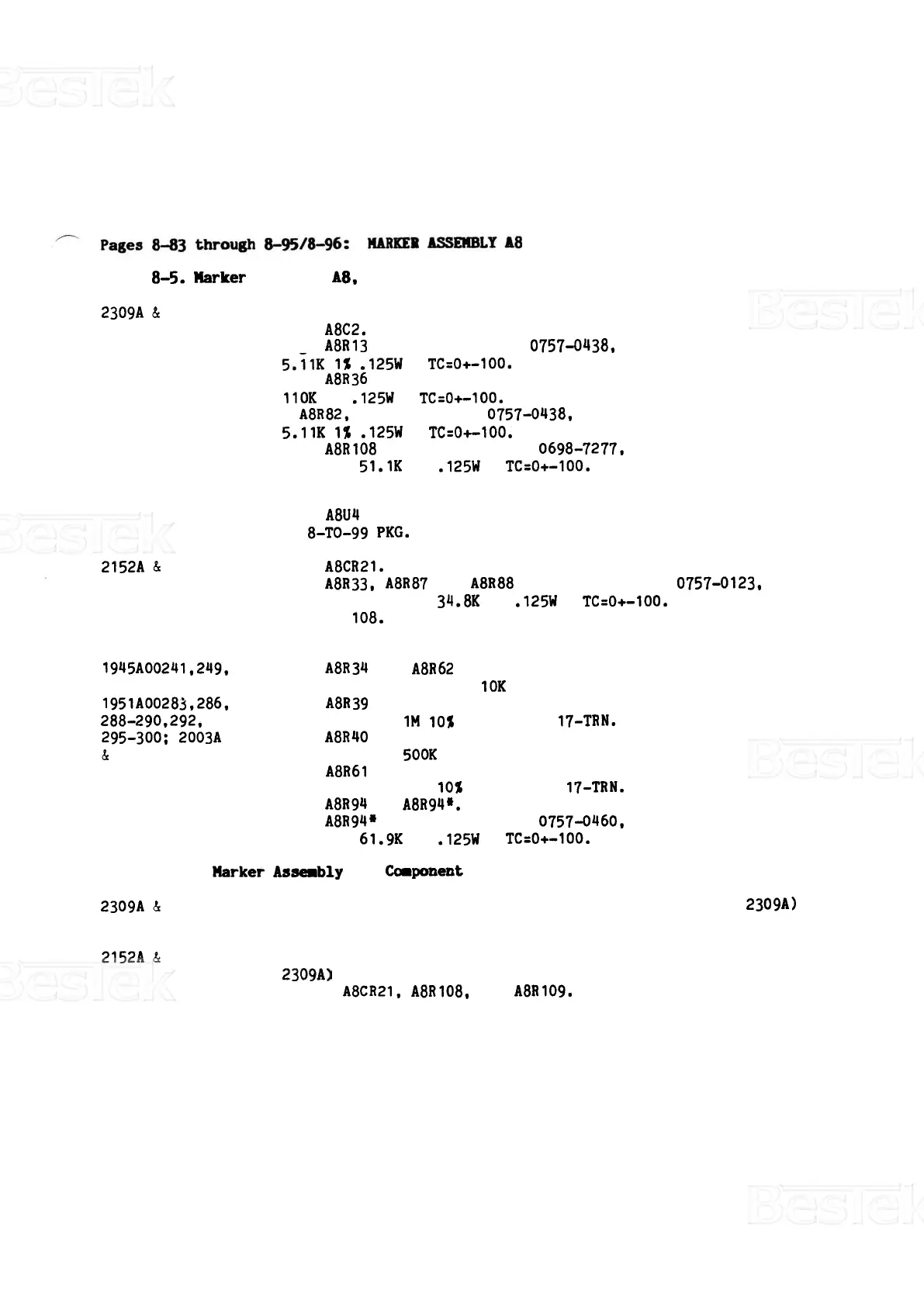

Table 8-5. Harker Assembly 88, Replaceable Parts
23098 & Below
Change
A8 to HP Part Number 08559 - 60022, Check Digit 8.
Delete A8C2.
Change A8R13 to HP Part Number 0757-0438, Check Digit 3, RESISTOR
5%~ 1% .i25w F TC=O+-loo.
Change A8R36 to HP Part Number 0757 - 0466, Check Digit 7, RESISTOR
1lOK 1% ,125W F TC=O+-100.
Add A8R82, HP Part Number 0757-0438, Check Digit 3, RESISTOR
5.11K 1% .125W F TC=O+-100.
Change A8R108 to HP Part Number 0698-7277, Check Digit 6,
RESISTOR
51.1K 1% .125W F TC=O+-100*
Delete A8R 110.
Delete A8R 1 1 1.
Change
A8U4 to HP Part Number 1826 - 1058, Check Digit 8, IC OP AMP
GP
8-T0-99 PKG.
21526 & Below
Delete
A8CR21.
Change A8R33,
A8R87 and A8R88 to HP Part Number 0757-0123, Check
Digit 3, RESISTOR
34.8K 1% .125W F TC=O+-100.
Delete A8R 108.
Delete A8R 109.
1945A00241,249, Change A8R34 and A8R62 to HP Part Number 2100 - 0670, Check
258,262,265,277: Digit 6, RESISTOR
- TRMR 10K 10% C SIDE - ADJ 17 - TRN.
1951A00283.286, Change A8R39 to HP Part Number 2100 - 3754, Check Digit 3,
288-290,292, RESISTOR - TRMR 1M 10% C SIDE - ADJ 17-TRN.
295-300; 2003A Change A8R40 to HP Part Number 2100 - 3752, Check Digit 1,
& Below RESISTOR - TRMR 500K 10% C SIDE - ADJ 17 - TRN.
Change
A8R61 to HP Part Number 2100 - 3750, Check Digit 9,
RESISTOR
- TRMR 20K 10% C SIDE - ADJ 17-TRN.
Change A8R94 to A8R94*.
Change A8R94* to HP Part Number 0757-0460, Check Digit 1,
RESISTOR
61.9K 1% .125W F TC=O+-100.
Figure 8 - 32, Harker As-bly A8, Component Locations
2309A & Below
Replace Figure 8
- 32 with new Figure 8 - 32 (SERIAL PREFIX 2309A)
included in this Manual Backdating supplement.
2152A & Below
Make the following changes to new Figure 8
- 32 (SERIAL PREFIX
23OgA :
Delete A8CR21, A8R108, and A8R109.
