MODEL 8559A PERFORMANCE TESTS
PERFORMANCE TESTS
4 - 25. CALIBRATOR OUTPUT ACCURACY
SPECIFICATION:
Amplitude:
- 10 dBm + 0.3 dB
Frequency:
35 MHz
+ 400 kHz
DESCRIPTION:
The frequency of the calibrator output signal is measured with a microwave counter. The calibrator output level
is measured using a power meter.
SPECTRUM
ANALYZER
FREQUENCY
COUNTER
I INPUT
0 y:;;
@.a@@
0.. 0 ... 0
I-1 I OUTPUT
POWER
SENSOR
-
POWER
METER

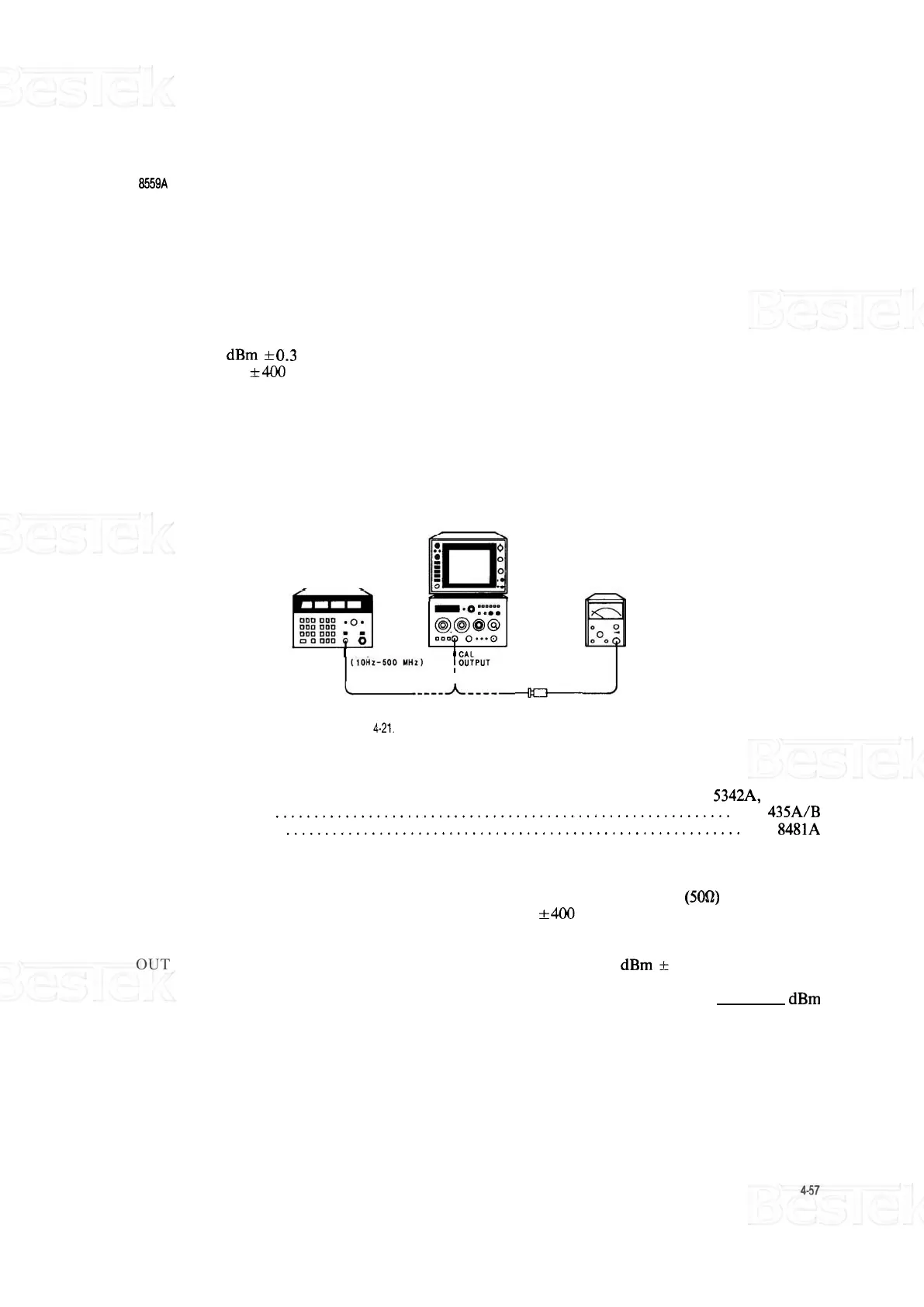

FIGURE 4-21, CALIBRATOR ACCURACY TEST SETUP
EQUIPMENT:
..............................................
Frequency Counter
HP
5342A, Opt. 005
Power Meter
........................................................... HP 435A/B
Power Sensor ........................................................... HP 8481A
PROCEDURE:
1. Connect spectrum analyzer CAL OUTPUT to frequency counter's 10 Hz
- 500 MHz (5m) input as shown
in Figure 4
- 20. Measured output frequency should be 35 MHz k 400 kHz.
2.
Zero and calibrate power meter. Connect power sensor, through adapter, to spectrum analyzer's CAL
OUTPUT and measure power level. Calibrator output level should be
- 10 dBm + 0.3 dB.
