HP 8559A User Manual

SERVICE
MODEL
8559A
A2A1 W2
RIBBON CABLE ASSEMBLY
-- -
'10 A16 MOTHERBOARD
P/O A2 FRONT
SWITCH ASSEMBLY
Pl RlbBMI OWL
A21112 r--
PIN ARRANGEMENT
SHOWN FOR
A16J2 IS AS
SEEN FROM TOP
(COMPONENT SIDE) OF
MOTHERBOARD.
A2AlW2P2 PLUGS DIRECTLY
INTO AND IS SOLDEREDTO PC
BOARD PLATED
- THRU HOLES,
COLLECTIVELY DESIGNATED
A2AlJ2.
PIN ARRANGEMENT SHOWN
HERE
IS AS SEEN FROM FRONT
OF
A2A1 FRONT SWITCH BOARD
ASSEMBLY.

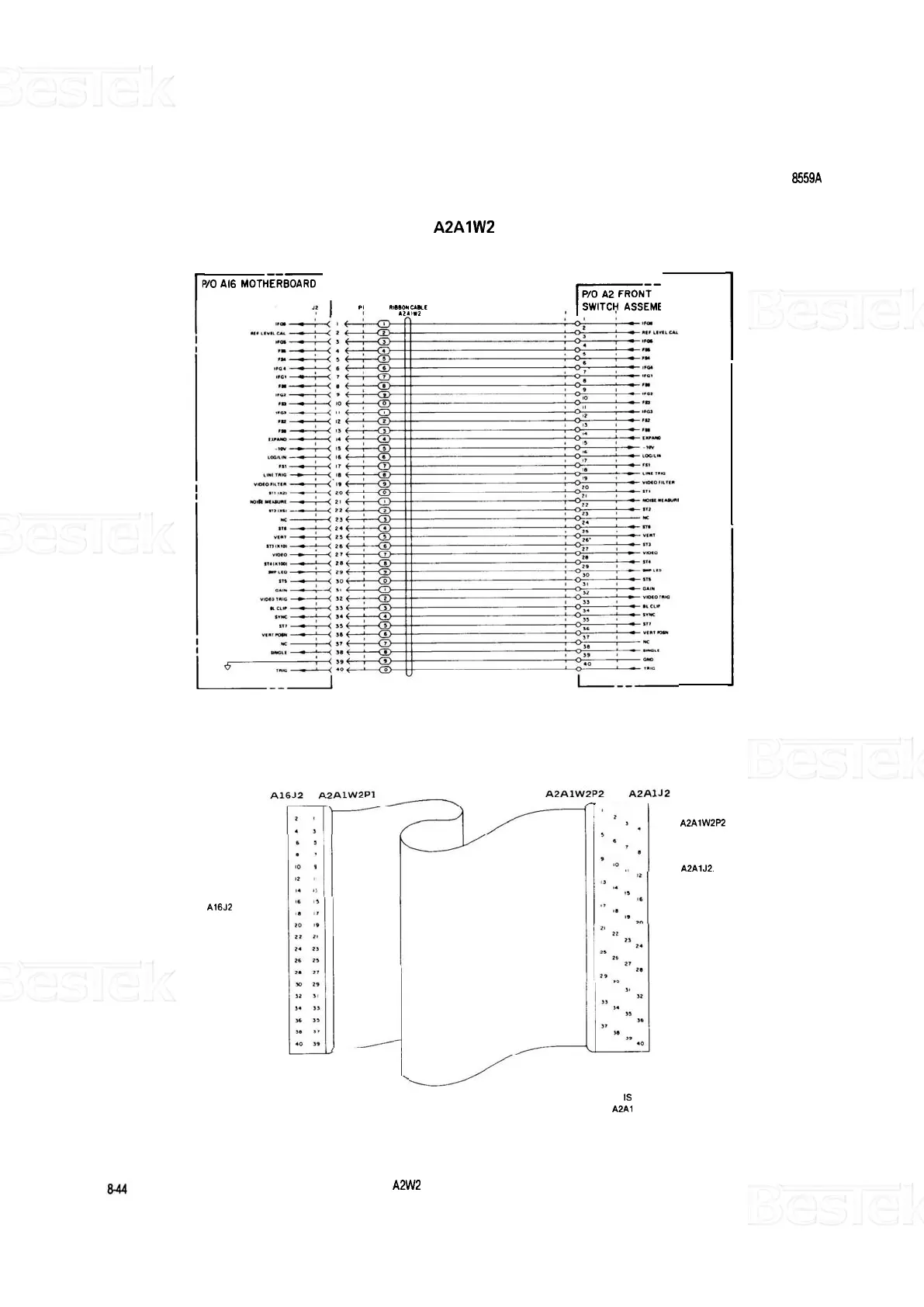

FIGURE 8 - 12.
A2W2 RIBBON CABLE, CONNECTION DIAGRAM
