PERFORMANCE TESTS
MODEL
8559A
PERFORMANCE TESTS
4 - 22. INPUT ATTENUATOR ACCURACY
SPECIFICATION:
Step Accuracy
(0 dB to 60 dB):
< k 1.0 dB per 10 - dB step, 0.01 to 18.0 GHz
Maximum Cumulative Step Error (0 dB to 60 dB):
< 2.4 dB, 0.01 to 18.0 GHz
DESCRIPTION:
The input attenuator accuracy is tested over the range of
0 to 60 dB using an RF substitution method. A step
attenuator that has been calibrated at 30 MHz by a Standards Laboratory is used for substitution. The known
error of the calibrated attenuator is taken into account when computing the input attenuator accuracy.
SPECTRUM
ANALYZER
SIQNAL QENERATOR
RF OUTPUT (
ADAPTER
Q
STEP
ATTENUATOR

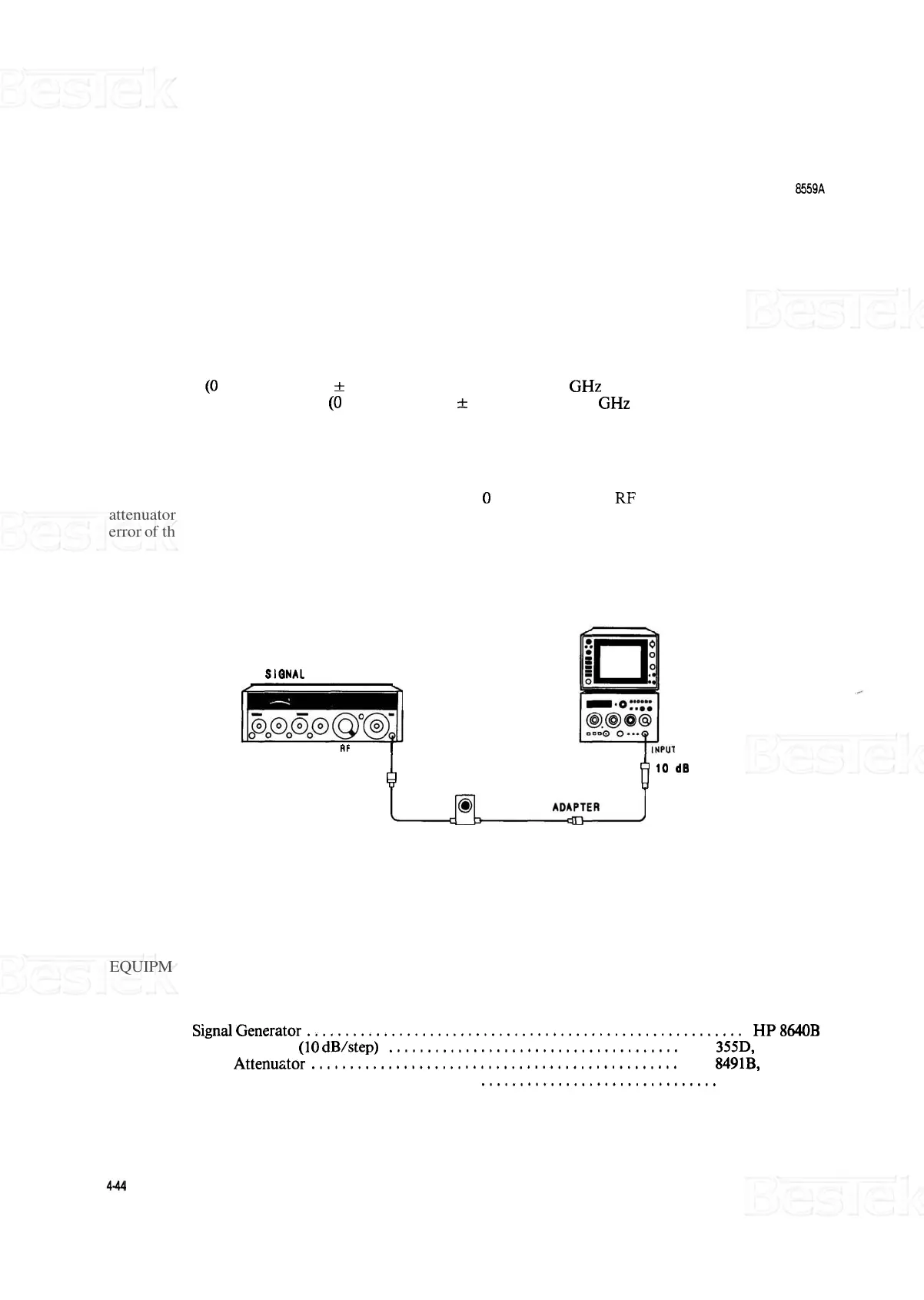

FIGURE 4 - 17. INPUT ATTENUATOR ACCURACY TEST SETUP
EQUIPMENT:
(j 10 dB
ATTENUATOR
SignalGenerator ......................................................... HP8640B
Step Attenuator (10 dB/step) ...................................... HP 355D, Opt. H82
10
- dB Attenuztor ................................................ HP 8491B, Opt. 010
Adapter, Type N
(m) to BNC (f) (2 required) ............................... HP 1250 - 0780
