5 - 30. FREQUENCY DISPLAY ADJUSTMENTS
REFERENCE:
A1 and A8 Schematics
DESCRIPTION:
The Digital Panel Meter (DPM) OFFSET and GAIN controls are adjusted for proper FREQUENCY display
indication at corresponding tuning voltage (DPMA) levels.
DIQITAL VOLTMETER
Dl SPLAY
INPUT V

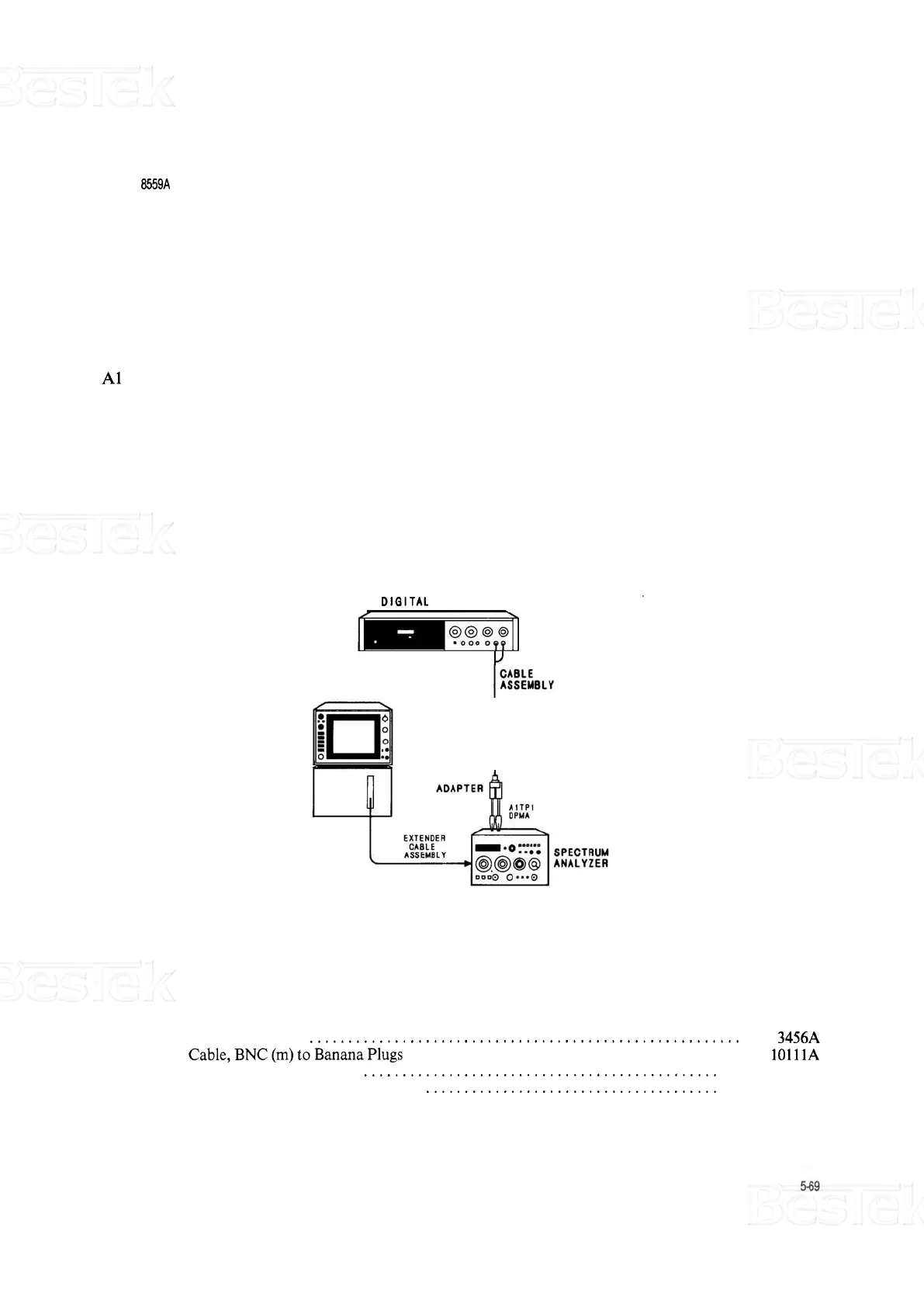

FIGURE 5 - 21. FREQUENCY DISPLAY ADJUSTMENTS TEST SETUP
EQUIPMENT:
Digital Voltmeter
........................................................ HP 3456A
..........................................
Cable,BNC(m)toBananaPlugs HP lOlllA
Extender Cable Assembly .............................................. HP 5060 - 0303
Adapter, BNC
(f) to Alligator Clips ...................................... HP 8120 - 1292
