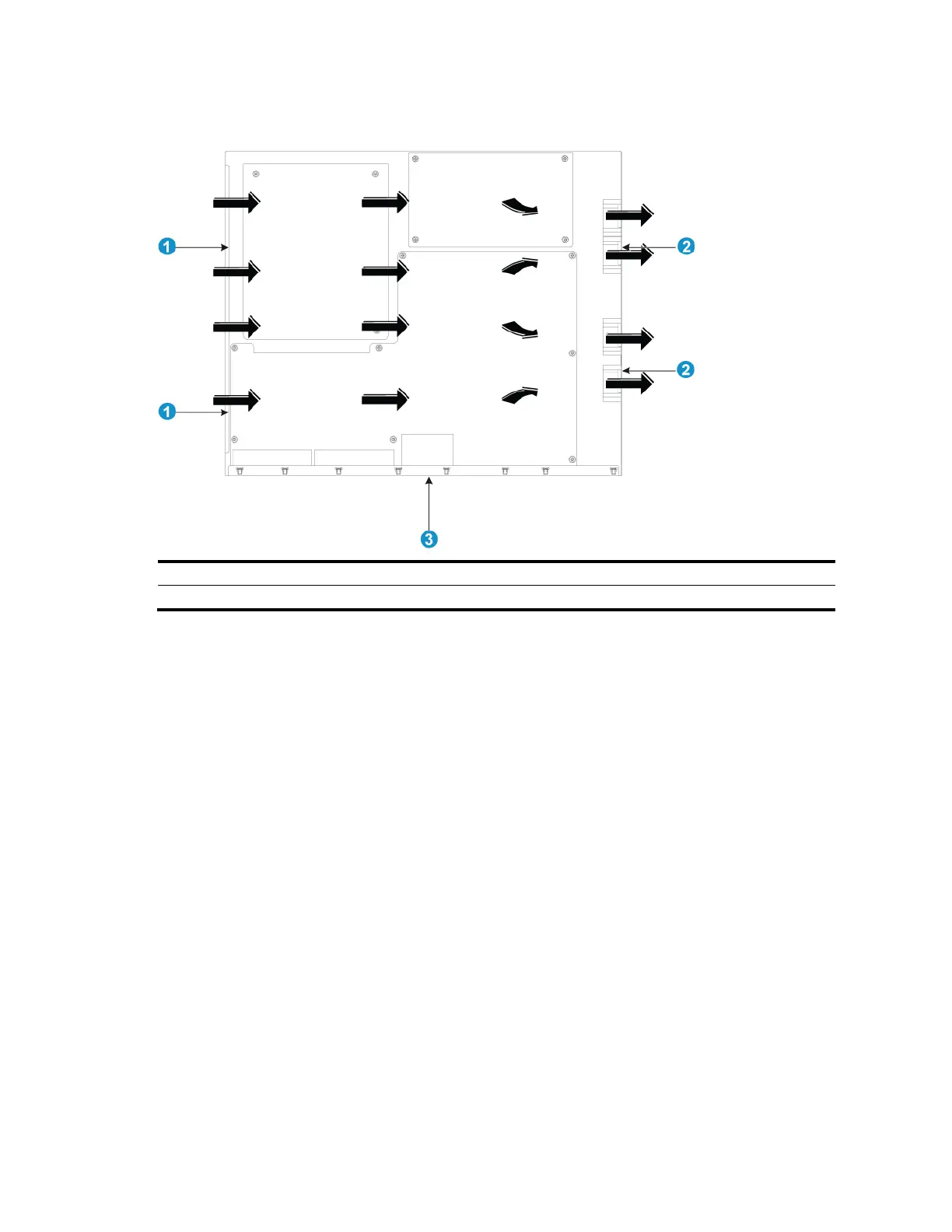

Figure 100 Airflow through the chassis
(1) Left-side inlet air vents
(2) Right-side outlet air vents
A5800-24G-PoE+/A5800-24G-PoE+TAA
Figure 101 shows the airflow design for the A5800-24G-PoE+ and A5800-24G-PoE+TAA switches. Cool
air flows in from the left side of the chassis, circulates through the chassis and the interface card, and
exhausts out the right side of the chassis.
