Removing the card in the OAP card slot
CAUTION:
Do not touch the surface-mounted components directly with your hands.
1. Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well
grounded.
2. Loosen the captive screws on the OAP card with the Philips screwdriver until all spring pressure is
released.
3. Pull the ejector levers outward (see callout 3 in Figure 53), and pull out the OAP card slowly along
the guide rails (see callout 4 in Figure 53). Do not use excessive force.
4. If you do not install a new OAP card in the slot, install a filler panel to prevent dust from entering
the switch and ensure good ventilation in the switch.

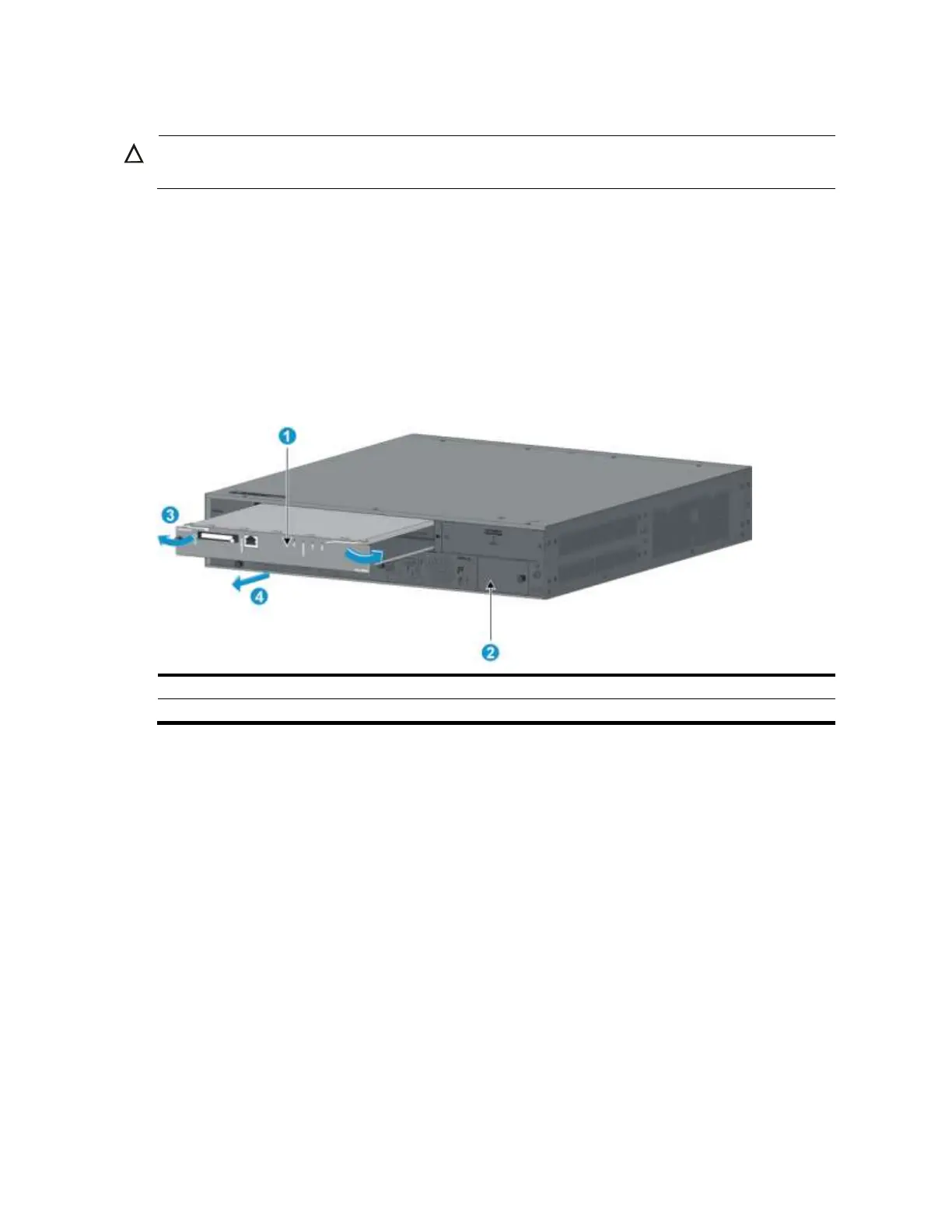

Figure 53 Removing the OAP card
(3) Pull the ejector levers outward
(4) Pull out the OAP card
Installing an OAP card in an expansion interface card slot
Unpack the OAP card and check that the card can be installed in an expansion interface card slot (see
―OAP cards‖).
Follow the procedure described in ―Installing an interface card‖ to install the OAP card in an expansion
interface card slot.
