HP A5800 Series Installation Guide

81

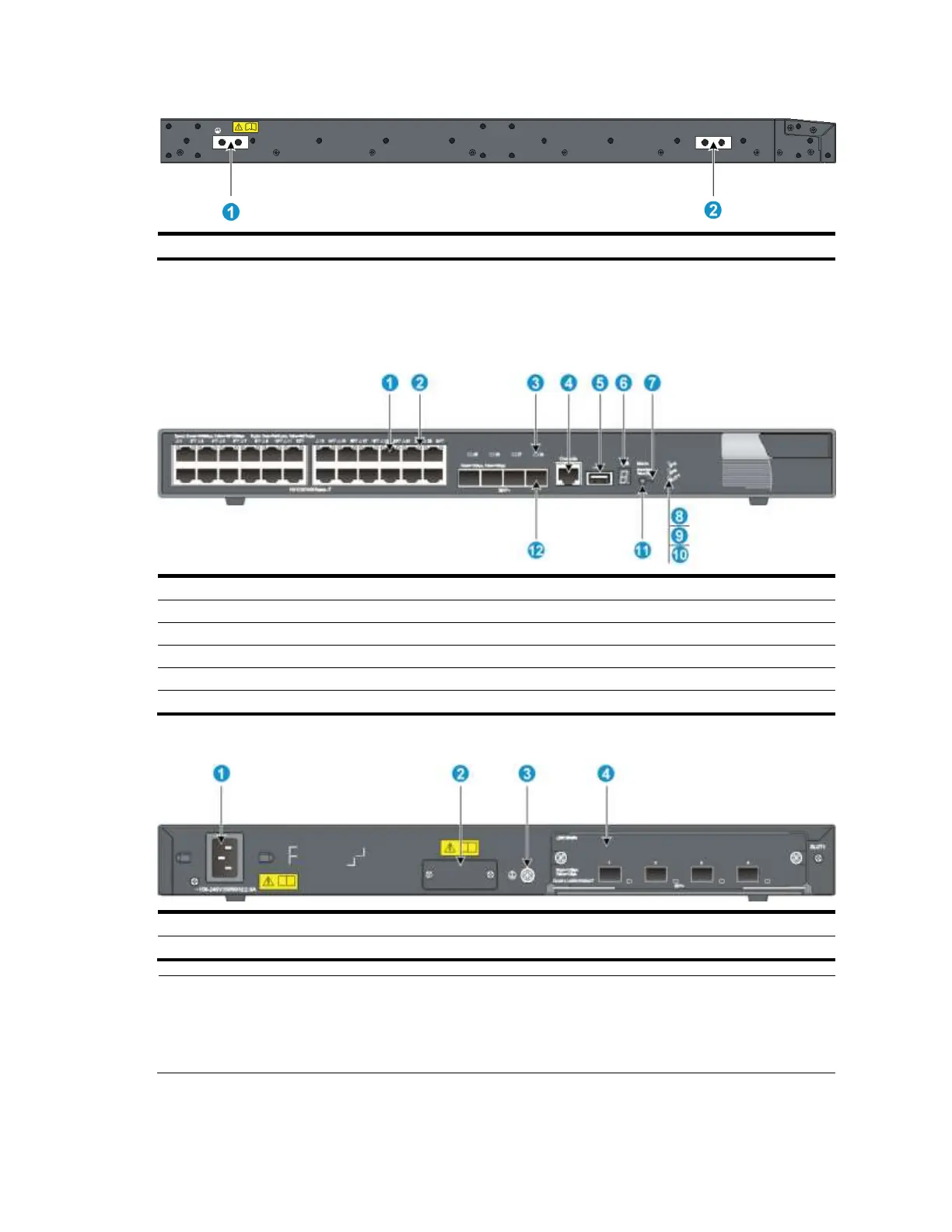

Figure 79 Left side panel
(1) Primary grounding point
(2) Auxiliary grounding point 1
A5800-24G/A5800-24G TAA panel views
Figure 80 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) SFP+ port LED
(4) Console port
(5) USB port
(6) Seven-segment LED
(7) Port mode LED
(8) System status LED (SYS)
(9) RPS status LED (RPS)
(10) Interface card status LED (SLOT1)
(11) Port LED mode switching button
(12) SFP+ port
Figure 81 Rear panel
(1) AC-input power receptacle
(2) RPS receptacle
(3) Grounding screw
(4) Expansion interface card slot
NOTE:
 The A5800-24G and A5800-24G TAA switches come with the expansion interface card slot covered by a filler
panel. In this figure, an LSW1SP4P0 interface card is installed in the slot.
 These two switches also come with the RPS receptacle covered by a protective cover.
