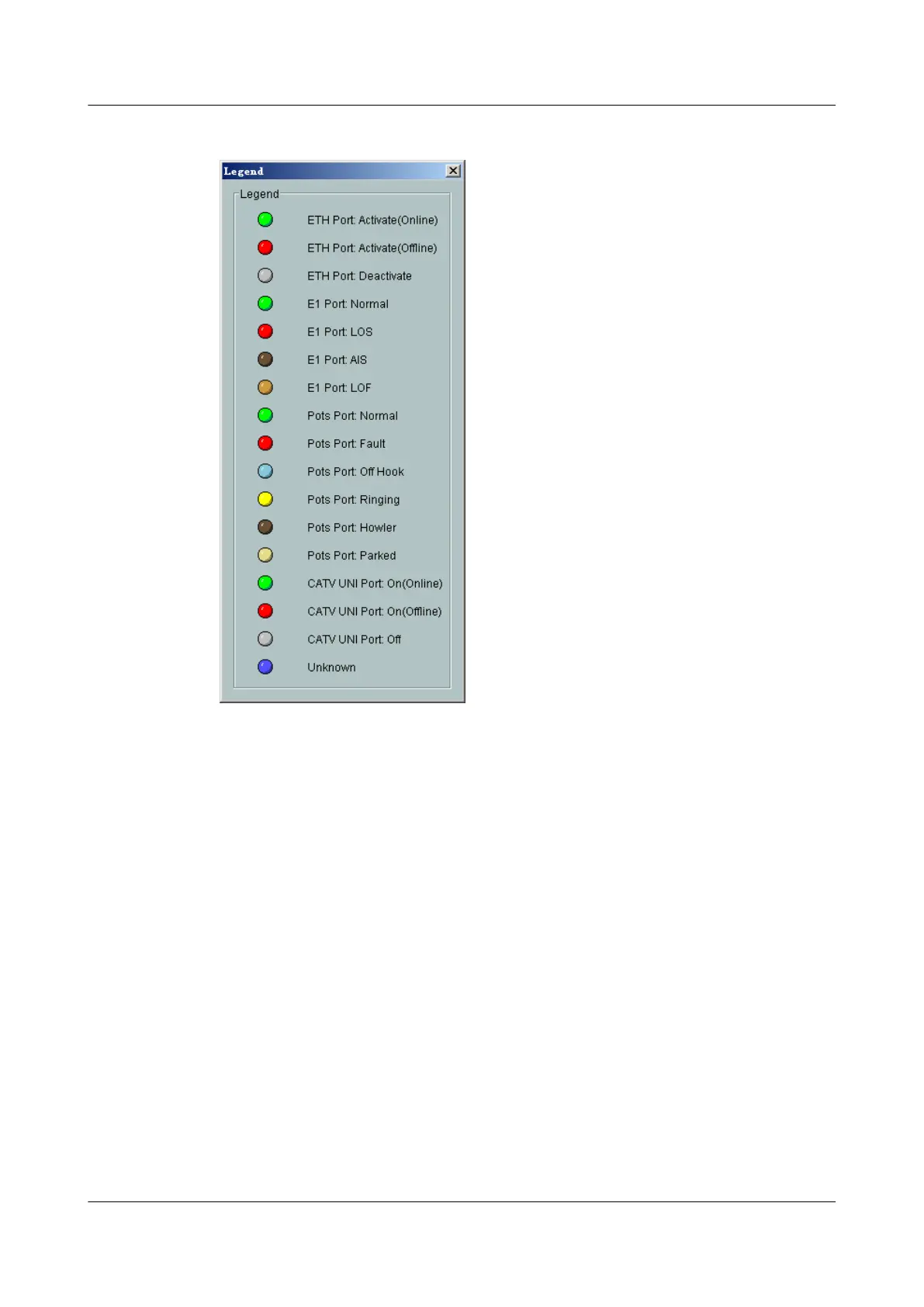

Figure 4-9 Querying the status legends of a POTS port
----End
4.5.3 Querying the Status of a VoIP User
This topic describes how to verify VoIP service status by querying registration and calling states
of the VoIP user on the NMS.
Prerequisite
l The user is a user with the operator authority or higher.
l The OLT and the NMS communicate with each other properly.
l The NMS is able to discover an online ONT and VoIP service parameters are configured.
Procedure
Step 1 In the Physical Map navigation tree on the Main Topology tab page, double-click the target
OLT, or select the target OLT, right-click, and choose NE Explorer.
Step 2 In the navigation tree, choose GPON > GPON Management.
Step 3 In the window on the right, choose GPON ONU.
Step 4 On the GPON ONU tab page, set the search criteria to find the GPON ONU records.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 4 Maintenance and Troubleshooting
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
288
