5.1 Status
This topic describes how to query the information about the WAN interface, VoIP interface, and
Wi-Fi port through the Web page.
5.1.1 WAN Information
In the navigation tree on the left, choose Status > WAN Information. In the pane on the right,
you can view the status of the WAN interface, mode of obtaining an IP address, IP address, and
subnet mask, as shown in Figure 5-1.

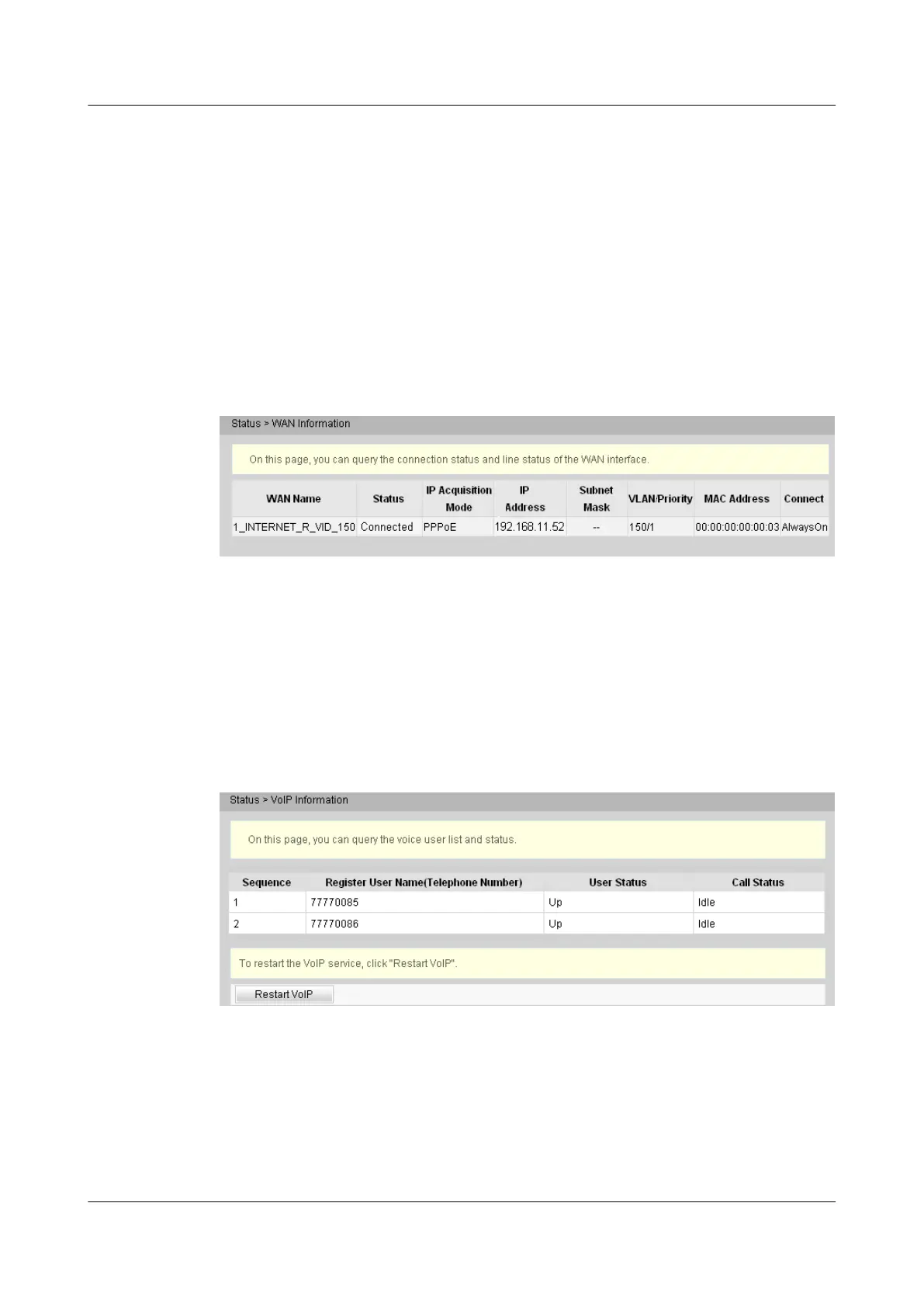

Figure 5-1 WAN Information
5.1.2 VoIP Information
In the navigation tree on the left, choose Status > VoIP Information. Then, in the pane on the
right, you can query the information such as user status and call status. The SIP configuration
page is slightly different from the H.248 configuration page, as shown in Figure 5-2 and Figure
5-3.
Figure 5-2 VoIP Information - SIP
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 5 Web Page Reference
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
303
