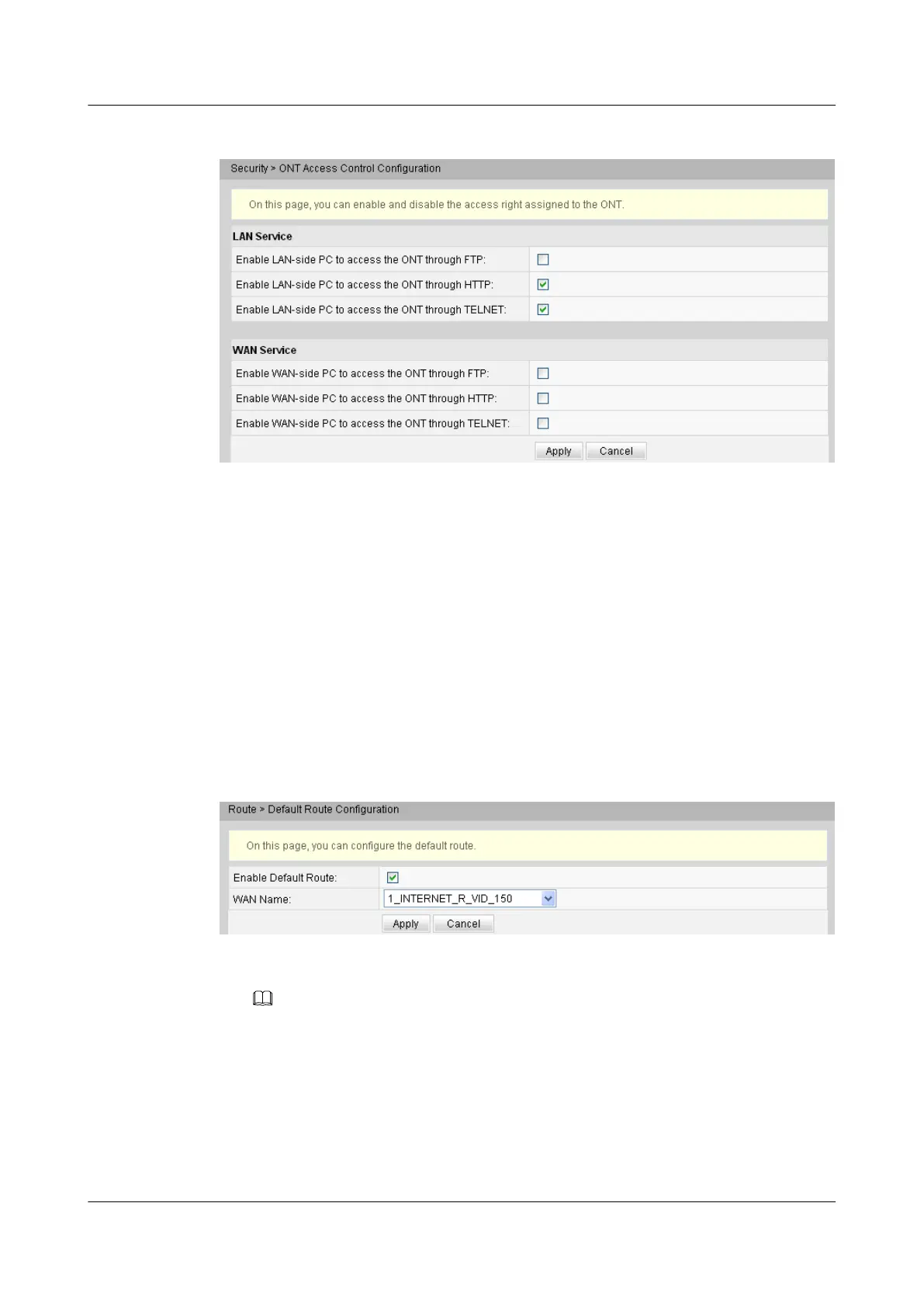

Figure 5-21 ONT Access Control Configuration
2. Click Apply to apply the configuration.
5.6 Route
This topic describes how to configure the default route and static route through the Web page.
5.6.1 Default Route Configuration
1. In the navigation tree on the left, choose Route > Default Route Configuration. In the
pane on the right, select or deselect the Default Route option button to enable or disable
the default route of the system, as shown in Figure 5-22.
Figure 5-22 Default Route Configuration
NOTE
If an ONT fails to find a matching routing entry after receiving a packet, the WAN interface specified
by the default route configuration sends the packet to a network device. Before the default route of
the system is enabled, the WAN interface must obtain the IP address. Therefore, the parameters of
the WAN interface must be correctly set. For details, see 5.2.1 WAN Configuration.
2. Click Apply to apply the configuration.
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 5 Web Page Reference
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
322
