Table 5-5 Parameters related to the IP address filter
Parameter Description
IP address filter function Indicates whether to enable the IP address filter function by
clicking OPEN or CLOSE.
Filter Mode Indicates the IP address filter rule of the blacklist or whitelist.
l Blacklist: indicates that the data meeting the rule in the filter
rule list is not allowed to pass.
l Whitelist: indicates that the data meeting the rule in the filter
rule list is allowed to pass.
The filter mode is global config mode. Thus, the blacklist and
whitelist mode cannot be used at the same time.
Protocol
Indicates the type of the protocol, which may be TCP/UDP,
TCP, UDP, ICMP, or ALL.
LAN-side IP Address Indicates the IP address on the LAN side.
LAN-side Port Indicates the port ID on the LAN side. This parameter can be
configured when Protocol is set to TCP/UDP, TCP or UDP.
WAN-side IP Address Indicates the IP address on the WAN side.
WAN-side Port Indicates the ID of the WAN side port. This parameter can be
configured when Protocol is set to TCP/UDP, TCP or UDP.
5.5.2 MAC Filter Configuration
1. In the navigation tree on the left, choose Security > MAC Filter Configuration. In the
pane on the right, after enabling MAC filter and selecting the filter mode, click New. On
the dialog box that is displayed, configure the MAC filter rule for the PC to access the
Internet, as shown in Figure 5-18.

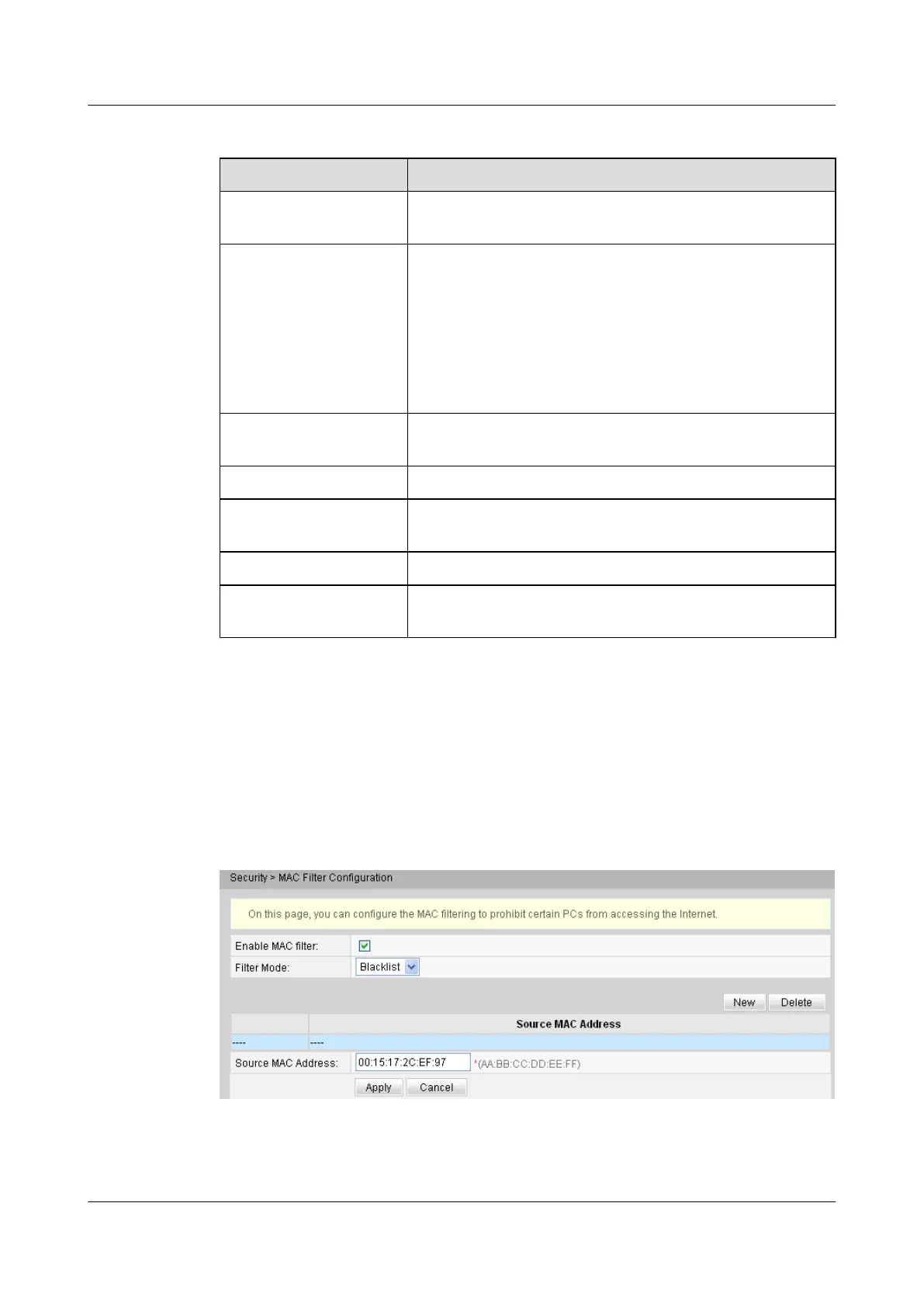

Figure 5-18 MAC Filter Configuration
2. Click Apply to apply the configuration.
