5.1.7 Battery Information
In the navigation tree on the left, choose Status > Battery Information. In the pane on the right,
you can view the connection status and available capacity of the external standby battery, as
shown in Figure 5-8.

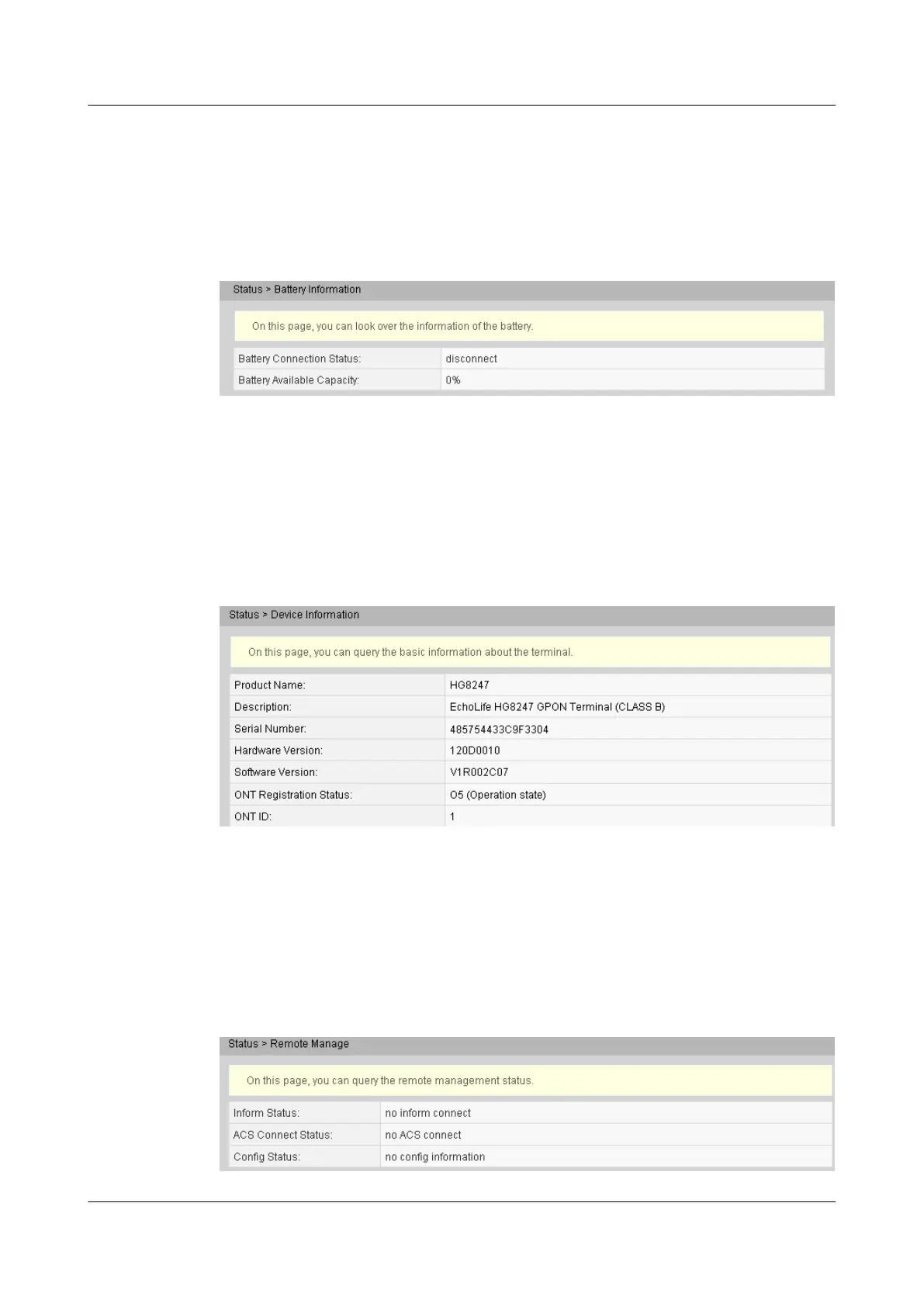

Figure 5-8 Battery Information
5.1.8 Device Information
In the navigation tree on the left, choose Status > Device Information. In the pane on the right,
you can view the product name, hardware version, and software version, as shown in Figure
5-9.
Figure 5-9 Device Information
5.1.9 Remote Management
Click the Status tab and then choose Remote Manage from the navigation tree. In the right
pane, view the remote management status and service application status, as shown in Figure
5-10.
Figure 5-10 Remote management
EchoLife HG8010/HG8110/HG8240/HG8245/HG8247/
HG8447 GPON Terminal
Service Manual 5 Web Page Reference
Issue 02 (2011-12-08) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
306
