5.2.4 Installing an M.2 FRU on the Avago SAS3004iMR PCIe
RAID Controller Card
The M.2 FRU on the Avago SAS3004iMR RAID controller card is hot swappable.
Procedure
Step 1 Determine the position of the M.2 FRU on the Avago SAS3004iMR RAID controller card.
Step 2 Install an M.2 FRU on the Avago SAS3004iMR PCIe RAID controller card.
1. Take a spare M.2 FRU out of its ESD bag.
2. Open the handle of the M.2 FRU and push the M.2 FRU into the slot of the Avago
SAS3004iMR RAID control card. See (1) in Figure 5-5.
3. Close the handle of the M.2 FRU. See (2) in Figure 5-5.

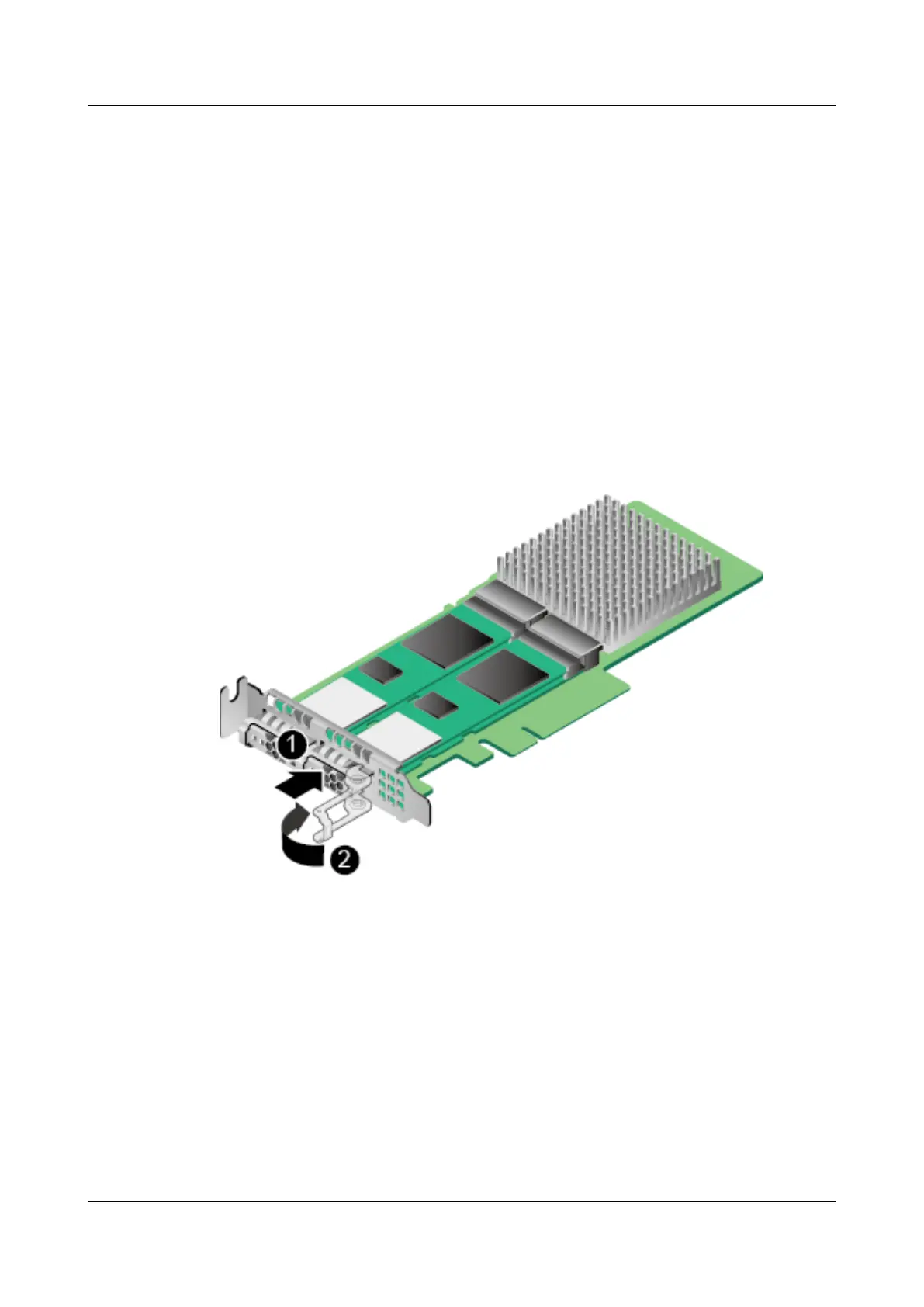

Figure 5-5 Installing an M.2 FRU
----End
5.2.5 Installing the Supercapacitor
Procedure
Step 1 Power off the compute node.
For details, see 3.1 Power-Off Procedure.
Step 2 Remove the compute node.
For details, see 3.3 Removing a CH121 V5.
Step 3 Place the compute node on the ESD workstation.
FusionServer Pro CH121 V5 Compute Node
User Guide
5 Optional Part Installation
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 98
