Huawei FusionServer Pro CH121 V5 User Manual

1.2 Physical Structure

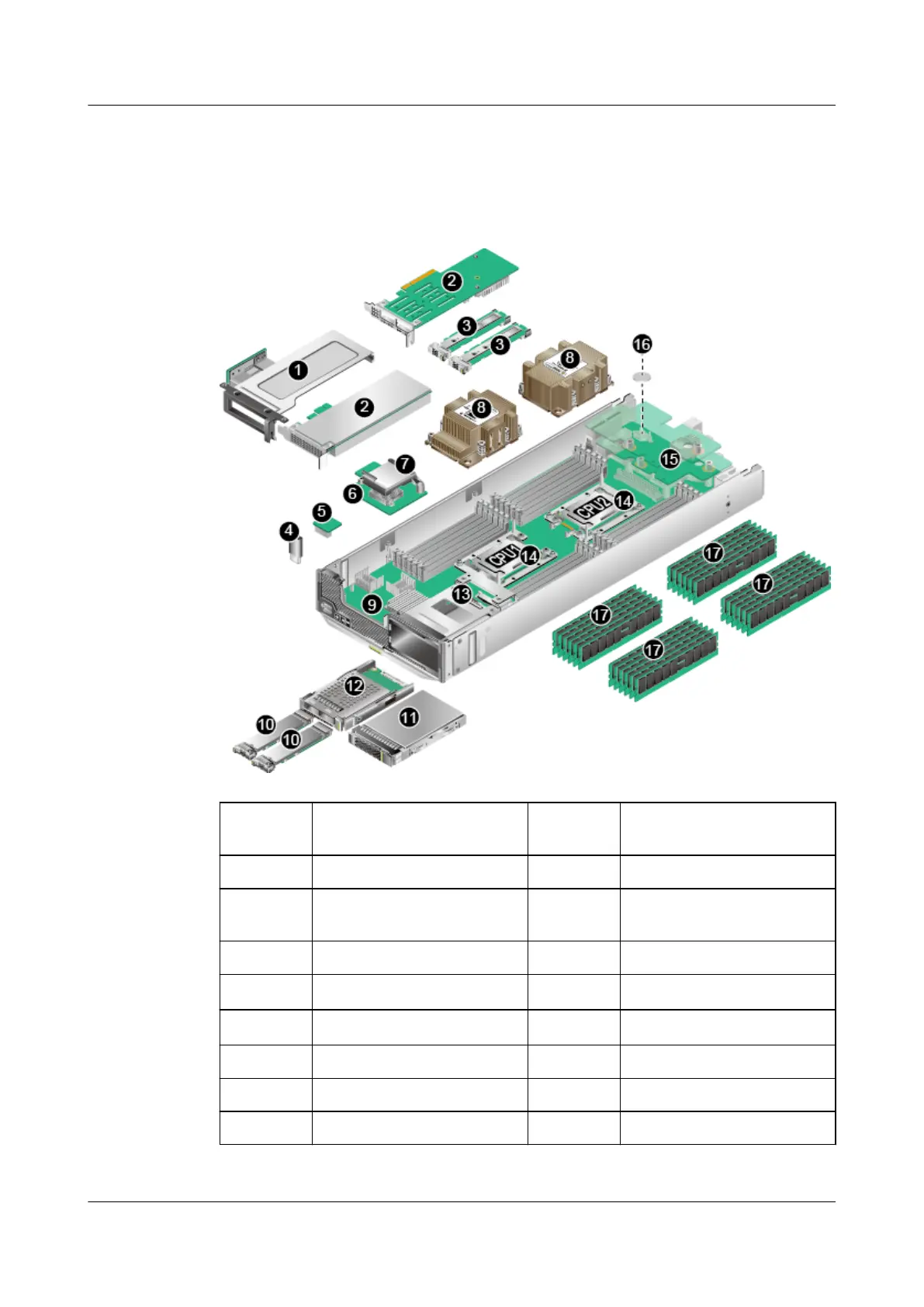

Figure 1-2 CH121 V5 physical structure
1 (Optional) HHHL PCIe riser
module
2 (Optional) HHHL PCIe card
3 (Optional) M.2 SSDs 4 (Optional) USB flash drive
5 (Optional) TPM 6 Screw-in RAID controller
card
7 (Optional) Supercapacitor 8 Heat sinks
9 Mainboard 10
(Optional) M.2 FRUs
b
11
Drives
a
12
(Optional) M.2 adapter
b
13 Drive cage 14 Processors
15 Mezzanine card 16 BIOS battery
17 Memory modules - -
FusionServer Pro CH121 V5 Compute Node
User Guide
1 Overview
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 3
