Huawei FusionServer Pro CH121 V5 User Manual

1 Slide-out label plate (with an
SN label)
2 PCIe panel
3 Ejector release button 4 Ejector lever
5
2.5" drive
a
6 Model
7 M.2 FRU 8 M.2 adapter
9
M.2 module
b
- -
l a: The drive slots support 2.5-inch SAS/SATA/NVMe drives and M.2 modules and
mixed configuration of them.
l b: An M.2 module is a 2.5-inch drive module that consists of one M.2 adapter and two
M.2 FRUs.
2.1.2 Indicators and Buttons
Positions

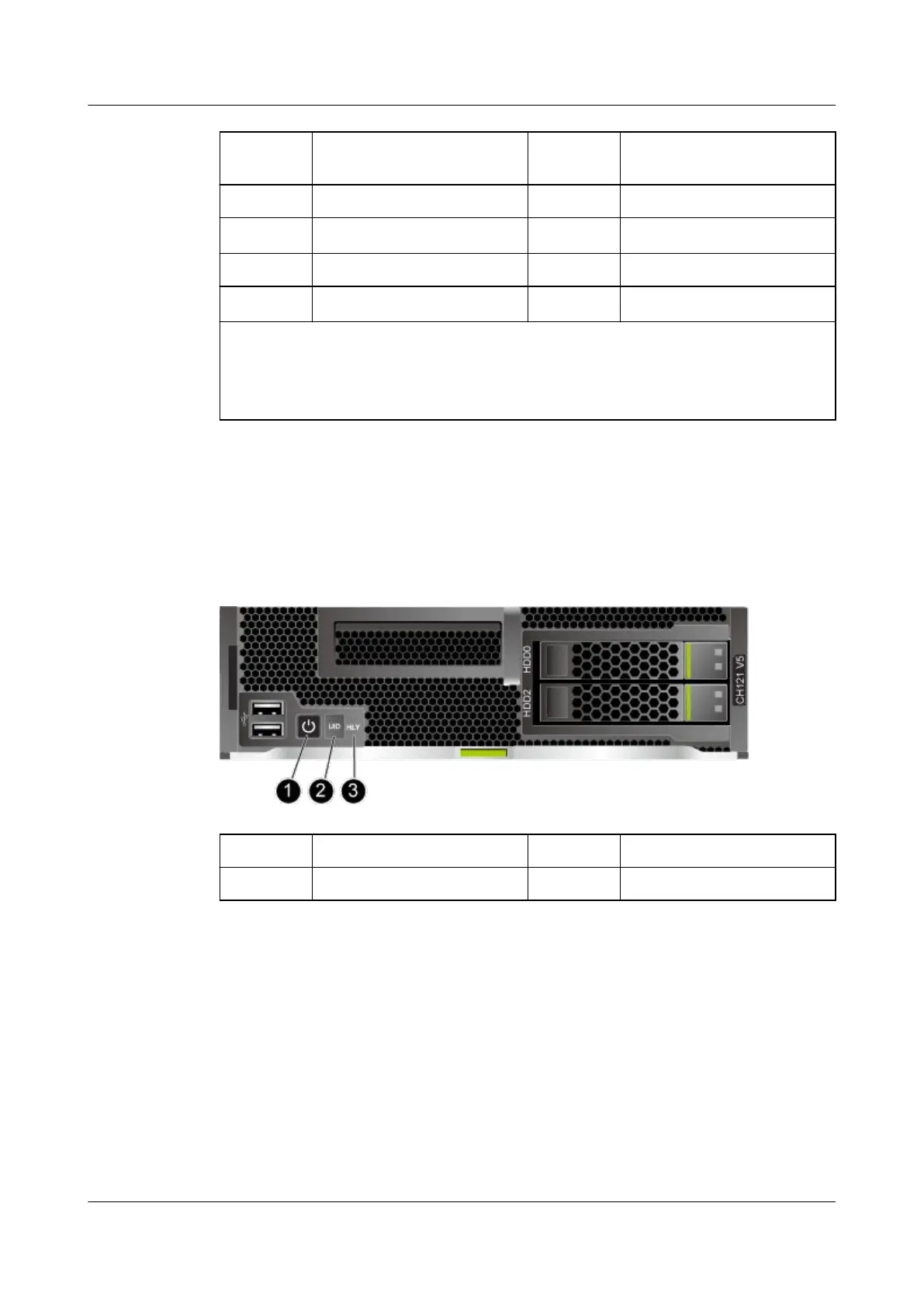

Figure 2-2 Indicators and buttons on the front panel
1
Power button/indicator 2 UID button/indicator
3 Health status indicator - -
FusionServer Pro CH121 V5 Compute Node
User Guide
2 Hardware Description
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 6

Huawei FusionServer Pro CH121 V5 Specifications

General

Brand	Huawei
Model	FusionServer Pro CH121 V5
Category	Server
Language	English
