Process

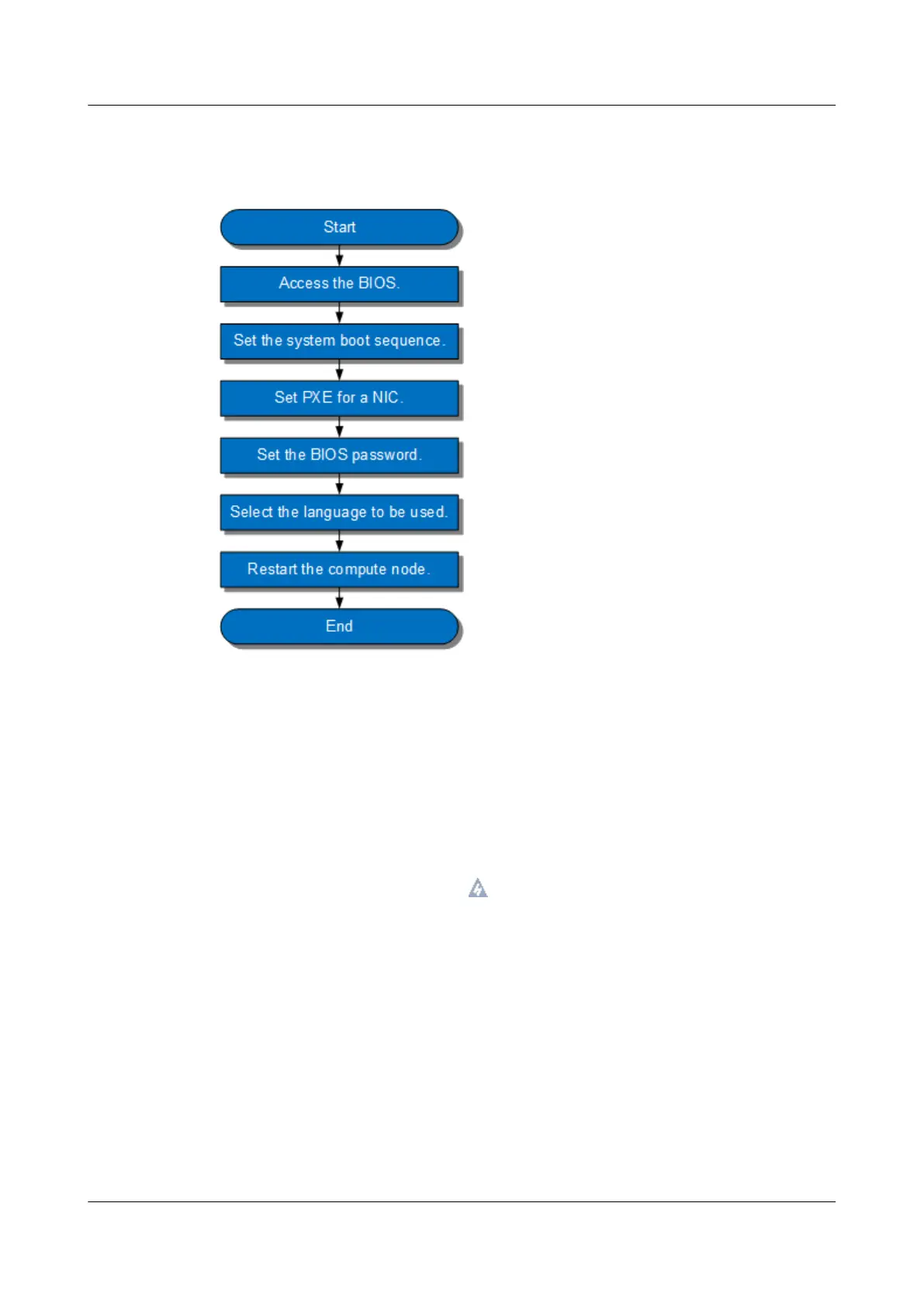

Figure 4-12 Process for configuring the BIOS
4.3.7.1 Entering the BIOS
4.3.7.1.1 Entering the BIOS (Skylake)
Procedure
Step 1 Log in to the desktop of the compute node.
For details, see 12.7 Logging In to the Desktop of a Server.
Step 2 On the Remote Virtual Console, click on the menu bar.
Step 3 Select Reset or Forced System Reset.
"Are you sure to perform this operation?" is displayed.
Step 4 Click Yes.
The compute node is restarted.
Step 5 During the restart, press Delete or F4 when the information shown in Figure 4-13 is
displayed.
FusionServer Pro CH121 V5 Compute Node
User Guide
4 Installation and Configuration
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 84
