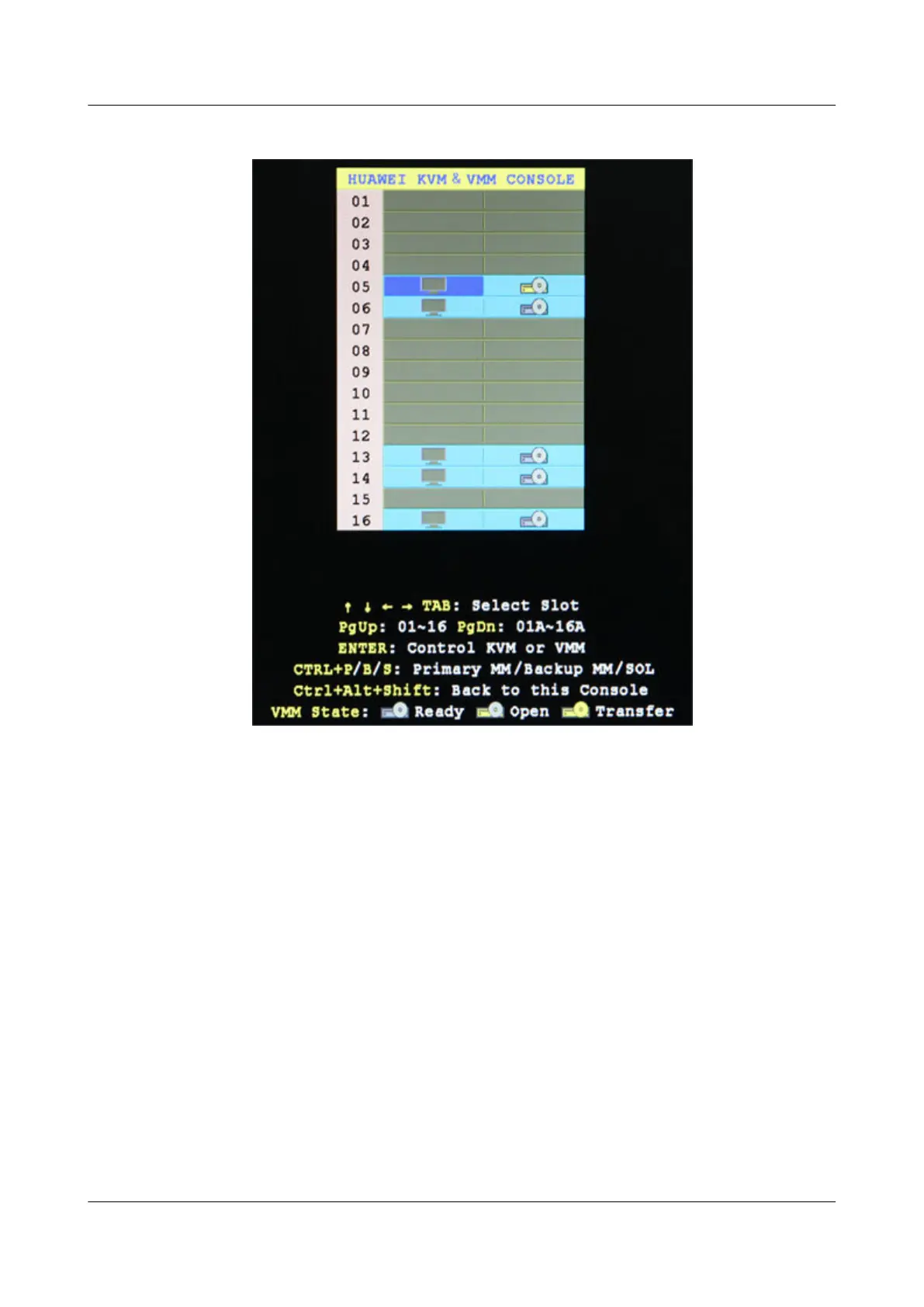

Figure 12-8 Main screen of the KVM
Step 2 Log in to the MM910 CLI.
l Press Ctrl+P to access the CLI of the primary MM910.
l Press Ctrl+B to access the CLI of the backup MM910.
Step 3 Type the MM910 user name and password, and press Enter.
----End
12.6.2 Logging In to the Operating System of a Compute Node
Scenarios
Log in to the operating system of a compute node using the local KVM.
Procedure
Step 1 Connect the KVM to the MM910.
1. Connect the mouse and keyboard to the two USB ports on the MM910.
2. Use a VGA cable to connect the KVM monitor to the VGA port on the MM910.
The main screen of the KVM is displayed.
FusionServer Pro CH121 V5 Compute Node
User Guide
12 Common Operations
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 147
