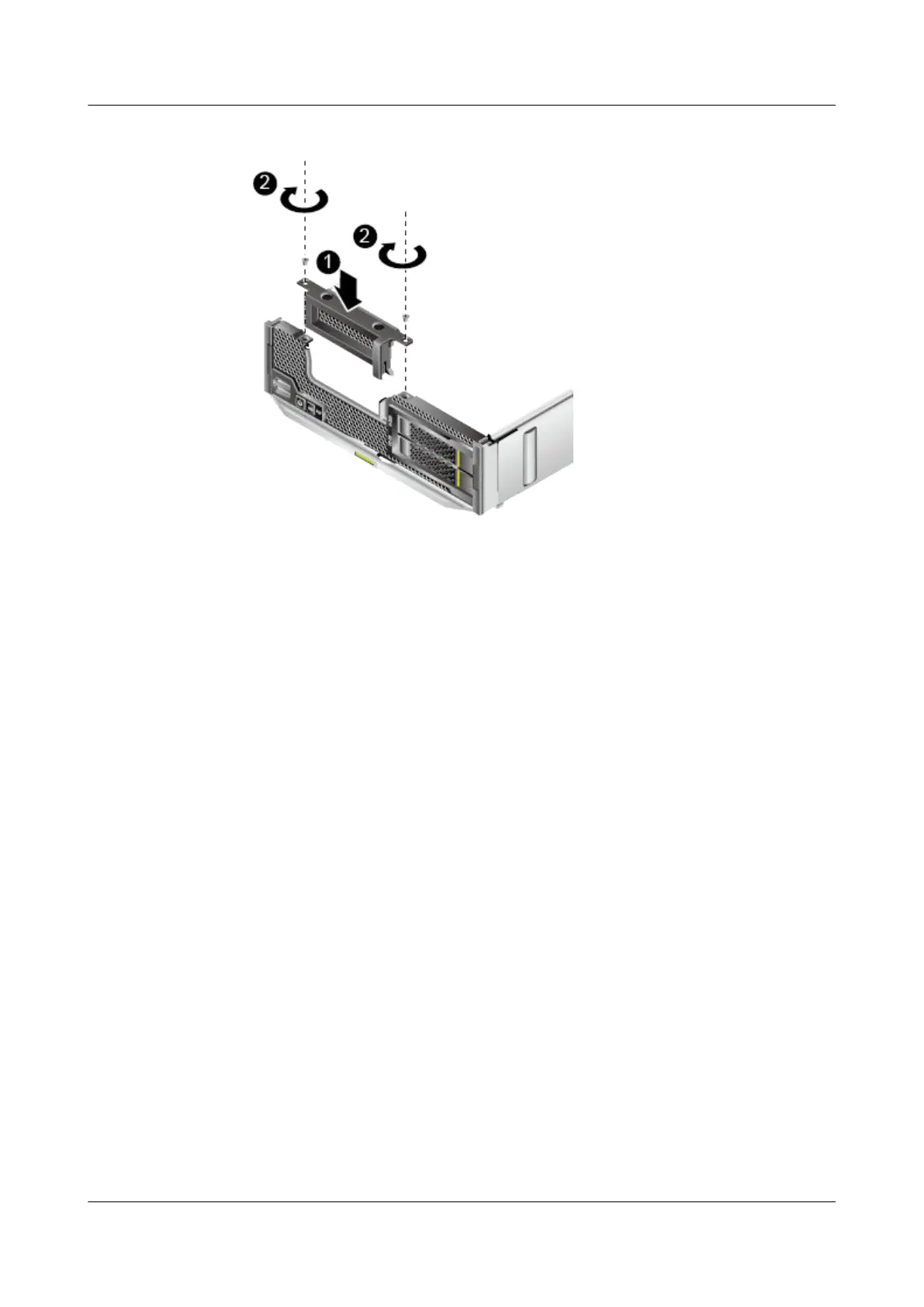

Figure 3-16 Installing a PCIe card panel
Step 10 Install the cover.
For details, see 3.6 Installing the Cover.
Step 11 Install the compute node.
For details, see 3.4 Installing a CH121 V5.
Step 12 Power on the compute node.
For details, see 3.2 Power-On Procedure.
----End
3.11 Removing a PCIe Card
Procedure
Step 1 Power off the compute node.
For details, see 3.1 Power-Off Procedure.
Step 2 Remove the compute node.
For details, see 3.3 Removing a CH121 V5.
Step 3 Place the compute node on the ESD workstation.
Step 4 Remove the cover.
For details, see 3.5 Removing the Cover.
Step 5 Remove the air duct.
For details, see 3.7 Removing the Air Ducts.
FusionServer Pro CH121 V5 Compute Node
User Guide
3 Basic Operations
Issue 06 (2019-08-10) Copyright © Huawei Technologies Co., Ltd. 41
