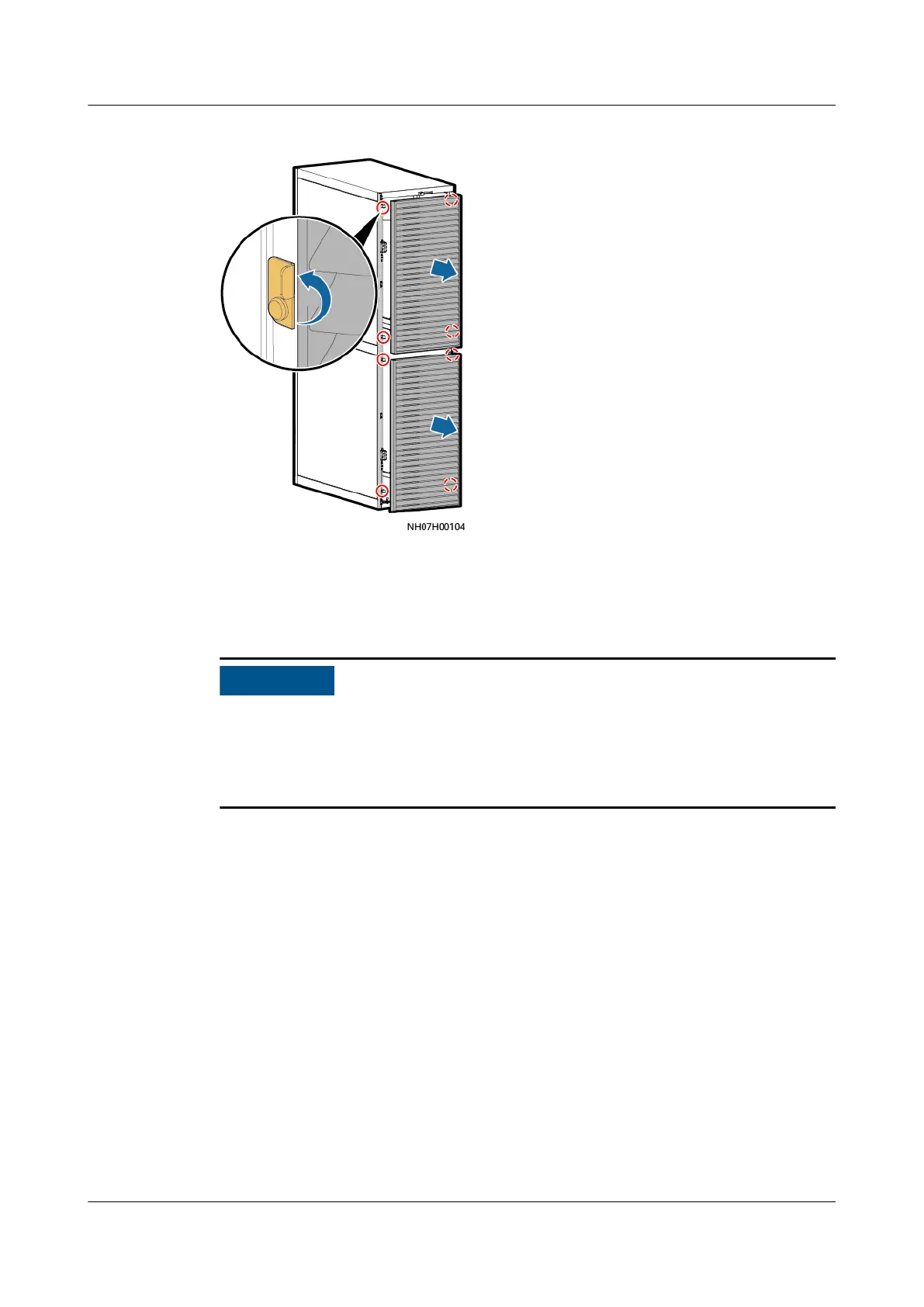

Figure 11-1 Removing an air lter
Step 2 Draw out the air lter.
Step 3 Remove the lower air lter in the same way.
Step 4 Install new air
lters in an inverse order.
Note the following during the reinstallation:
● Install air lters as instructed by the labels thereon and avoid reverse
installation.
● Check that the pressure tube is properly connected.
Step 5 Choose Maint > Performance Maint on the home screen and clear the total
runtime of the air lter.
----End
11.2 Replacing an Indoor Fan
Prerequisites
● An indoor fan needs to be replaced.
● A spare indoor fan of the same model is available and functional.
● Tools: protective gloves, Phillips screwdriver, diagonal pliers, cable tie
Context
The indoor fan can be maintained only from the front door. Replacing fan 9 is
used as an example.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 11 Parts Replacement
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 249
