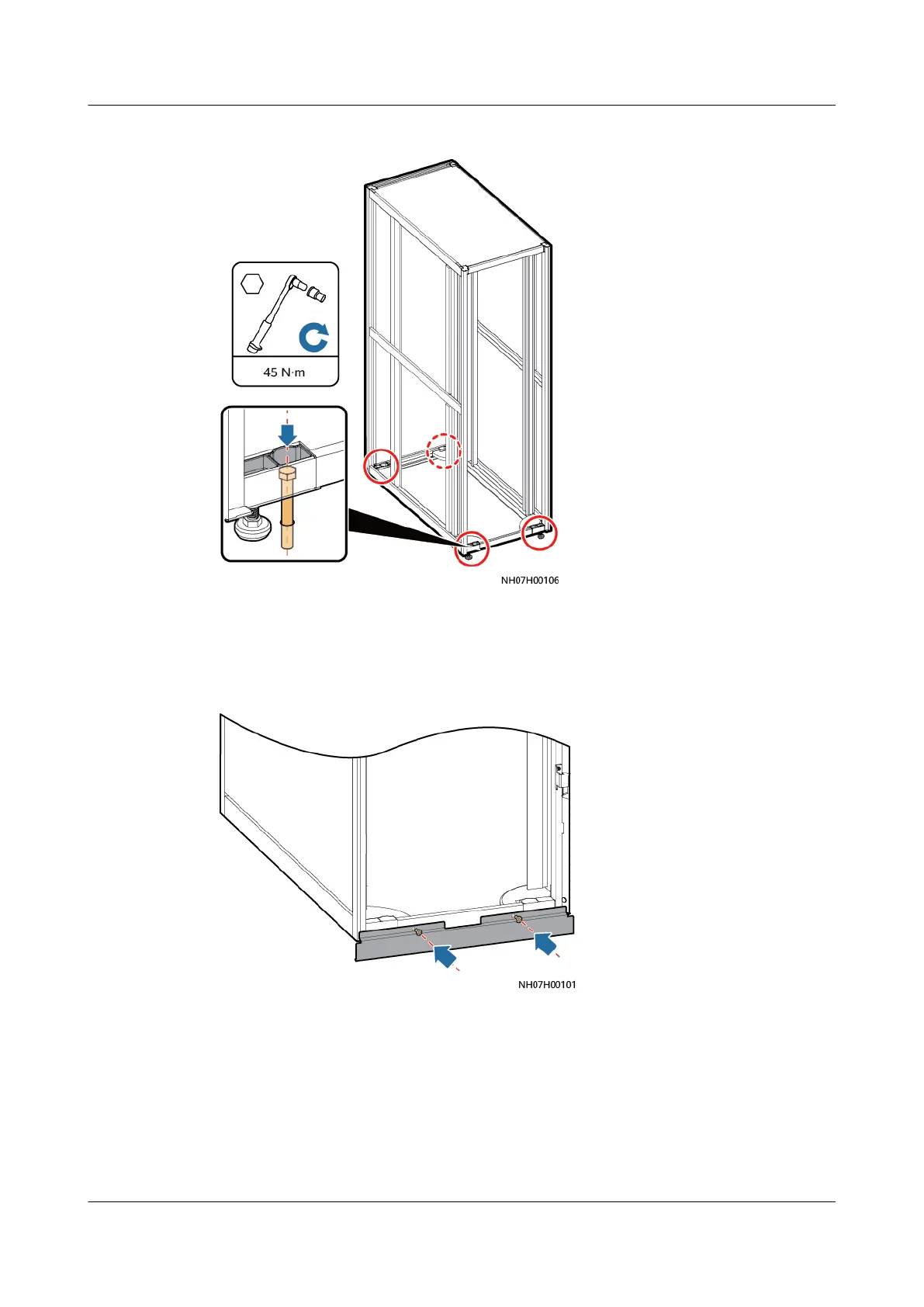

Figure 4-33 Securing a cabinet
Step 7 Install sealing plates to the front and rear doors. (Sealing plates are not in the
ttings bag of the smart cooling product but supplied by the smart module or
purchased independently.)
Figure 4-34 Installing sealing plates
----End
4.4.5 (Optional) Installing the Top Frame
Bottom Pipe Routing
Step 1 Remove the two M5x10 tapping screws that secure the front door sealing plate on
the top of the cabinet, as shown by (1) in Figure 4-35.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 65
