Huawei NetCol5000-A050 User Manual

B Indoor Unit Cooling Component Layout

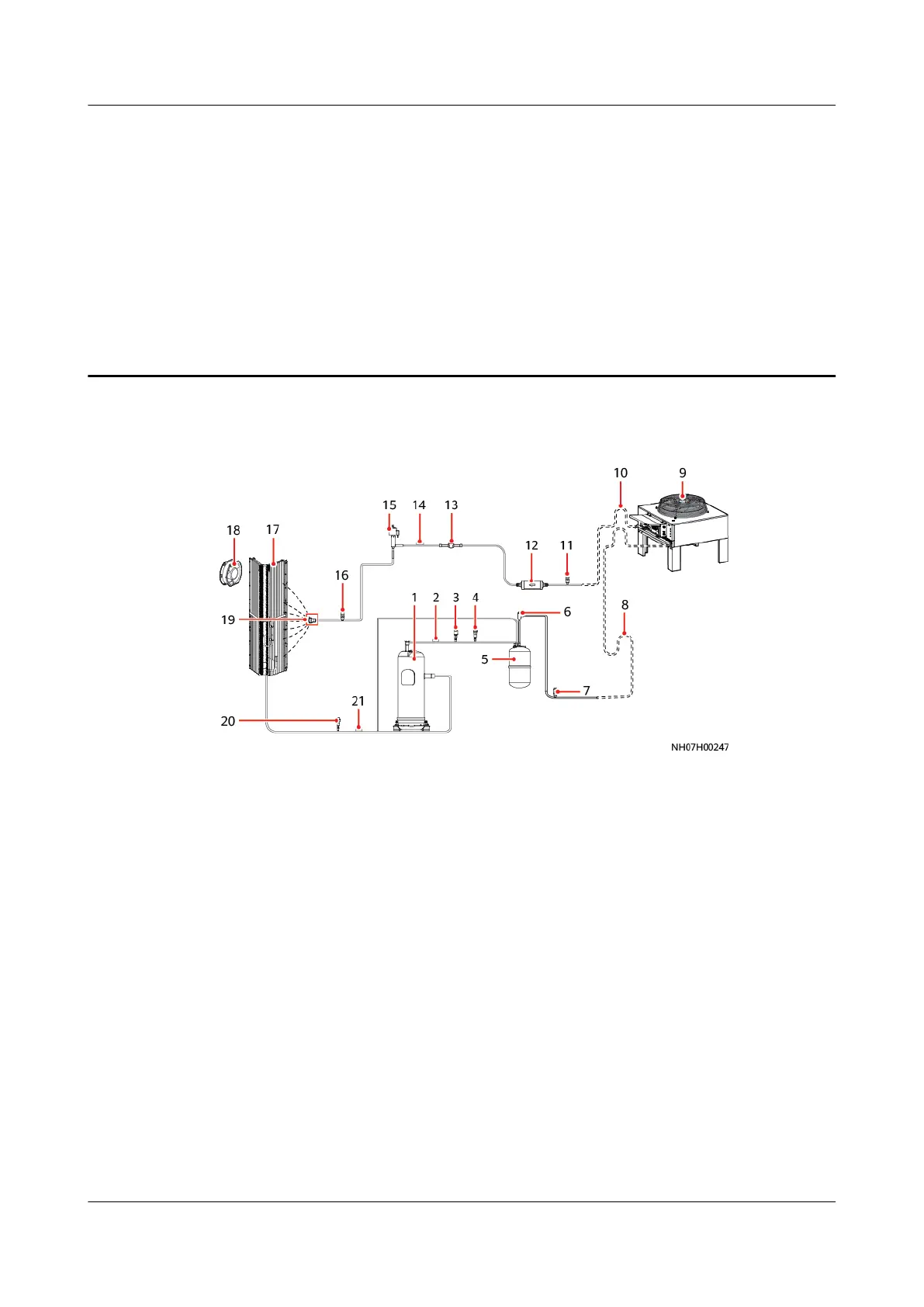

Figure B-1 Cooling component layout
(1) Compressor
(2) Discharge temperature
sensor
(3) High pressure switch
(4) High pressure sensor (5) Oil separator (6) Check valve
(7) Exhaust pipe needle valve (8) Oil trap (9) Outdoor unit
(10) Inverted U-shaped trap (11) Liquid pipe needle valve (12) Dryer lter
(13) Sight glass (14) Liquid pipe temperature
sensor
(15) Electronic expansion valve
(16) Low-pressure needle valve (17) Evaporator (18) Indoor fan
(19) Distributor (20) Low pressure sensor (21) Suction temperature
sensor
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual B Indoor Unit Cooling Component Layout
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 313
