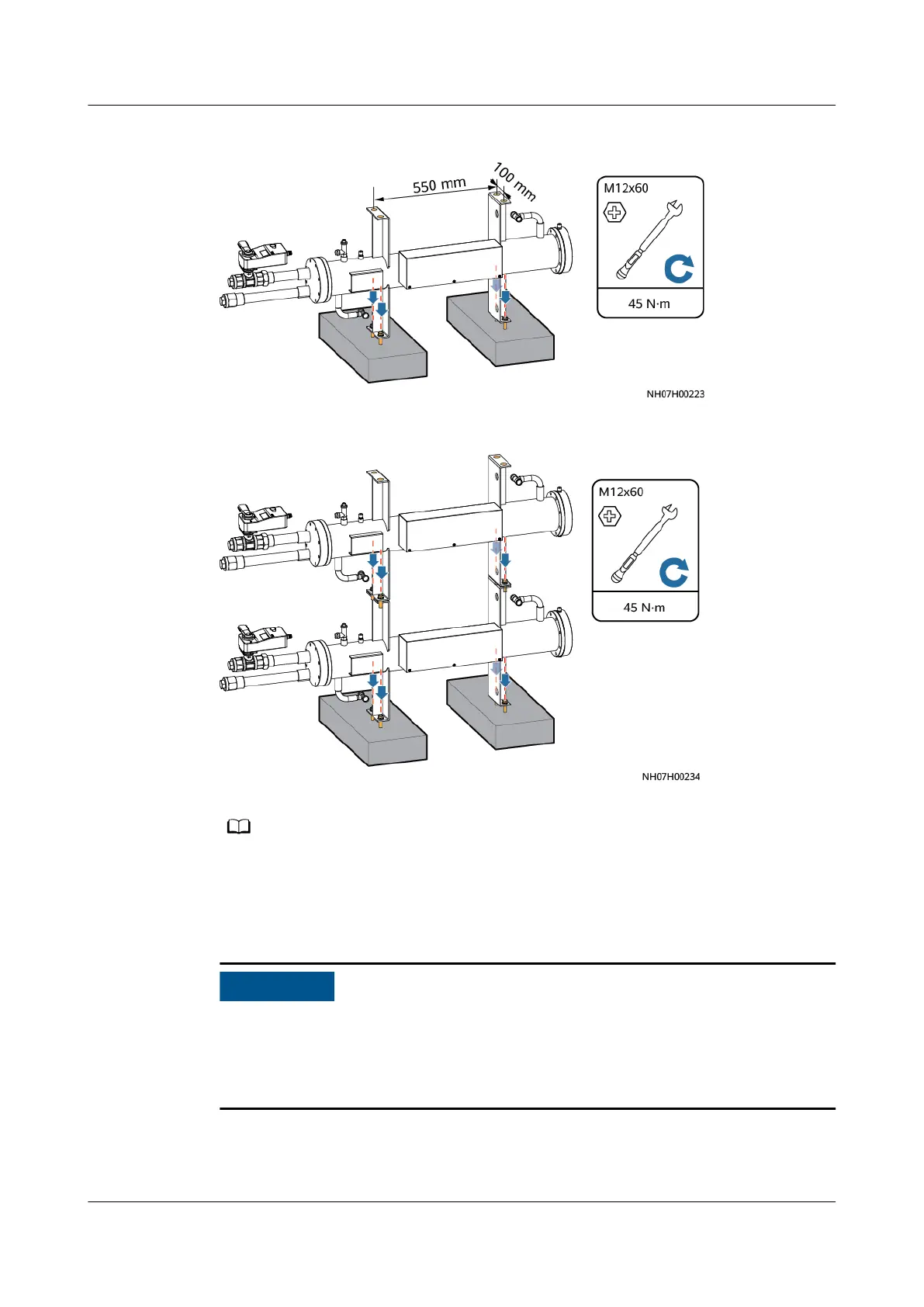

Figure 4-58 Securing a water cooling module (single)
Figure 4-59 Securing water cooling modules (stacking)
The maximum number of stacked devices is 4.
4.8 Installing Pipes
● The thickness of the thermal insulation foam for refrigerant pipes and water
pipes should be greater than or equal to 9.2 mm.
● When procuring water pipes, ensure that the water pipes covered with thermal
insulation foam can be routed through holes of the bottom panel or top panel.
