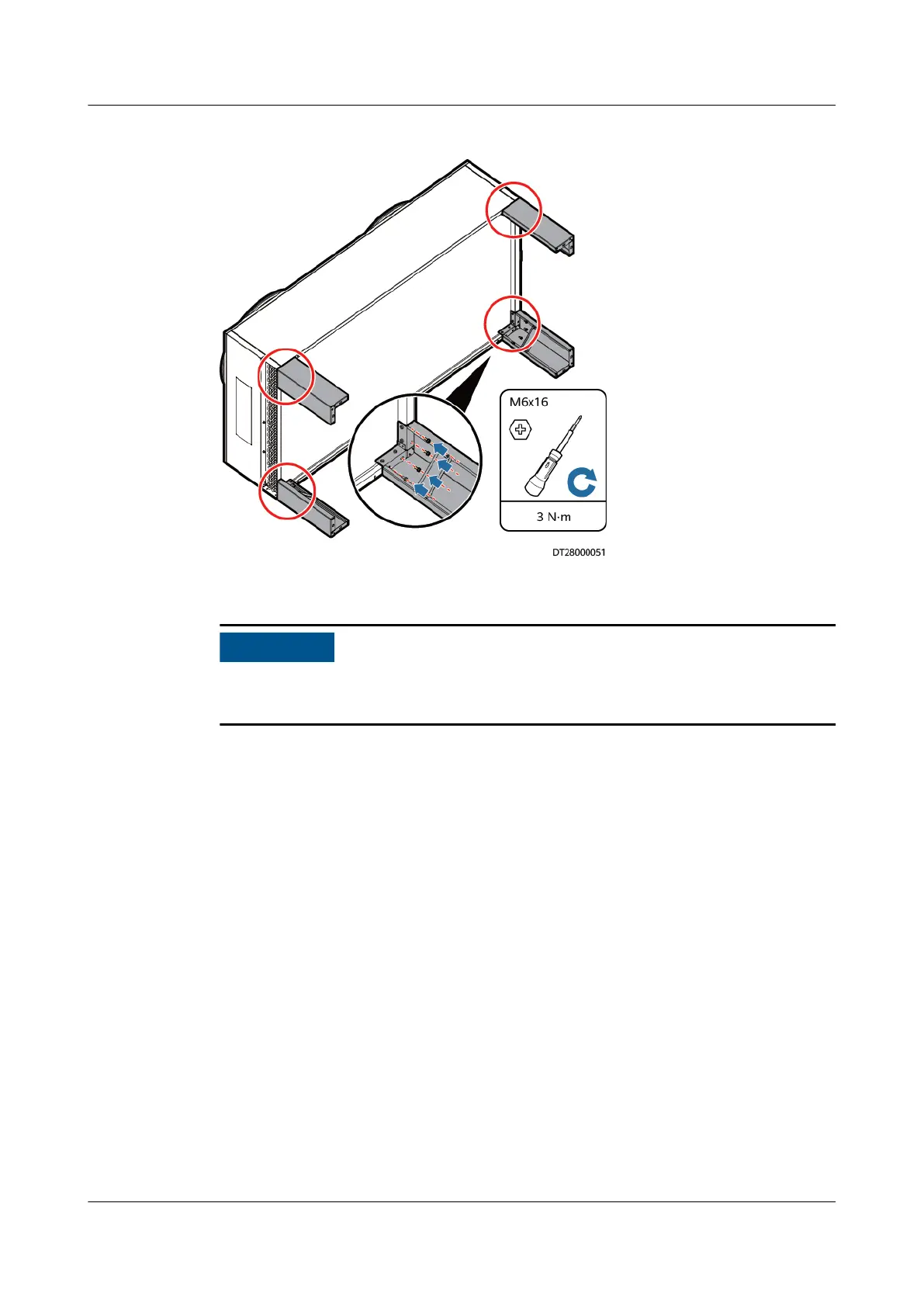

Figure 4-41 Installing legs
Step 3 Put the four legs to the ground to lay the outdoor unit horizontally.
When turning the outdoor unit, do not hold it by using two legs. Otherwise, the
outdoor unit is damaged.
Step 4 Use two M8x80 stainless steel expansion bolts to secure each of the four legs of
the outdoor unit to the concrete platform or base.
----End
4.5.3.2 Vertical Installation Scenario (NetCol500-A060/NetCol500-A080)
The NetCol500-A080 is used as an example. For details about NetCol500-A060
operations, refer to this section.
Securing an Outdoor Unit to the Ground
Step 1 Secure an outdoor unit to the ground through the four bracket angles by using
M8x80 stainless steel expansion bolts on the side panel, as shown in Figure 4-42.
NetCol5000-A050 In-row Air Cooled Smart Cooling
Product
User Manual 4 Installation
Issue 08 (2021-09-17) Copyright © Huawei Technologies Co., Ltd. 71
