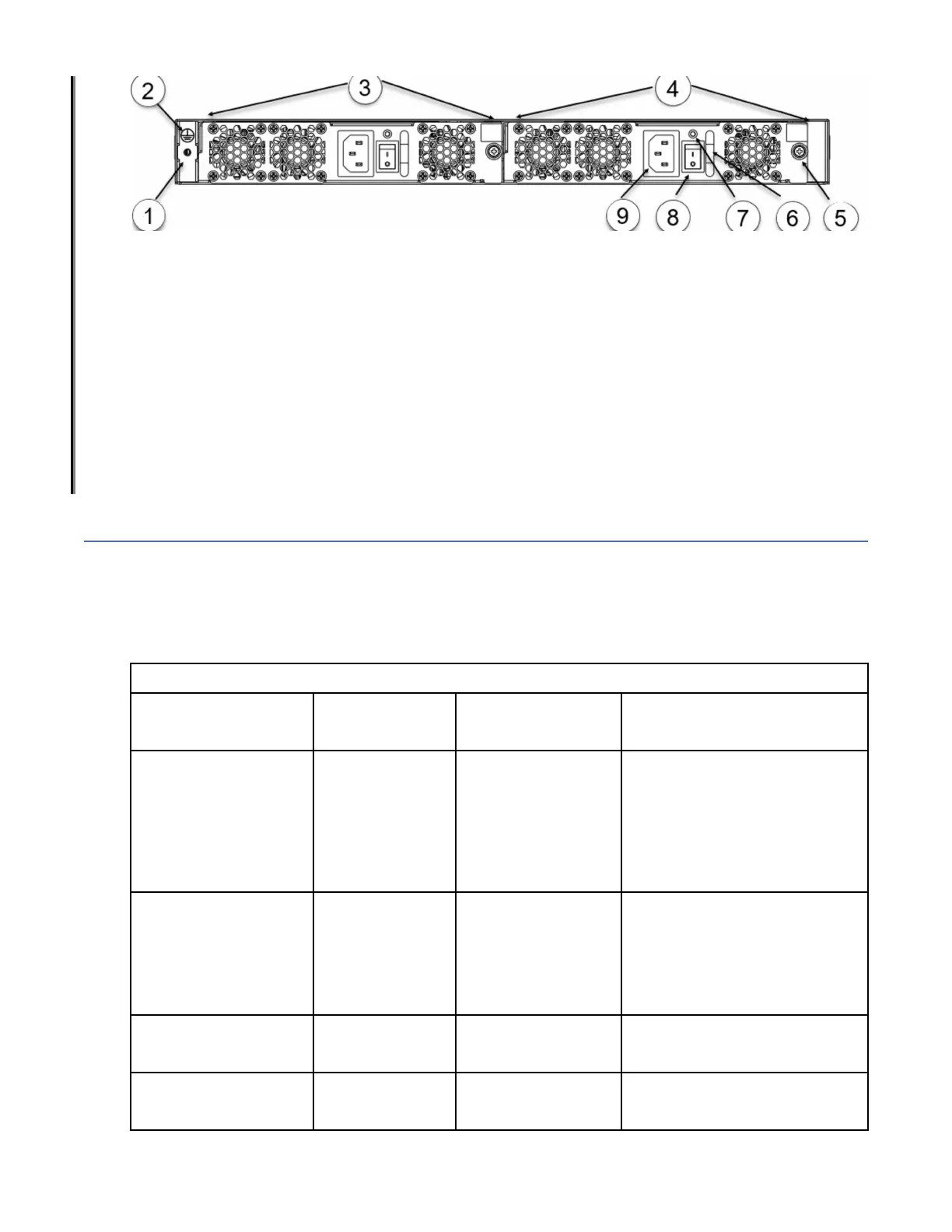

Figure 3. Nonport-side view with AC power supply and fan assembly units
1. #6-32 for screw mounting of the ground cable
2. Ground marking
3. Power Supply and Fan Assembly 2
4. Power Supply and Fan Assembly 1
5. Captive Screw
6. Handle
7. Power Supply and Fan Assembly Status LED
8. Power-On/Off Switch
9. Power Supply Receptacle
Device management options
You can use the management functions built into the device to monitor the fabric topology, port status,
physical status, and other information to help you analyze switch performance and to accelerate system
debugging. The device automatically performs power-on self-test (POST) each time it is turned on. Any
errors are recorded in the RASlog messages.
You can manage the device using any of the management options listed in the following table.
Table 2. Management options for the device
Management tool Out-of-band
support
In-band support Reference documents
Command line interface
(CLI)
Up to two admin
sessions and four user
sessions
simultaneously.
Ethernet or serial
connection
IP over Fibre Channel Fabric OS Administrator's Guide
Fabric OS Command Reference
EZSwitchSetup
EZSwitchSetup helps to
complete the basic
conguration for single-
switch setup.
Ethernet or serial
connection
IP over Fibre Channel EZSwitchSetup Software
Installation Guide for IBM
SAN64B-6
EZSwitchSetup Administrator's
Guide
Web Tools Ethernet or serial
connection
IP over Fibre Channel Web Tools Administrator's Guide
Standard SNMP
applications
Ethernet or serial
connection
IP over Fibre Channel Fabric OS MIB Reference
Chapter 1. Introducing the SAN64B-6 5
