• #2 Phillips torque screwdriver
• 1/4-inch slotted-blade torque screwdriver
CAUTION: Use the screws specied in the procedure. Using longer screws
can damage the device.
Parts List
The following parts are provided with the Universal Two-Post Rack Kit.

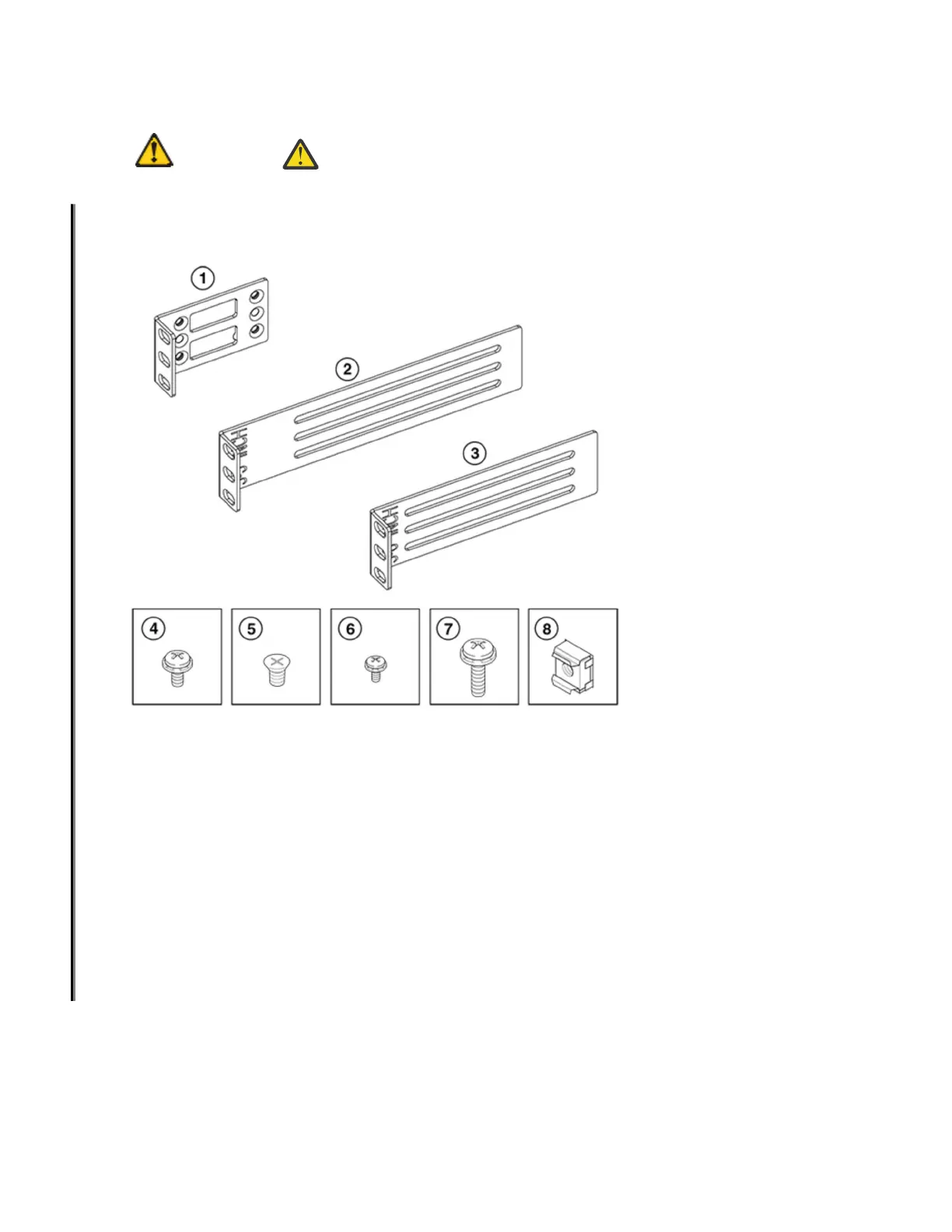

Figure 16. Universal Two-Post Rack Kit Parts
1. Front Brackets (2)
2. Rear Brackets, 5–6-in. Post (2)
3. Rear Brackets, 3–5-in. Post (2)
4. Screw, 8-32 x 5/16-in. Panhead Phillips (8)
5. Screw, 8-32 x 5/16-in. Flathead Phillips (16)
6. Screw, 6-32 x 1/4-in. Panhead Phillips (8)
7. Screw, 10-32 x 5/8-in. Panhead Phillips (8)
8. Retainer Nut, 10-32 (8)
Ensure that the items listed and illustrated in the preceding gure are included in the kit.
Note: Not all parts may be used with certain installations depending on the device type.
Flush-front mounting
Observe the following notes when using this procedure:
• The device must be turned off and disconnected from the fabric during this procedure.
• The illustrations in this document show a 1U device, but the instructions are the same for a 2U device.
