Procedure
1. Position the device in the rack, as shown in Figure 12 on page 22, providing temporary support under
the device until the rail kit is secured to the ra
2. Attach the right front bracket to the right rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
3. Attach the left front bracket to the left rear rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).

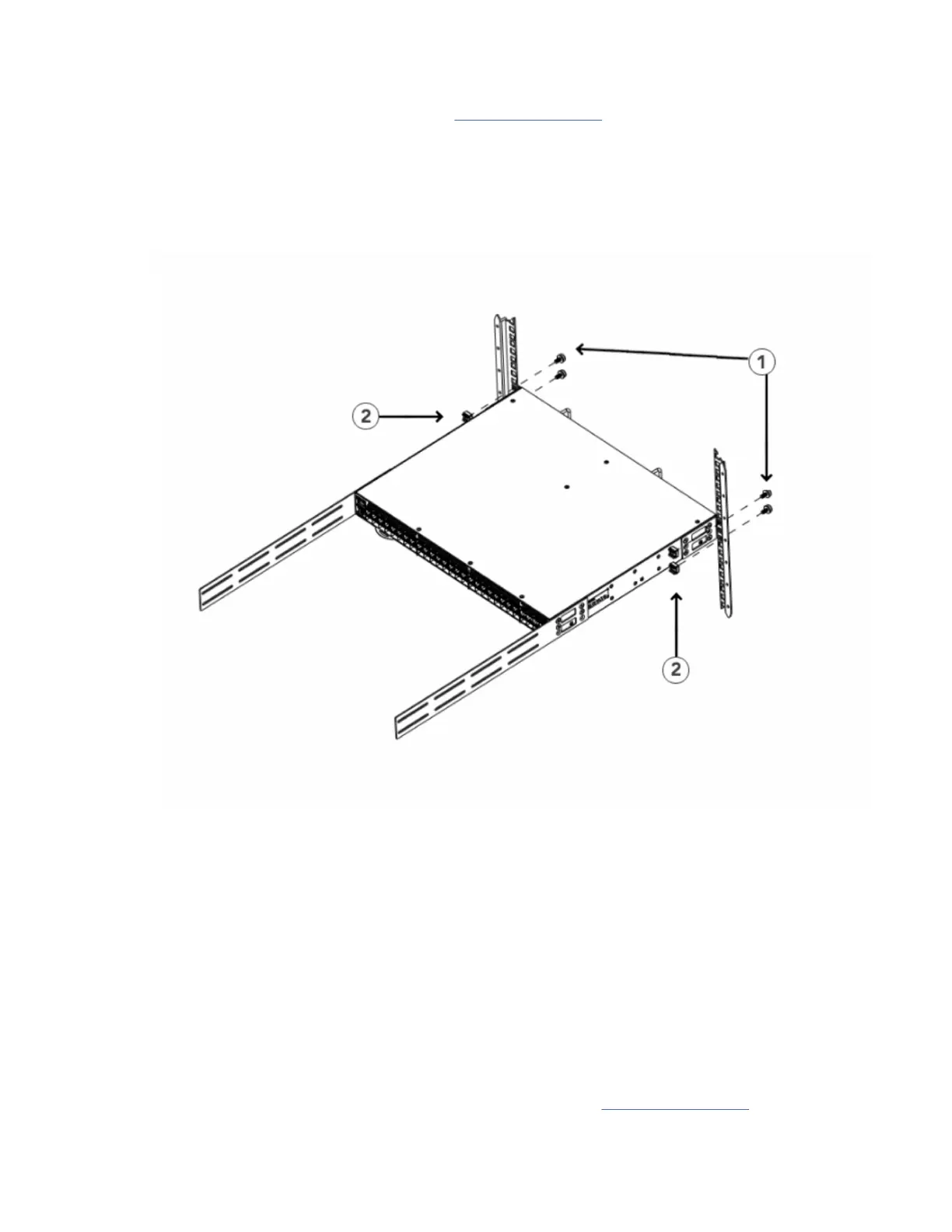

Figure 12. Positioning the device in the rack
1 - Screws, 10-32 x 5/8-in., panhead Phillips
2 - Retainer nuts, 10-32
Attaching the rear brackets to the extensions at the front of the device
About this task
Complete the following steps to attach the rear brackets to the extensions. There are short and long front
brackets that you can use for this step. Choose the correct bracket for the depth of your rack.
Procedure
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension, as shown in Figure 13 on page 23.
The short rear brackets are shown. Use the rst and third vertical pairs of holes for the screws.
22
IBM Storage Networking SAN64B-6: SAN64B-6 Installation, Service, and User Guide
