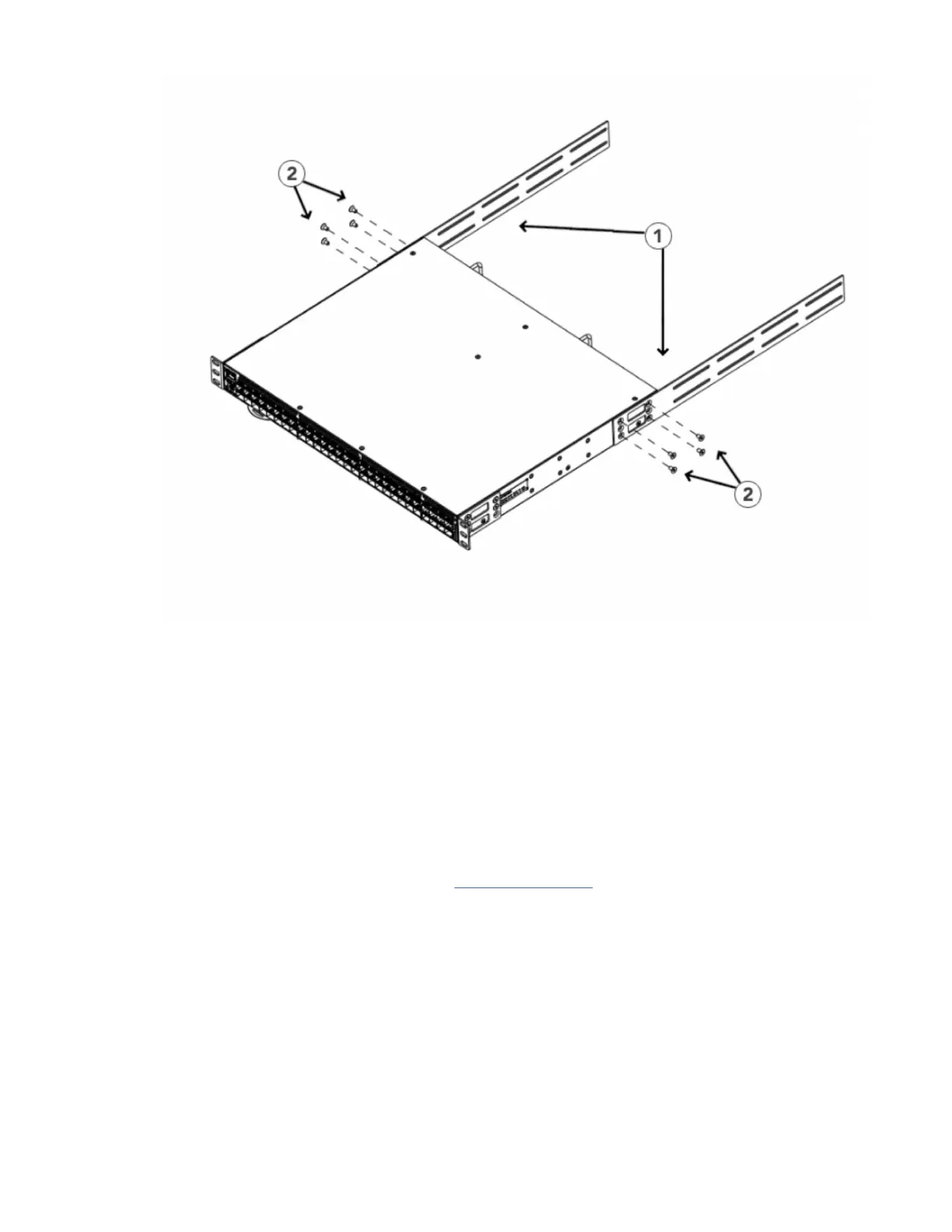

Figure 6. Attaching the extension brackets to the device
1 - Extension bracket
2 - Screws, 8-32 x 5/16-in., flathead Phillips
Installing the device in the rack
About this task
Complete the following steps to install the device in the rack.
Procedure
1. Position the device in the rack, as shown in Figure 7 on page 17, providing temporary support under
the device until the rail kit is secured to the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. panhead screws
and two retainer nuts. Use the upper and lower holes in the bracket.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. panhead screws and
two retainer nuts. Use the upper and lower holes in the bracket.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
