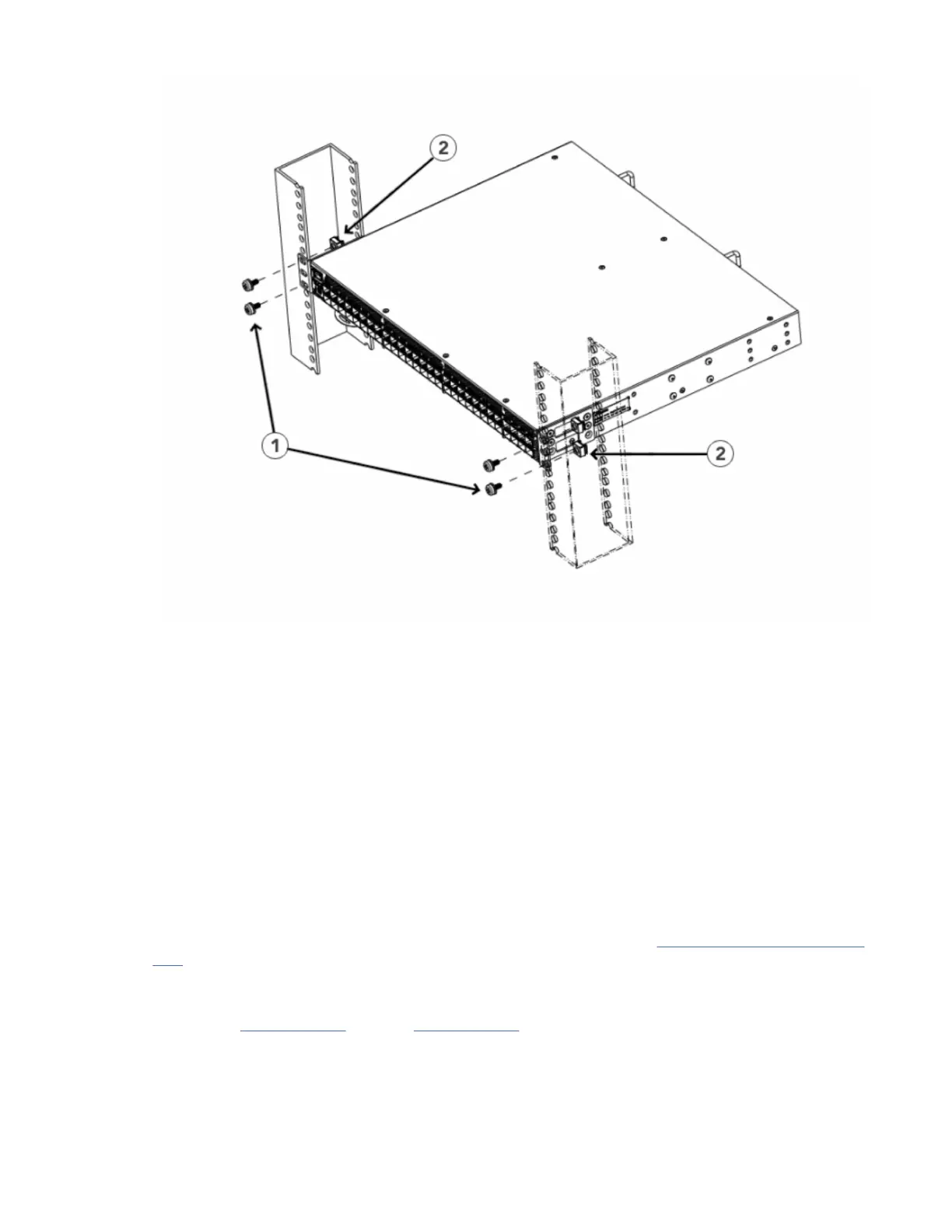

Figure 18. Attaching front brackets to a rack
1 - Screws, 10-32 x 5/8-in., panhead Phillips
2 - Retainer nuts, 10-32
Attaching the rear brackets to the rack
About this task
Complete the following steps to attach the rear brackets to the rack.
Procedure
1. Select the proper length bracket for your post width. If your posts are three to ve inches wide, use the
brackets marked 3-5 INCH. If your posts are ve to six inches wide, use the brackets marked 5-6
INCH.
2. Position the right rear bracket in the right rear of the device, as shown in Attaching rear brackets to the
rack.
3. Attach the bracket to the right rack upright using two 10-32 x 5/8-in. panhead screws and two retainer
nuts. Use the upper and lower holes in the bracket.
4. Repeat step “2” on page 29 and step “3” on page 29 to attach the left rear bracket to the left rack
upright.
5. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb. (29 cm-kg).
Chapter 3. Mounting the switch
29
