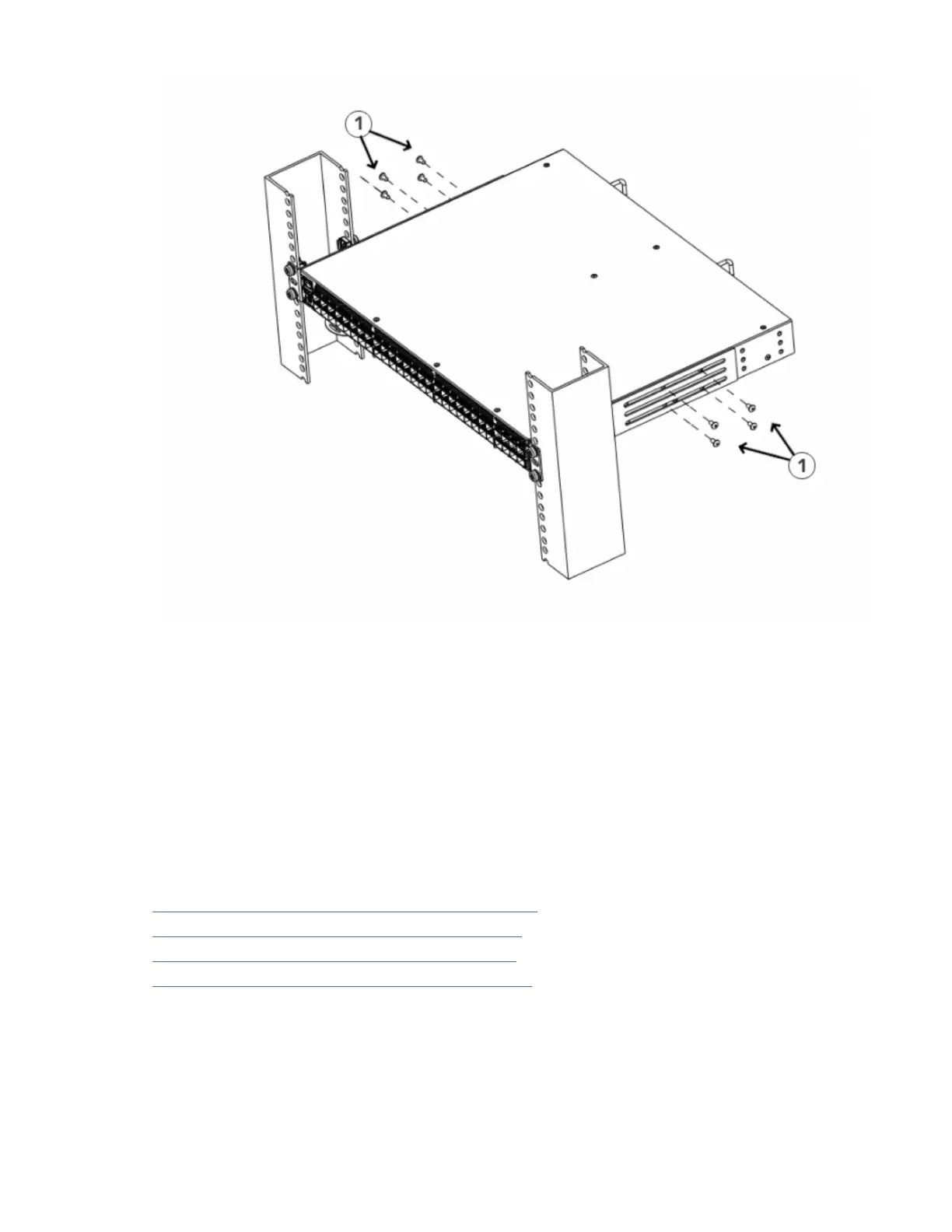

Figure 20. Attaching the rear brackets to the device
1 - Screws, 8-32 x 5/16-in., panhead Phillips
Mid-mounting
Observe the following notes when using this procedure:
• The device must be turned off and disconnected from the fabric during this procedure.
• The illustrations in this document show a 1U device, but the instructions are the same for a 2U device.
• The illustrations in the rack installation procedures are for reference only and may not show the actual
device.
Complete the following tasks to install the device in a rack:
1. “Attaching the front brackets to the device” on page 31
2. “Attaching the front brackets to the rack” on page 32
3. “Attaching the rear brackets to the rack” on page 33
4. “Attaching the rear brackets to the device” on page 34
Attaching the front brackets to the device
About this task
Complete the following steps to attach the front brackets to the device.
Chapter 3. Mounting the switch
31
