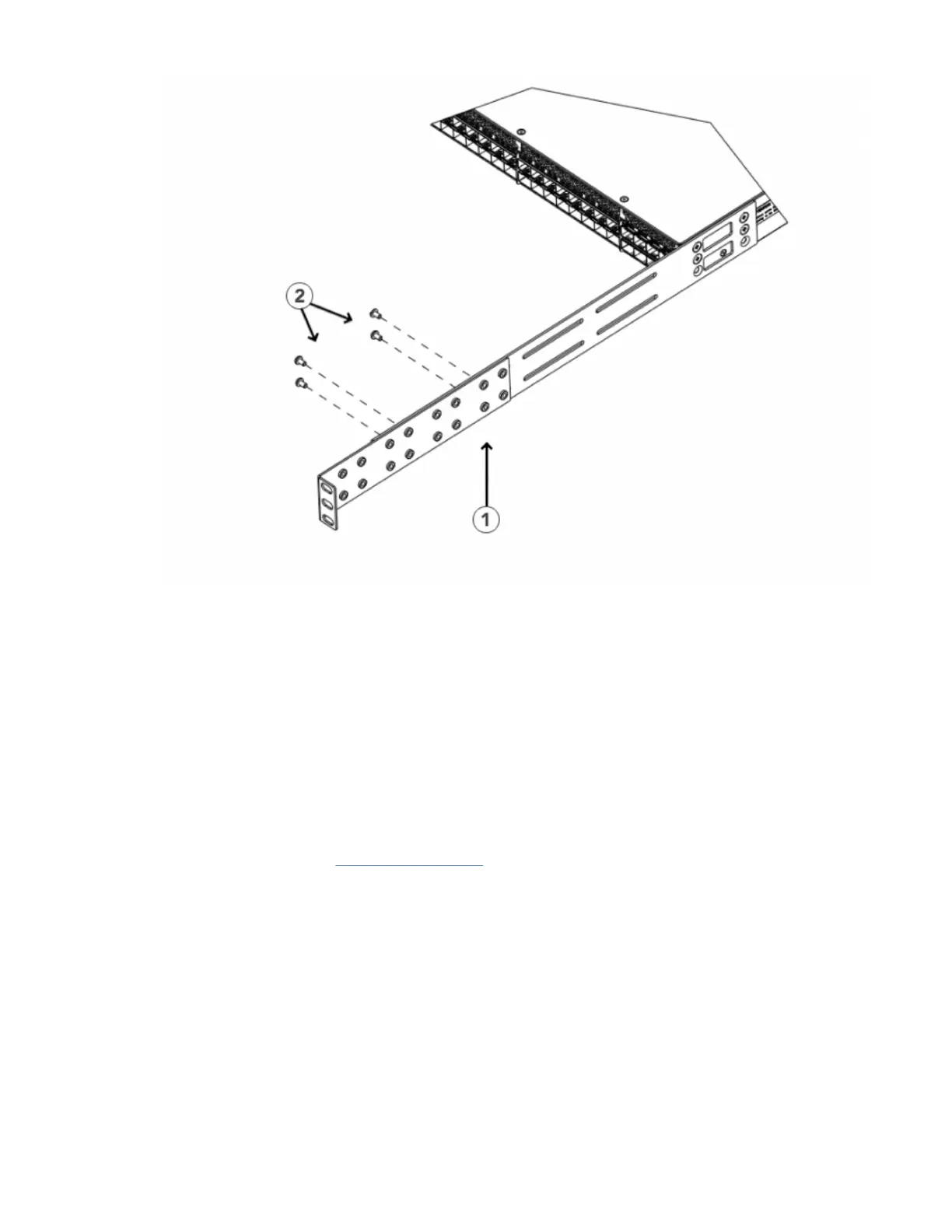

Figure 14. Attaching the short or long rear brackets to the extensions
1 - Rear brackets, short
2 - Screws, 6-32 x 1/4-in., panhead Phillips
Attaching the rear brackets to the front rack posts
About this task
Complete the following steps to attach the rear brackets to the front rack posts.
Procedure
1. Attach the right rear bracket to the right front rack post using two 10-32 x 5/8-in. screws and two
retainer nuts, as shown in Figure 15 on page 25. Use the upper and lower holes in the bracket.
2. Attach the left rear bracket to the left front rack post using two 10-32 x 5/8-in. screws and two
retainer nuts. Use the upper and lower holes in the bracket.
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
24
IBM Storage Networking SAN64B-6: SAN64B-6 Installation, Service, and User Guide
