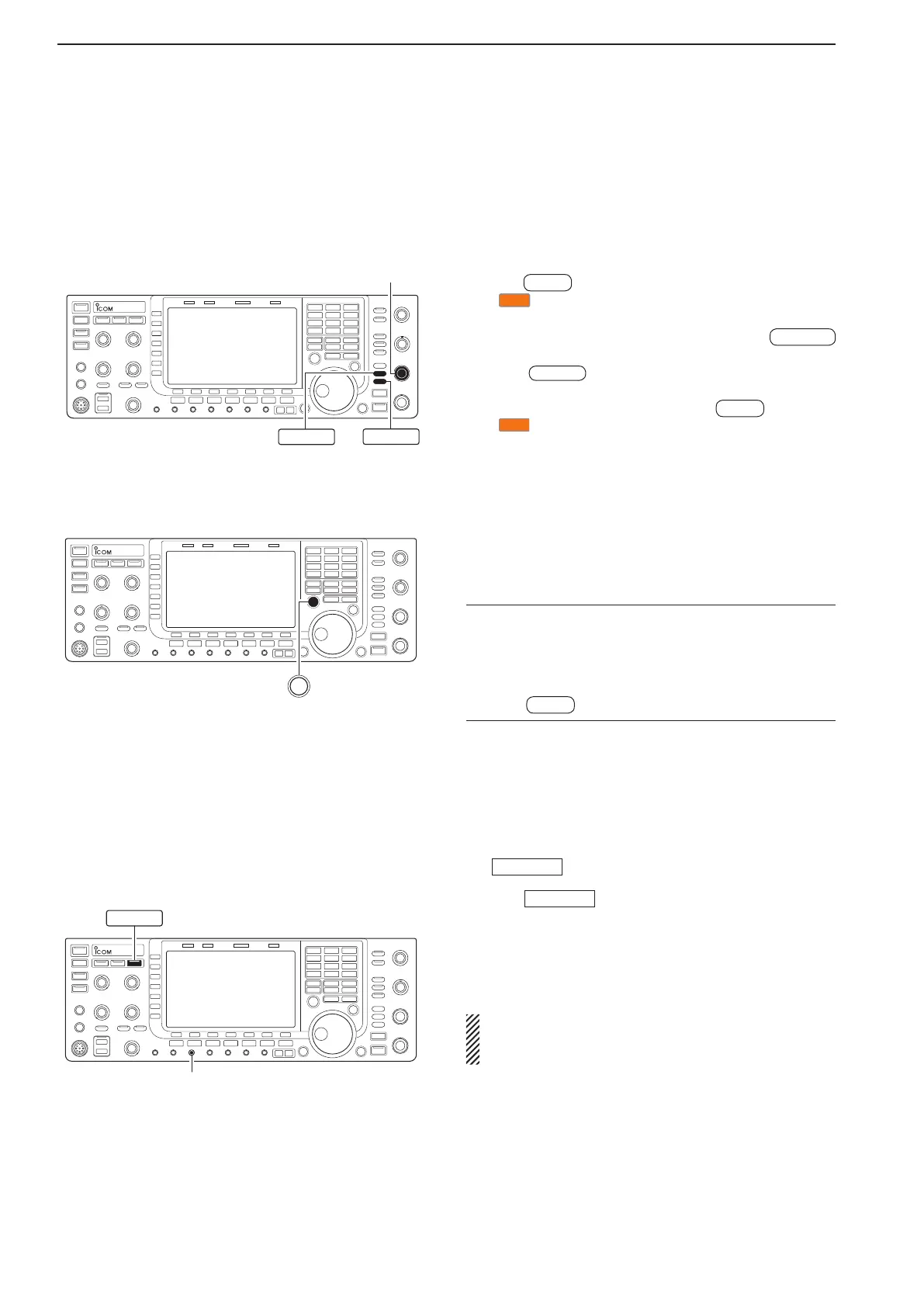

Page #114 background image
6-4
TX function
The TX function shifts the transmit frequency up to
±9.999 kHz in 1 Hz steps (10 Hz steps when cancel-
ling the 1 Hz step readout) without moving the receive
frequency.
q Push
TX
.
•“
TX
appears.
w Rotate [RIT/TX].
e To reset the TX frequency, hold down
CLEAR
for 1 second.
•Push
CLEAR
momentarily to reset the TX frequency
when the quick RIT/TX clear function is ON. (p. 12-15)
r To cancel the TX function, push
TX
again.
•“
TX
disappears.
D TX monitor function
When the TX function is ON, holding down [XFC] al-
lows you to monitor the operating frequency directly.
For your convenience— Calculate function
The frequency shift of the TX function can be
added/subtracted to the displayed frequency.
While displaying the TX shift frequency, hold
down
TX
for 1 second.
Monitor function
The monitor function allows you to monitor your trans-
mit IF signals in any mode. Use this to check voice
characteristics while adjusting SSB transmit parame-
ter (p. 12-5). The CW sidetone functions regardless of
the
MONITOR
switch setting.
q Push
MONITOR
to switch the monitor function ON
and OFF.
•[MONITOR]indicatorabovethisswitchlightsgreen.
w Rotate [MONI GAIN] for the clearest audio output
while pushing [PTT] and speaking into the micro-
phone.
NOTE: When usingtheVOX voice delay, turn the
monitor function OFF; or transmitted audio will be
echoed.
[RIT/TX]
TX
CLEAR
XFC
[MONI GAIN]
MONITOR
6
FUNCTIONS FOR TRANSMIT
