Icom IC-7700 User Manual

1-16
1
PANEL DESCRIPTION
The following screens can be selected from the start
up screen. Choose the desired screen using the fol-
lowing chart.
Pushing
EXIT/SET
several times returns to the start
up screen. See page 12-3 for set mode arrangement.
• Spectrum scope screen (p. 5-2)
• Voice recorder screen (p. 7-3)
• RTTY decoder screen (RTTY mode; p. 4-13)
• Memory keyer screen (CW mode; p. 4-8)
• Memory list screen (p. 8-5)
• PSK31 decoder screen (PSK mode; p. 4-21)
• Scan screen (VFO mode; p. 9-4)
• Scan screen (Memory mode; p. 9-6)
• Set mode menu screen (p. 12-2)
F-1 F-2 F-3
F-3
F-4
F-5
F-2 F-5
• Audio scope screen (p. 5-20)
F-6F-3
F-7F-3
F-4 F-5 F-6 F-7

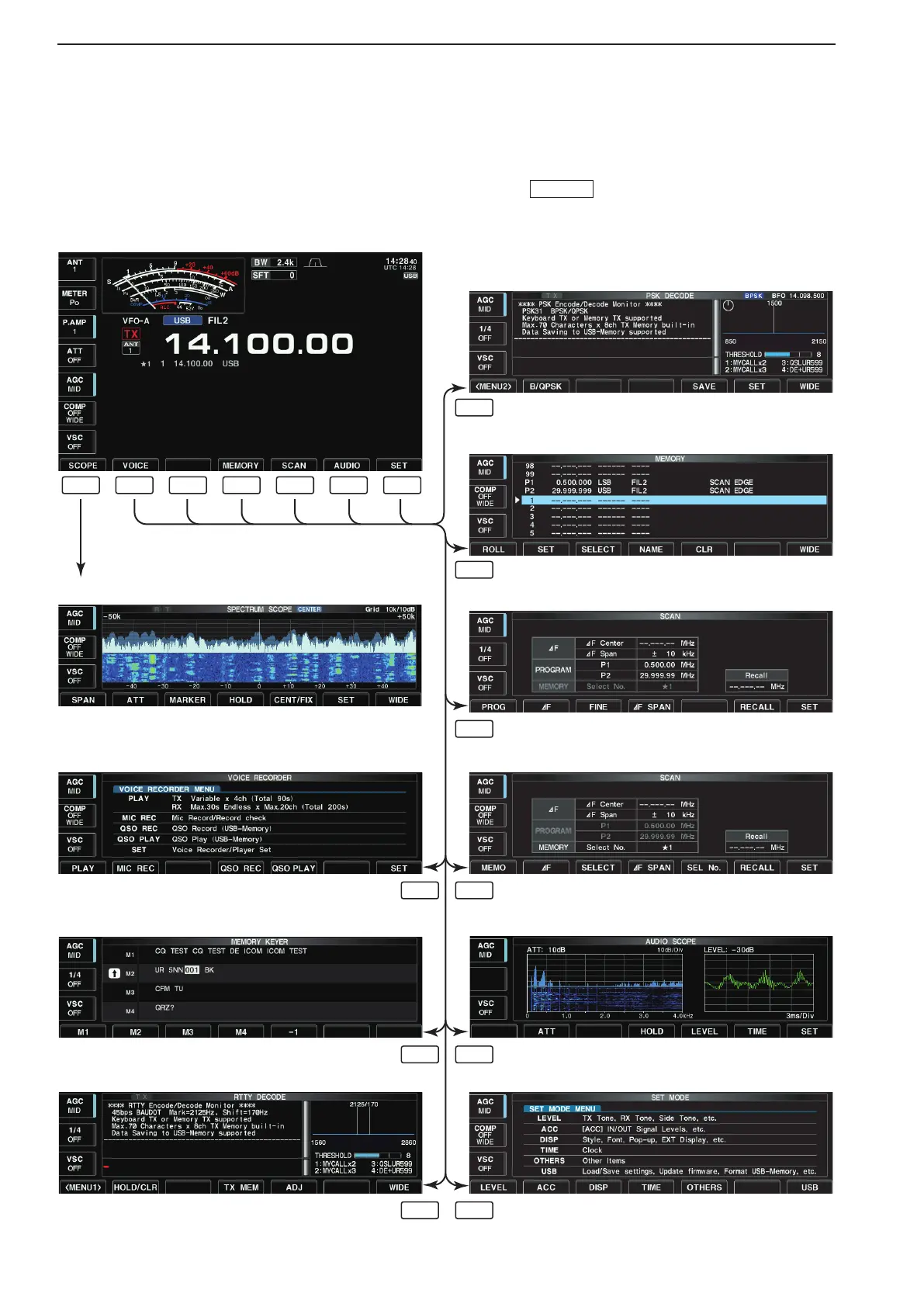

■ Screen menu arrangement

Icom IC-7700 Specifications

General

Modes	SSB, CW, RTTY, AM, FM
Voltage	13.8 V DC ±15%
Output Power	200 W (SSB/CW/RTTY/FM)
Receiver Type	Superheterodyne
Display	7-inch color TFT LCD
Antenna Tuner	Automatic
Image Rejection Ratio	More than 70 dB
IF Frequencies	1st: 64.455 MHz, 2nd: 455 kHz
Selectivity	2.4 kHz (SSB), 500 Hz (CW)
Current Drain	2.5 A (receive)
