5-4

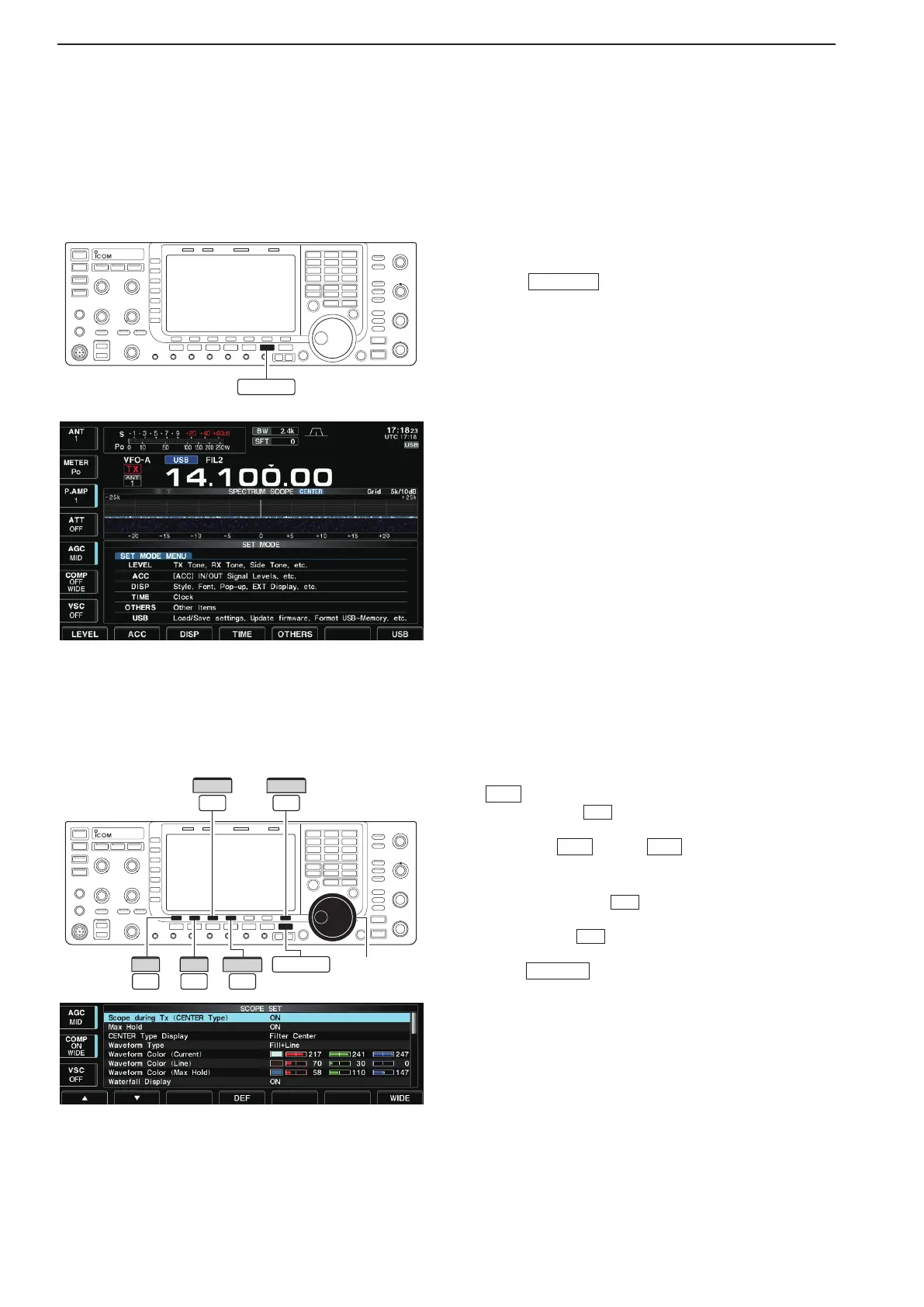

D Mini scope screen display
The mini scope screen can be displayed with another
screen display, such as set mode menu, decode
screen, memory list screen, etc. simultaneously.
qSetthescopemode(centerorfixed),marker,at-
tenuator, span, etc. in advance. (pp. 5-2, 5-3)
w Push
M.SCOPE
to toggle the mini scope display
ON or OFF.
•TheS/RFmetertypeduringminiscopedisplaycan
be selected in display set mode (Meter Type (Wide
Screen) item). (p. 12-10)
D Scope set mode
This set mode is used to set the waveform color,
sweepingspeed,scoperangeforfixedmode,etc.
q During spectrum scope display ON, push [SET]
F-6
to select scope set mode screen.
•Push[WIDE]
F-7
to toggle the screen size between
normal and wide.
w Push [Y]
F-1
or [Z]
F-2
to select the desired
set item.
e Set the desired condition using the main dial.
•Holddown[DEF]
F-4
for 1 second to select the de-
fault condition or value.
•Push[t u]
F-3
to select the set contents for some
items.
r Push
EXIT/SET
toexitfromsetmode.
F-3 F-7
WIDE
Ω ≈
Main dial
EXIT/SET
DEF
F-1
∫
F-2
√
F-4
5
FUNCTIONS FOR RECEIVE
