PANEL DESCRIPTION
2-9

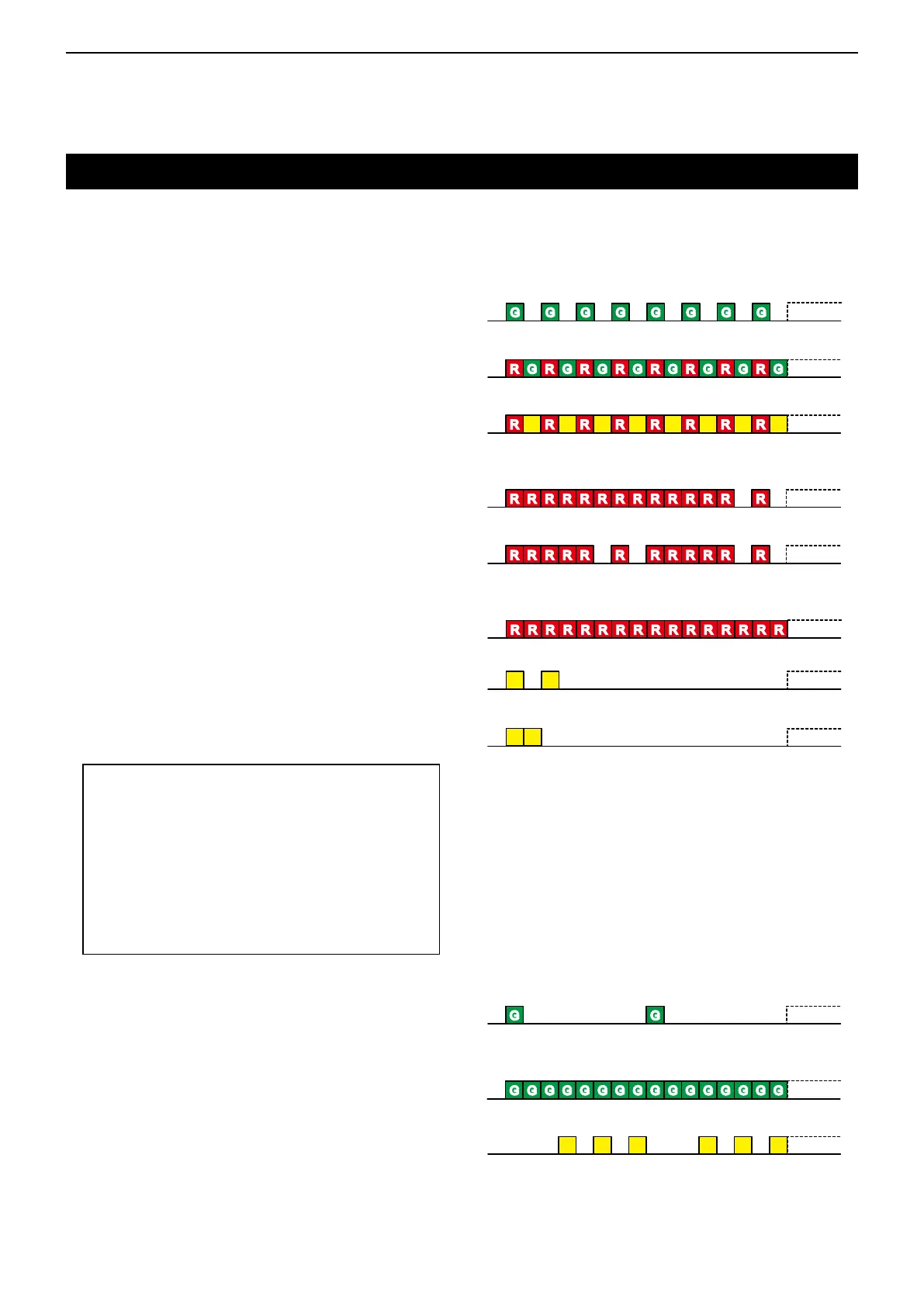

Status indicator
The Status indicator indicates the status of various
parameters of the transceiver as described below.
(Reference: R=Red, G=Green, Y=Yellow,
M=Magenta, W=White, B=Blue)
• Programming:
Blinks while reading or writing data.
• Programming Error:
Blinks if cloning fails.
• Channel Error:
Blinks when you select a blank channel, or an
unlocked channel.
• TX low Battery 1:
Blinks while detecting a low battery in the TX mode.
• TX low Battery 2:
Blinks while detecting a very low battery in the TX
mode.
• TX:
Lights while transmitting.
• Bell (Blink):
Blinks about twice every second.
• Bell (ON):
Blinks about once every second.
TIP: Depending on the “Bell” setting, the Status
indicator blinks:
• When a call that includes a matching 2-Tone
code is received.
• When a call that includes a matching 5-Tone
code is received.
• When a Call Alert is received.
• When a Message is received.
• When a Status call that includes a matching
status number is received.
• Scan, Hunt:
Blinks while scanning for a channel to search for a
signal, or while hunting for a control channel.
• RX:
Lights while receiving a signal.
• CH Access:
Blinks while making a call.
