Icom ID-800H User Manual

V
D Battery connection
RWARNING! NEVER remove the fuse holders from the DC
power cable.
NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power connec-
tions. (See p. 6 for details)
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent a short circuit.

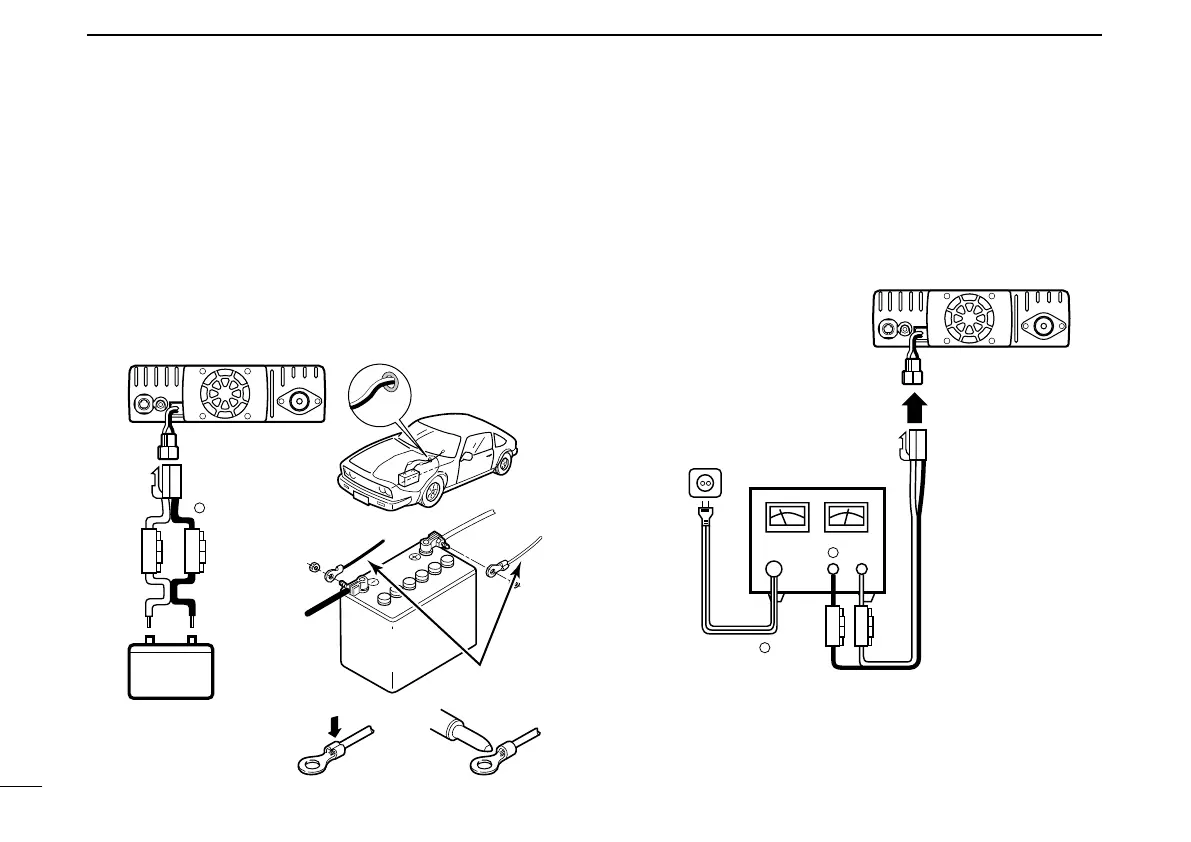

• CONNECTING TO A DC POWER SOURCE
D DC power supply connection
Use a 13.8 V DC power supply with at least 15 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
See p. 108 for fuse replacement.
DC power
supply 13.8 V
to an
AC
outlet
Fuses
20 A
black
red⊕
−
⊕
−
ID-800H
ID-800H
Fuses
20 A
black
red⊕
−
12 V
Grommet
NOTE:
Use terminals for the
cable connections.
WARNING!
NEVER
remove the
fuse holders.
Crimp
Solder
12 V
battery
Supplied
DC power cable
+ red
_ black
QUICK REFERENCE GUIDE
ID-800H_1.qxd 2007.06.14 3:09 PM Page V

Icom ID-800H Specifications

General

Brand	Icom
Model	ID-800H
Category	Transceiver
Language	English
