7
1
PANEL DESCRIPTION

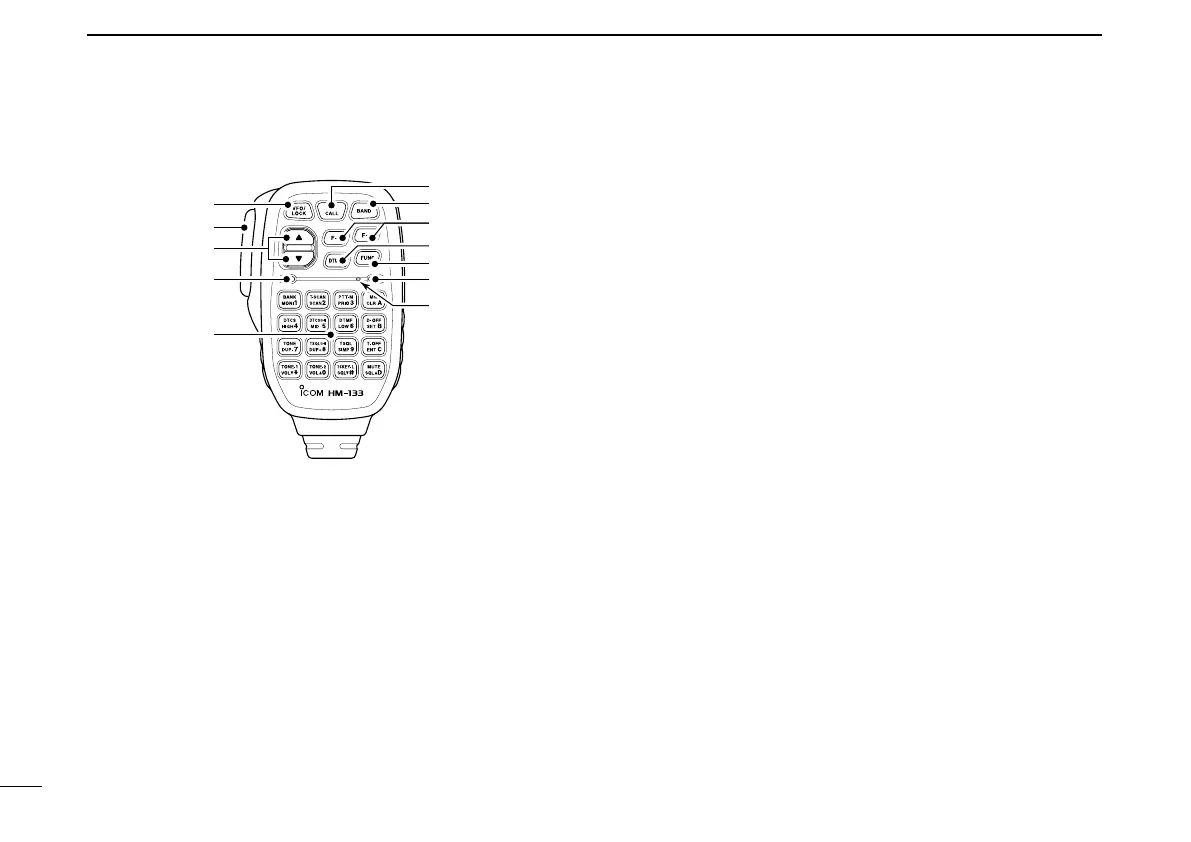

■ Microphone (HM-133*)
qVFO/LOCK SWITCH [VFO/LOCK]
➥ Push to select VFO mode.
(p. 11)
➥ Push and hold for 1 sec. to switch the lock function ON
and OFF.
(p. 14)
wPTT SWITCH
➥ Push and hold to transmit; release to receive.
➥ Switches between transmitting and receiving while the
one-touch PTT function is in use.
(p. 19)
eUP/DOWN SWITCHES [
YY
]/[
ZZ
]
➥ Push either switch to change operating frequency,
memory channel, set mode setting, etc.
(pgs. 12, 28, 92)
➥ Push and hold either switch for 1 sec. to start scanning.
(p. 44)
rACTIVITY INDICATOR
➥ Lights red while any key, except [FUNC] and [DTMF-S],
is pushed, or while transmitting.
➥ Lights green while the one-touch PTT function is in use.
tKEYPAD
(pgs. 8, 9)
yFUNCTION INDICATOR
➥ Lights orange while [FUNC] is activated—indicates the
secondary function of switches can be accessed.
➥ Lights green when [DTMF-S] is activated—DTMF sig-
nals can be transmitted with the keypad.
u2nd FUNCTION SWITCH [FUNC]
iDTMF SELECT SWITCH [DTMF-S]
(p. 53)
oFUNCTION SWITCHES [F-1]/[F-2] (p. 115)
Program and recall your desired transceiver conditions.
!0BAND SWITCH [BAND]
➥ Push to enter the band selection mode and then push
[
YY
]/[
ZZ
] to select the frequency band.
(p. 11)
➥ Push and hold for 1 sec. and then push [
YY
]/[
ZZ
] to se-
lect the operating mode.
(p. 15)
!1MEMORY/CALL SWITCH [MR/CALL]
➥ Push to select memory mode.
(p. 11)
➥ Push and hold for 1 sec. to select call channel. (p. 40)
*
A different microphone
may be supplied de-
pending on version.
ID-800H_1.qxd 2007.06.14 3:09 PM Page 7
