■ Front panel—controller
qSET•LOCK SWITCH [SET•LOCK]
➥ Enters set mode when pushed.
(p. 92)
➥ Switches the lock function ON and OFF when pushed
and held for 1 sec.
(p. 14)
wTUNING DIAL [DIAL]
Selects the operating frequency
(p. 12), memory channel
(p. 28), the setting of the set mode item and the scanning
direction
(p. 43).
eVOLUME CONTROL [VOL]
(p. 16)
Adjusts the audio level.
rPOWER SWITCH [PWR]
Turns power ON and OFF when pushed and held for
1 sec.
tMICROPHONE CONNECTOR
Connects the supplied or an optional microphone.
q +8 V DC output (Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
ySQUELCH CONTROL [SQL]
Varies the squelch level. (p. 16)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further. (p. 17)
q
i

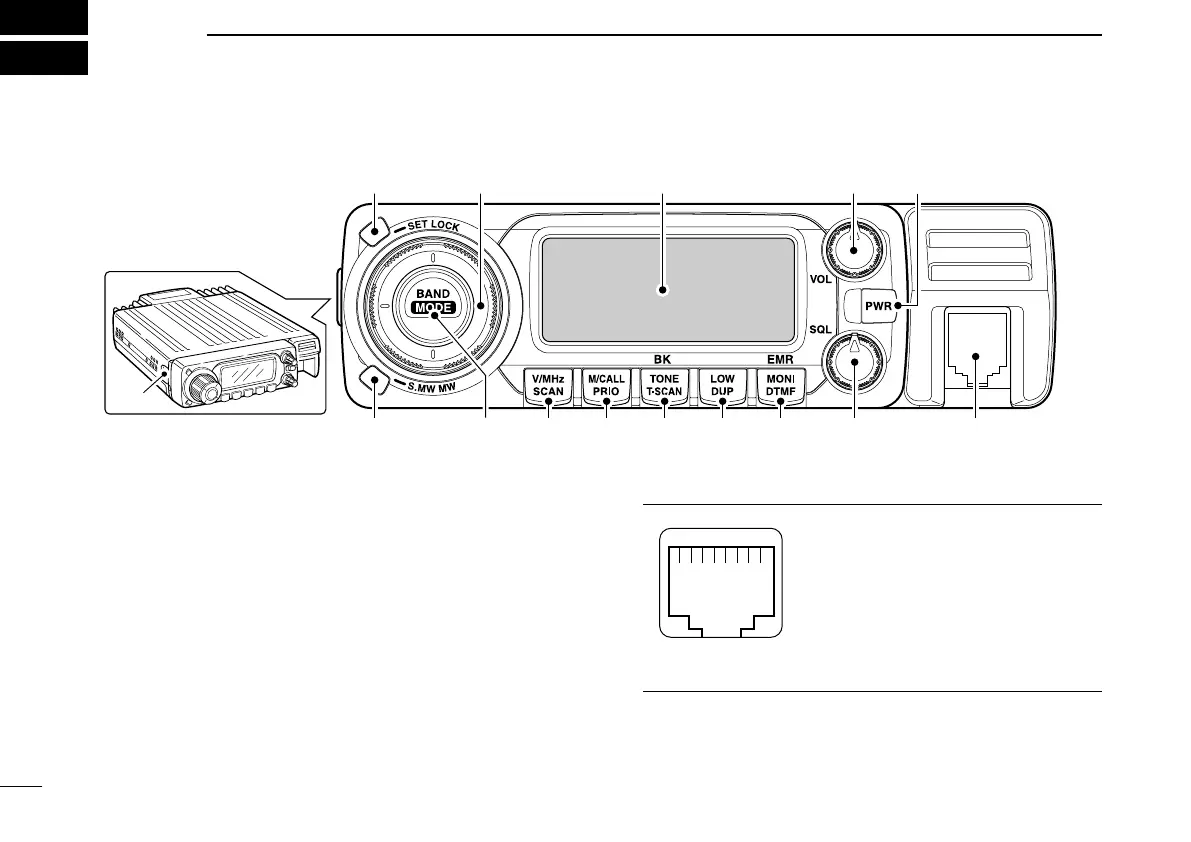

Front panel view
q w Function display (p. 3) e r
t
yuio!0!1!2!3
!4
1
PANEL DESCRIPTION
1
ID-800H_1.qxd 2007.06.14 3:09 PM Page 1
