Inovance Monarch 220-NICE-L-C-4022F User Manual

3 Peripheral Devices and Options
-
127
-
3.3.7 Residential Monitoring Board (MCTC-MIB-A)
The MCTC-MIB-A is used to query information such as elevator running state,
󶍿
communication. Users can monitor and control the elevator by using the PC installed
with the monitoring software in the monitoring room.
The MCTC-MIB-A has one RS458 interface and one RS232 communication interface,
corresponding signal indicator, and keypad RJ45 interface. The RS232 port is
connected to the controller or PC host computer, according to the parameter setting.
The RS485 port is connected to the RS485 port of other MCTC-MIB-A.
1 Appearance and dimensions
72
104
42
42
MCTC-MIB-A
Φ3.5
J3
J12
J15
J14
J6
J10
J11
J13
J8
J4
J5
J1
J18
J7

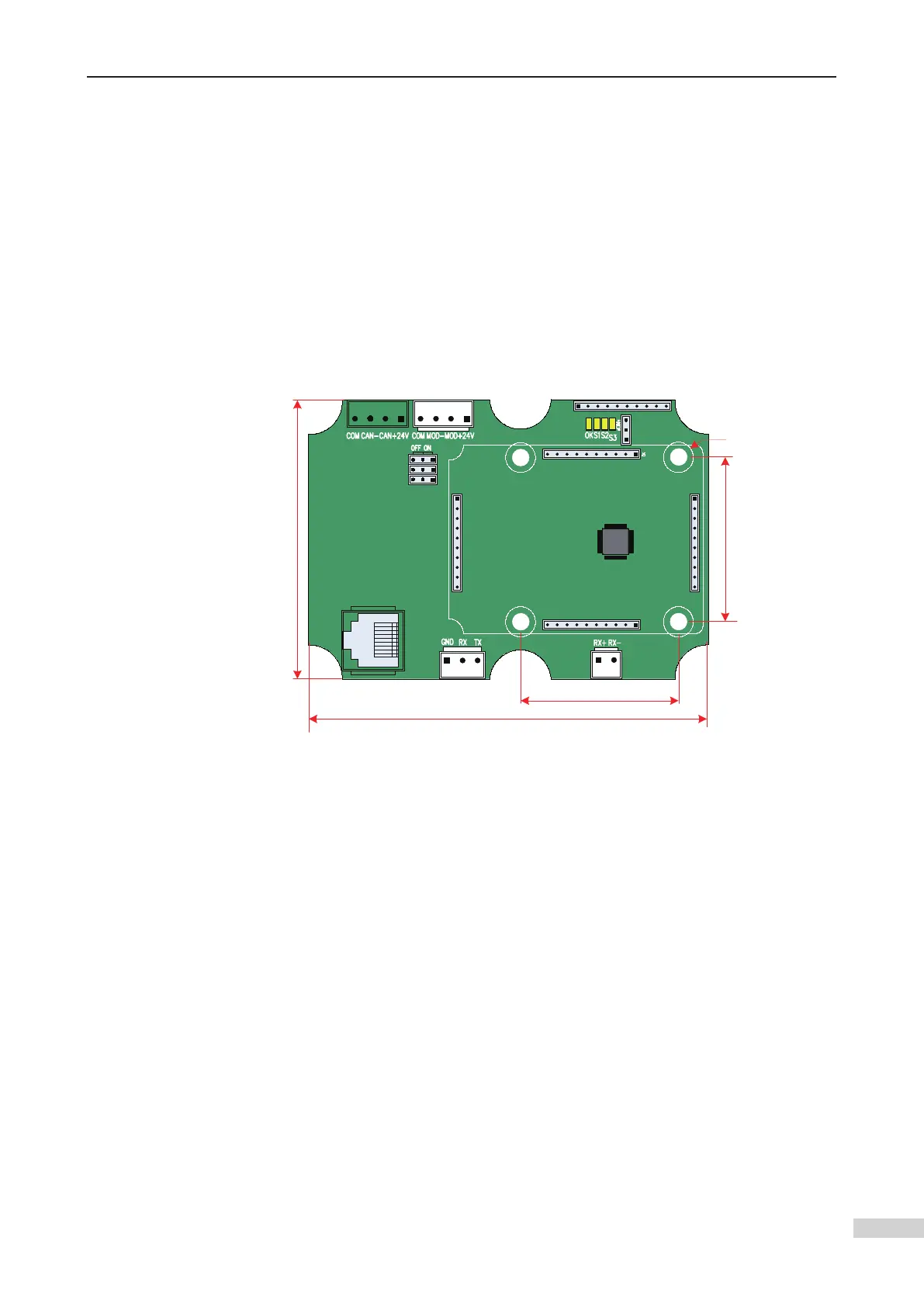

󶙽Appearance and dimensions of MCTC-MIB-A (unit: mm)
