3 Peripheral Devices and Options
-
129
-
Terminal ID Terminal Name Function description Terminal Layout
OK Power indicator
The indicator blinks when the
board power supply and the
single chip operate normally.
S1
Communication
indicator with
the controller
The indicator blinks when
communication with the
controller is normal.
S2
Communication
networking
indicator with
RS485
The indicator blinks when
communication networking with
RS485 is normal.
S3
Communication
indicator
with the host
computer
The indicator blinks when
communication with the host
computer is normal.
3.3.8 MCTC-PG Card
The NICE3000
new
can implement CLVC only with use of the MCTC-PG card. The follow-
󶍾-
troller. Directly insert the J1 terminal of the MCTC-PG card into the J12 terminal of the
controller.
PRG
UP
SET
NICE3000
new
integrated elevator controller
J12
J1
MCTC-PG card
CN1

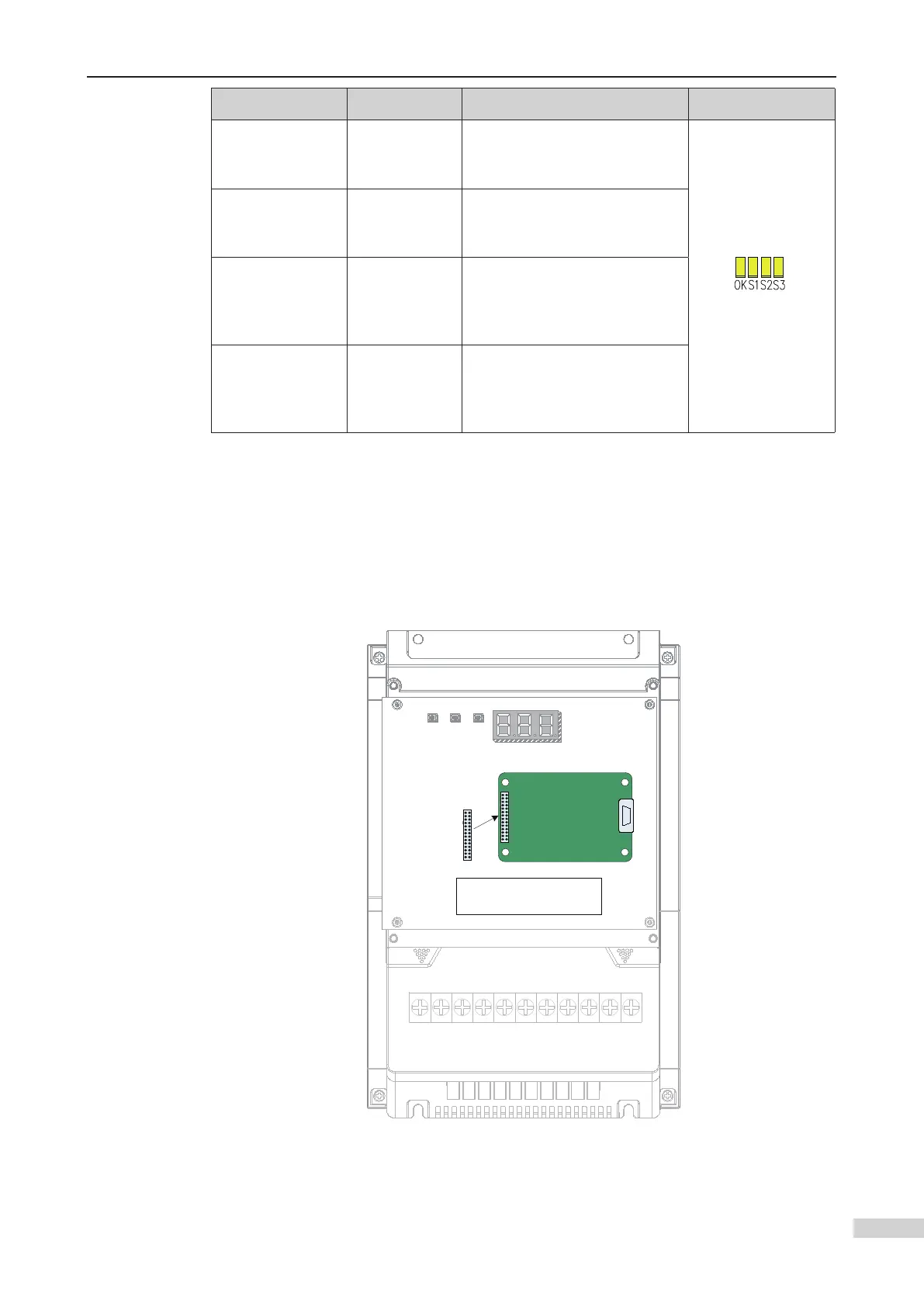

󶙽Appearance of the MCTC-PG card and its installation on the controller
