9 Description of Functions and Schemes
-
298
-
9.1 Attendant Function
1 Function description (Default setting of the system. Certain actions can be
modi󶍾ed by setting the parameters)
The elevator responds to hall calls.
The elevator does not close the door automatically. You need to hold down the
door close button to close the door. During door close, if you release the door close
button, the elevator opens the door again automatically.
In attendant state, direct travel ride and direction change can be implemented by
respectively using JP20 and JP22 on the CCB. After the direction change signal is
active once, the elevator will respond to the reversed direction call by changing the
running direction of the next running.
If the elevator that enters the attendant state is under parallel/group control, the
hall calls of this elevator is responded to by other elevators in the parallel/group
control system.
2 Wiring
1 2 3 4 1 2 3 4 1 2 3 4 1
2 3
4
1 2 3 4 1 2 3 4 1 2 3 4 1 2
3 4
1 2 3
4
1 2 3 4 1 2 3 4 1 2 3 4
1 2 3 4 1 2
3
4
1
2
3 4
1 2 3 4
1 2 3 4 1 2
3 4
1
2 3 4
1
2 3 4
1 2 3 4 1 2 3
4
1 2
3 4
1 2 3 4
JP
1 JP2
JP3
JP4
JP
5 JP
6 JP7
JP8
JP9 JP10 JP11 JP
12
JP13 JP14 JP15
JP16
JP17 JP18
JP19 JP20
JP21 JP22 JP
23 JP24
CN1
Buzzer
Floor 1 Floor 2 Floor 3 Floor 4
Floor 5
Floor 6
Floor 7 Floor 8
Floor 9 Floor
10 Floor 11
Floor 12
Floor 13 Floor
14 Floor 15
Floor 16
Attendant
Direction
change
Independent
running
Fire
emergency
Door
open
Door
close
Door open
delay
Direct
travel ride
MCTC-CCB-A
CN2
JP21
JP
22
Attendant
switch
Direction
change
switch
JP20
Direct travel
ride
switch

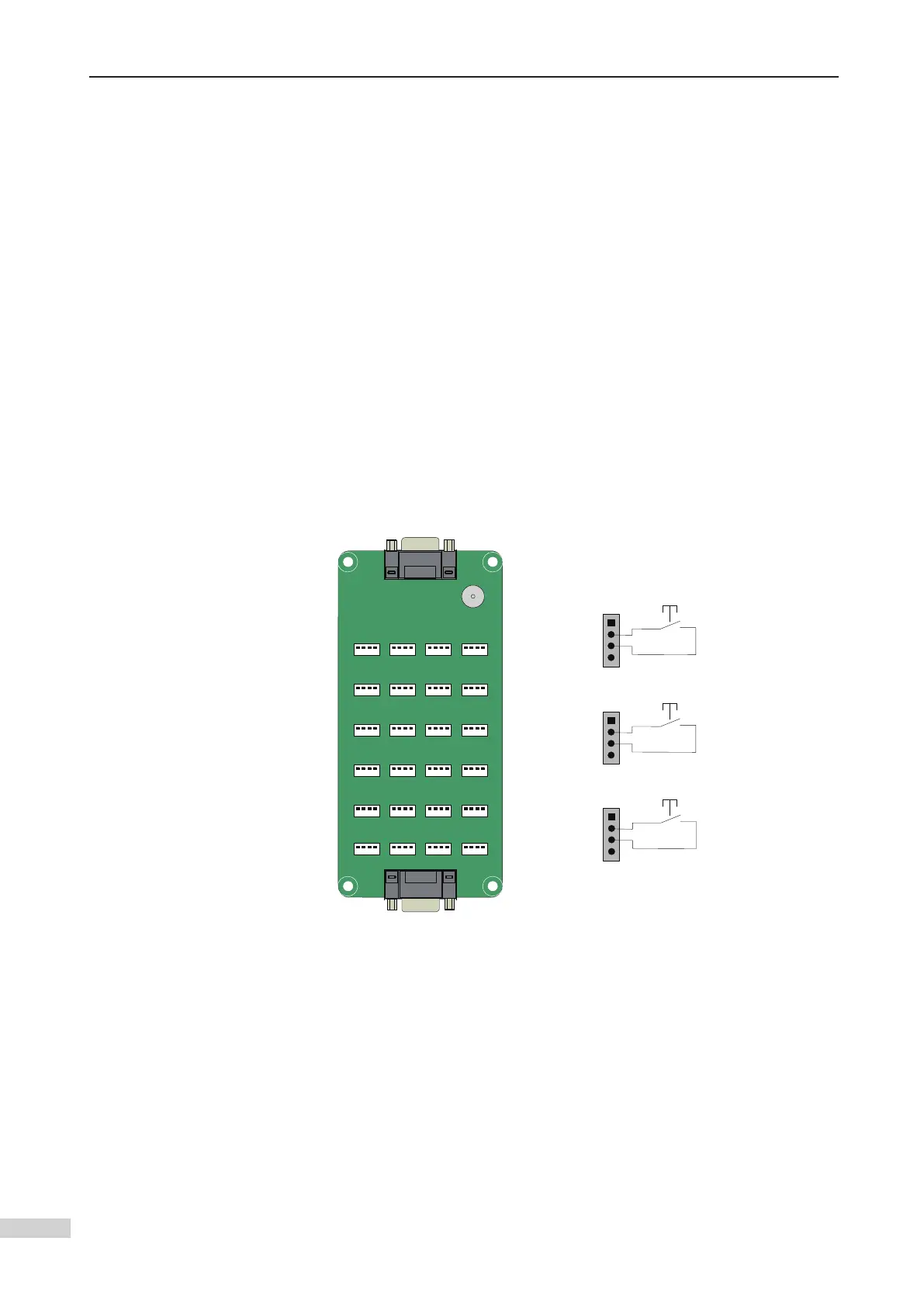

󶙽Wiring for attendant mode
After pins 2 and 3 of JP21 of the CCB is ON, the elevator enters the attendant state.
After pins 2 and 3 of JP20 of the CCB is ON, the elevator enters the direct travel ride
state.
After pins 2 and 3 of JP22 of the CCB act once, the running direction of the elevator
is changed once in attendant state.
