Inovance Monarch 220-NICE-L-C-4022F User Manual

4 Commissioning Tools
-
134
-
The NICE3000
new
supports four commissioning tools: onboard 3-button keypad (here-
inafter called the “keypad”), LED operation and information display panel (hereinafter
called the “operation panel”), host computer monitoring software, and cell phone
commissioning software.
Tool Function Description Remarks
Keypad
It is used to enter the shaft commissioning
󶍿
Standard
LED operation panel
(MDKE)
It is used to view and modify parameters related to
elevator drive and control.
Optional
LED operation panel
(MDKE6)
It is used to upload, download, view, and modify
controller parameters.
Optional
Cell phone
commissioning
software (EDSAP)
An external WIFI module is used to connect the
MCB and the smartphone installed with the
commissioning software, through which you can
commission the elevator, and upload and download
parameters.
Optional
The following part describes the commonly used keypad and LED operation panel
(MDKE) in detail.
4.1 Keypad
The keypad consists of three LEDs and three buttons. You can view information about
the controller and enter simple commands on the keypad.
󶍾
PRG
UP
SET
A
B
C
DP
D
E
F
G

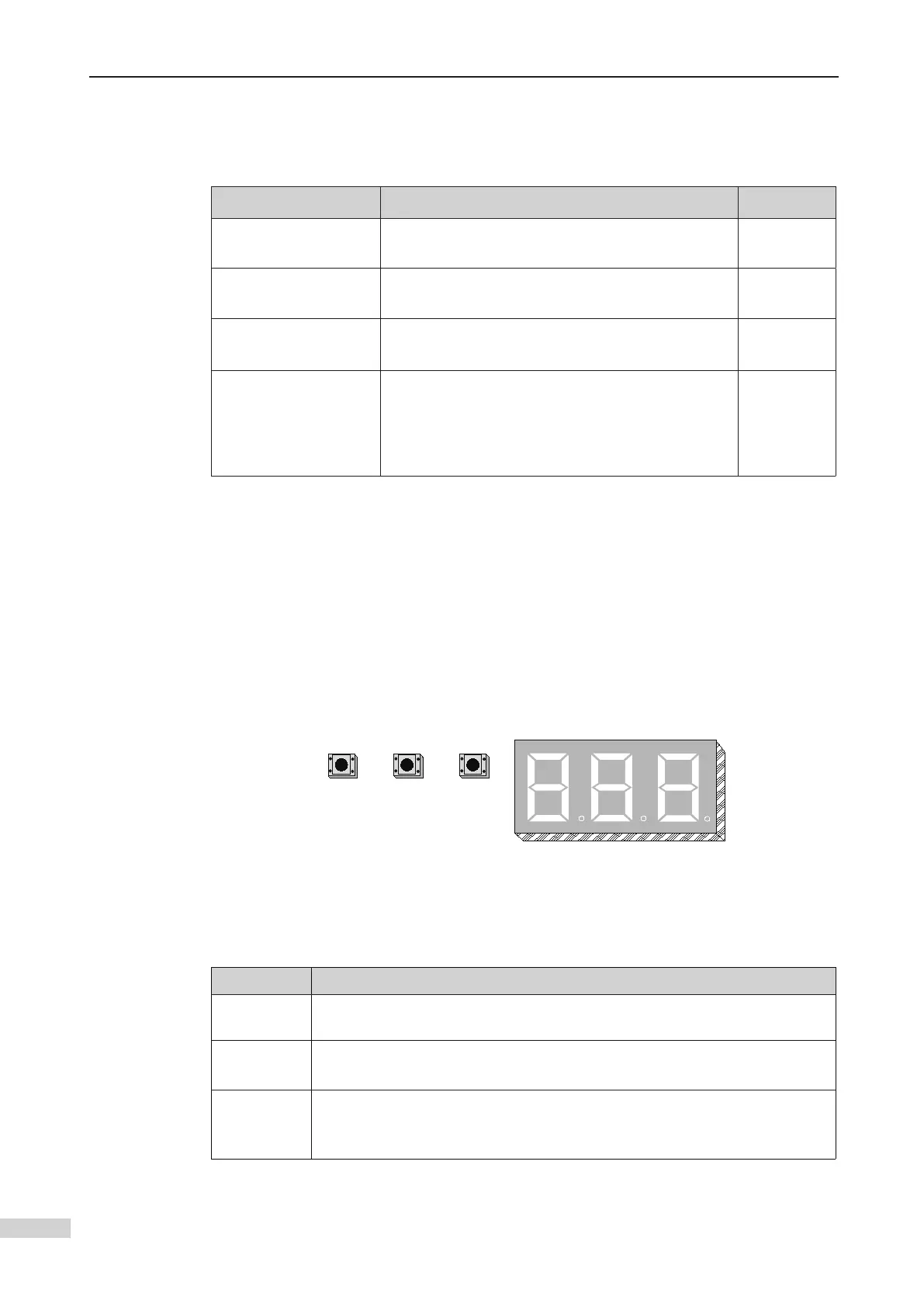

󶙽 Appearance of the keypad
󶍾-
tions of the three buttons are described in the following table.
Button Function
PRG
◆
Press this button in any state to display the current function group number
and exit the current operation.
UP
◆
Press this button to increase the function group number or data.
◆
In group F6 menu, this button is used to input the door open command.
SET
◆
󶍾
operation.
◆
In group F6 menu, this button is used to input the door close command.
