9.15.2 Opposite Door Control Scheme 2

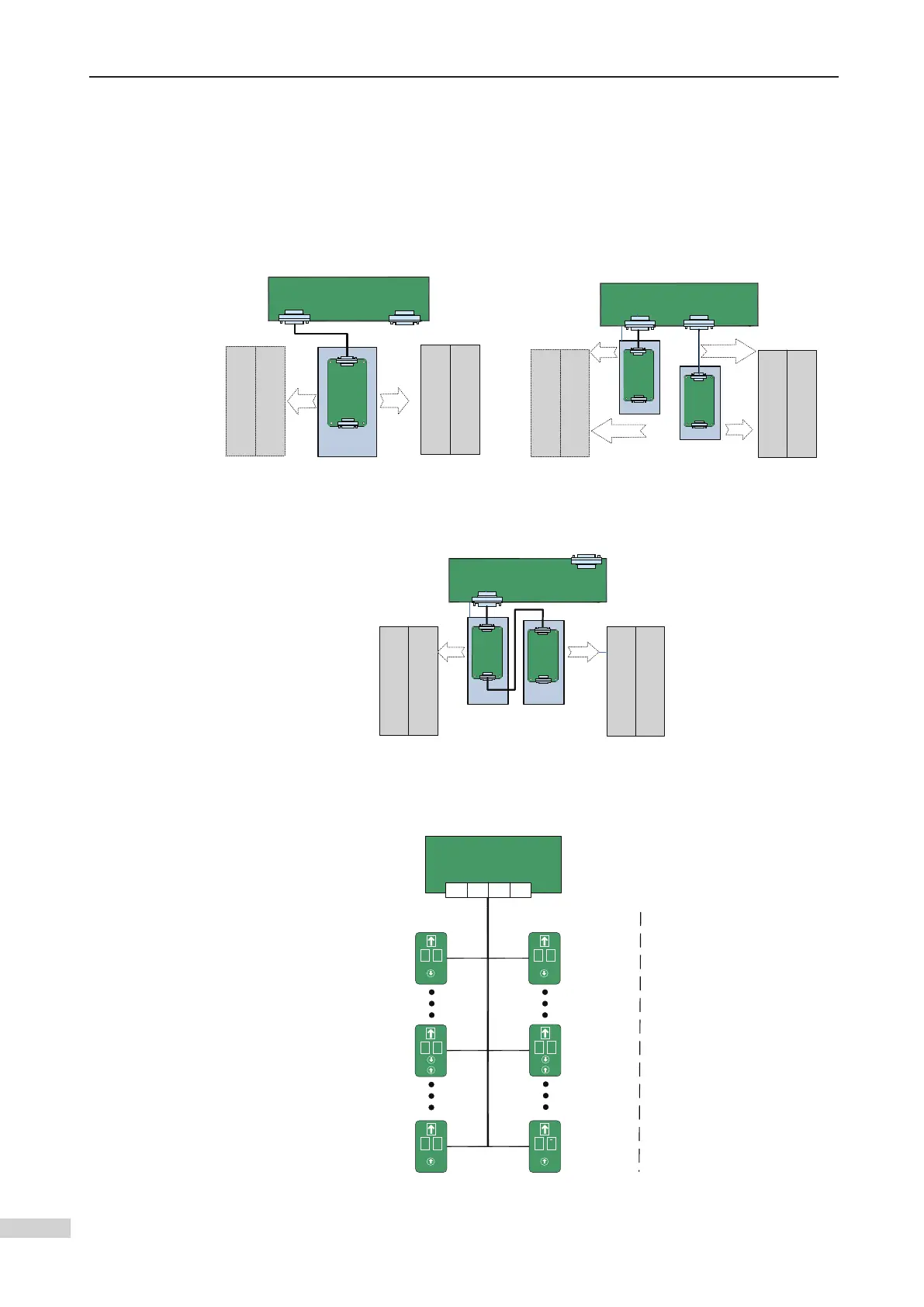

1 Wiring
1) CCB wiring
󶍾
CCB wiring of single operation box CCB wiring of double operation boxes
MCTC-CTB-A
CN7
CN8
MCTC-
CCB-A
Front door
Control
Control
Single
operation box
Back door
MCTC-CTB-A
CN7
CN8
MCTC-
CCB-A
Front door
Control
Front operation
box
Back door
MCTC-
CCB-A
Back operation
box
Back door control
Front door control
Control
󶙽CCB wiring in modes 1, 2, and 3
󶍾
MCTC-CTB-A
CN7
CN8
MCTC-
CCB-A
Front door
Control Control
Front operation
box
Back door
MCTC-
CCB-A
Back operation
box
CN8 not used
󶙽CCB wiring in mode 4
2) HCB setting
24
V
COM
MOD+
MOD-
NICE3000
new
controller
CN3
HCB of front door HCB of back door
Address:
1
Address:
X
Address:
15
Address: 17
Address:
16 +
X
Address
: 31
Floor 15
Floor X
Floor 1
󶙽󶍿
