LUBRICATING SYSTEM

111

GENERAL DESCRIPTION

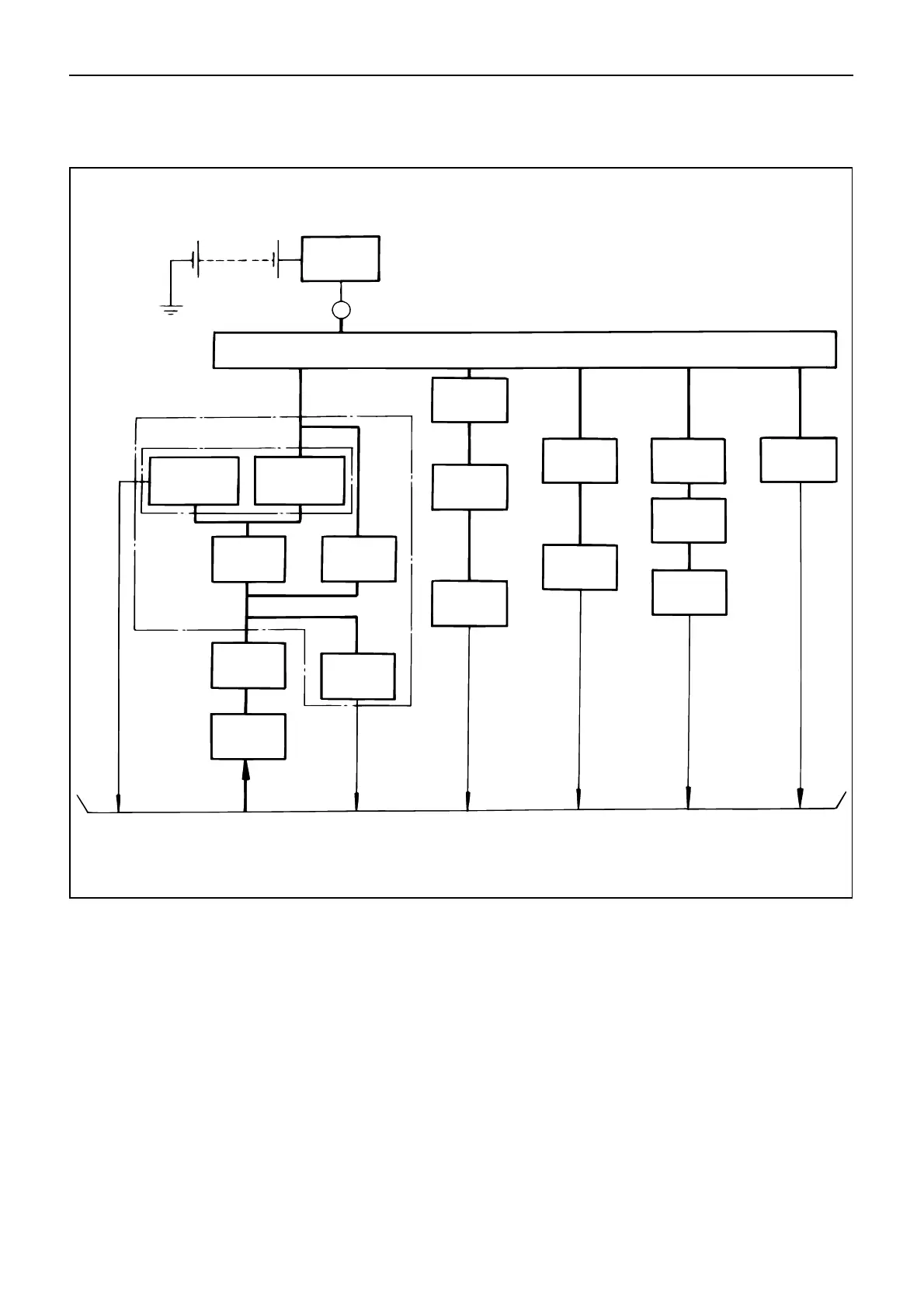

LUBRICATING OIL FLOW

Battery

Warning

Light

Oil pressure switch

Cylinder block oil gallery

Oil filter and cooler assembly.

Filter cartridge

Main flow

oil filter

Partial flow

oil filter

(If so equipped)

Oil cooler

Relief valve

Oil pump

Regulating

valve

Oil strainer

(Orifice)

Oil pan

Idle gear

shaft

Oil pipe

Timing

gears

Crank shaft

bearing

Connecting

rod bearing

Camshaft

bearing

Rocker arm

shaft

Rocker arm

Vacuum

pump

The A-4J Series engine lubricating system is a full flow type.

Lubricating oil is pumped from the oil pump to the cylinder body oil gallery through the oil cooler and the

oil filter. It is then delivered to the vital parts of the engine from the cylinder body oil gallery.
