LUBRICATING SYSTEM
120

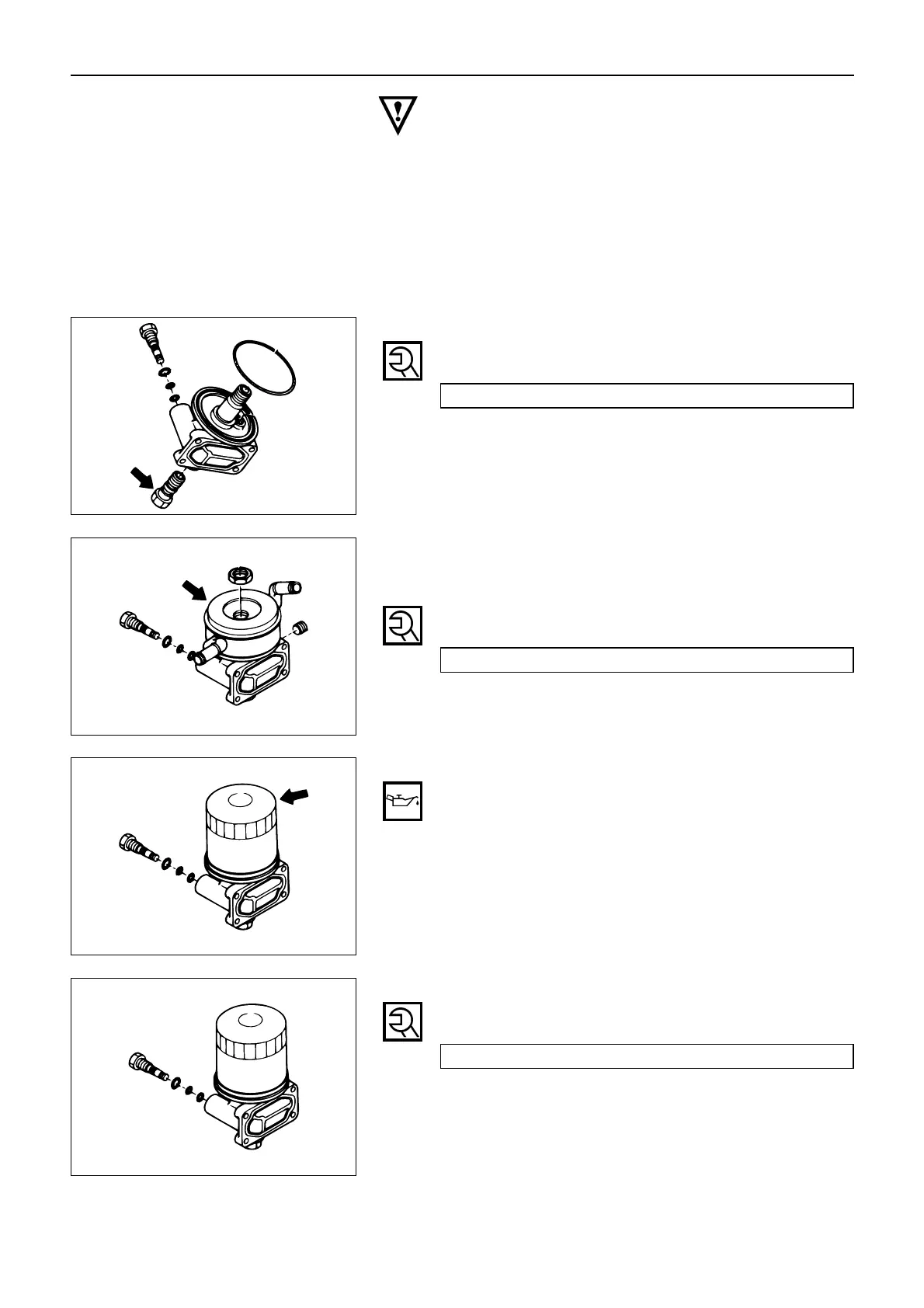

Important Operations
2. Relief Vale
Tighten the relief valve to the specified torque.
Relief Valve Torque kgf·m(lb.ft/N·m)
5. Oil Cooler
1) Align the oil filter holes with the body knock
pins at installation.
2) Tighten the oil cooler to the specified torque.
Oil Cooler Torque kgf·m(lb.ft/N·m)
6. Oil Filter Cartridge
1) Apply engine oil to the O-ring.
2) Turn in the cartridge oil filter until the filter seal-
ing face makes contact with the O-ring.
3) Turn in the cartridge oil filter an additional 1 and
1/4 of a turn.
7. Drain Plug
Tighten the drain plug to the specified torque.
Drain Plug Torque kgf·m(lb.ft/N·m)
2.5 – 3.5 (18.1 – 25.3/24.5 – 34.3)
2.5 – 3.5 (18.1 – 25.3/24.5 – 34.3)
1.0 – 2.0 (7.2 – 14.4/9.8 – 19.6)
To Next Page
