ENGINE ELECTRICALS

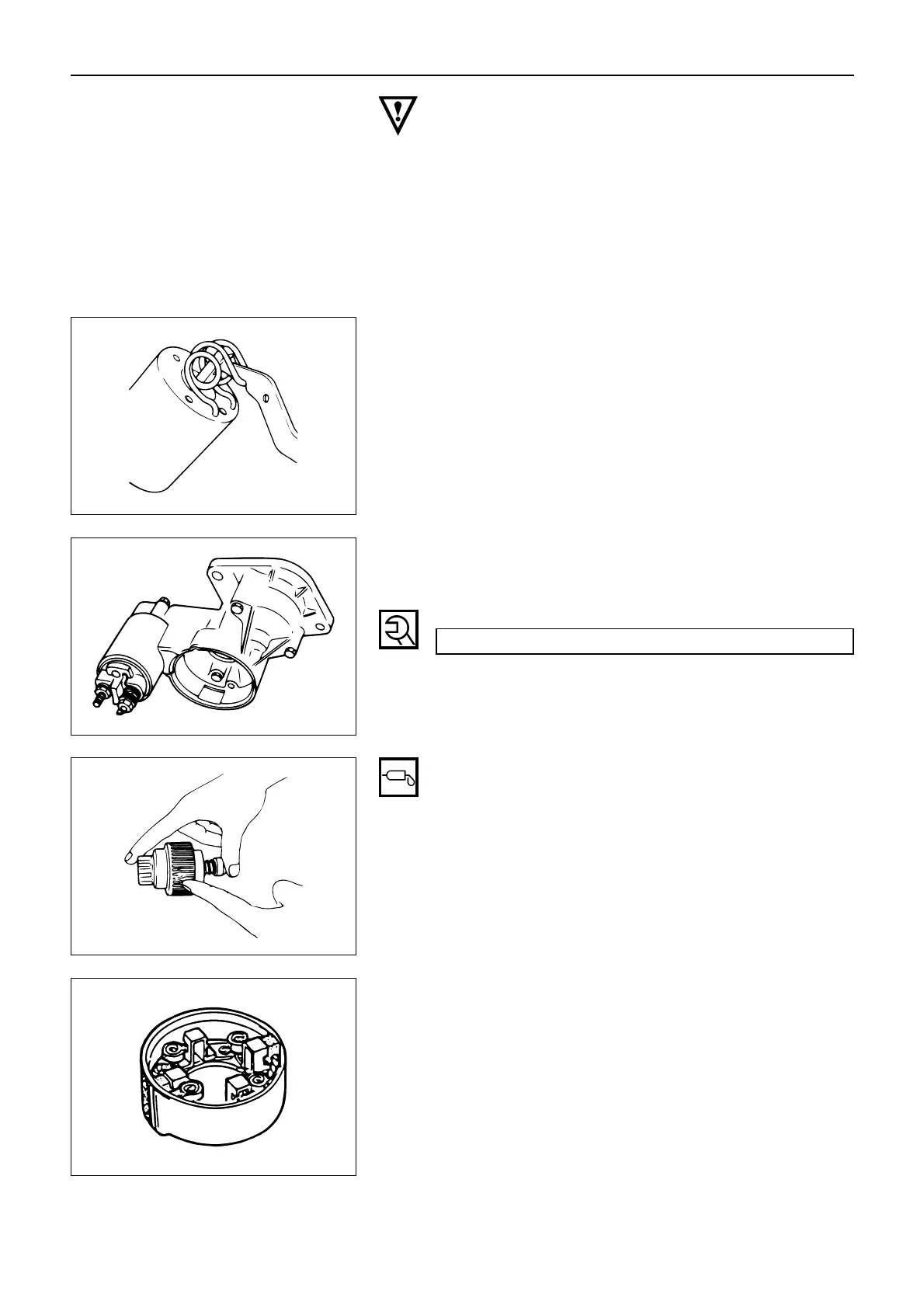

4. Torsion Spring
5. Shift Lever
Set the torsion spring to the hole in magnetic
switch.
Insert the shift lever, via the torsion spring, into
plunger hole in the magnetic switch.
6. Dust Cover
Install the magnetic switch in gear case.
Make sure to install the dust cover.
Dust Cover Bolt Torque kgf·m(lb.ft./N·m)
0.7 – 0.8 (5.1 – 5.8/6.9 – 7.9)
9. Pinion
Install the pinion after applying grease to the re-
duction gear.
17. Brush Holders
When installing brushes, exercise care so as not to
cause damage to the commutator face.
Install the brush by raising the end of the brush
spring.
Install the brush holder by aligning it with the yoke.
160
Important Operations
