ENGINE ASSEMBLY ( 2 )
CRANKSHAFT PILOT BEARING
Check the crankshaft pilot bearing for excessive wear
and damage and replace it if necessary.
71
Crankshaft Pilot Bearing Replacement

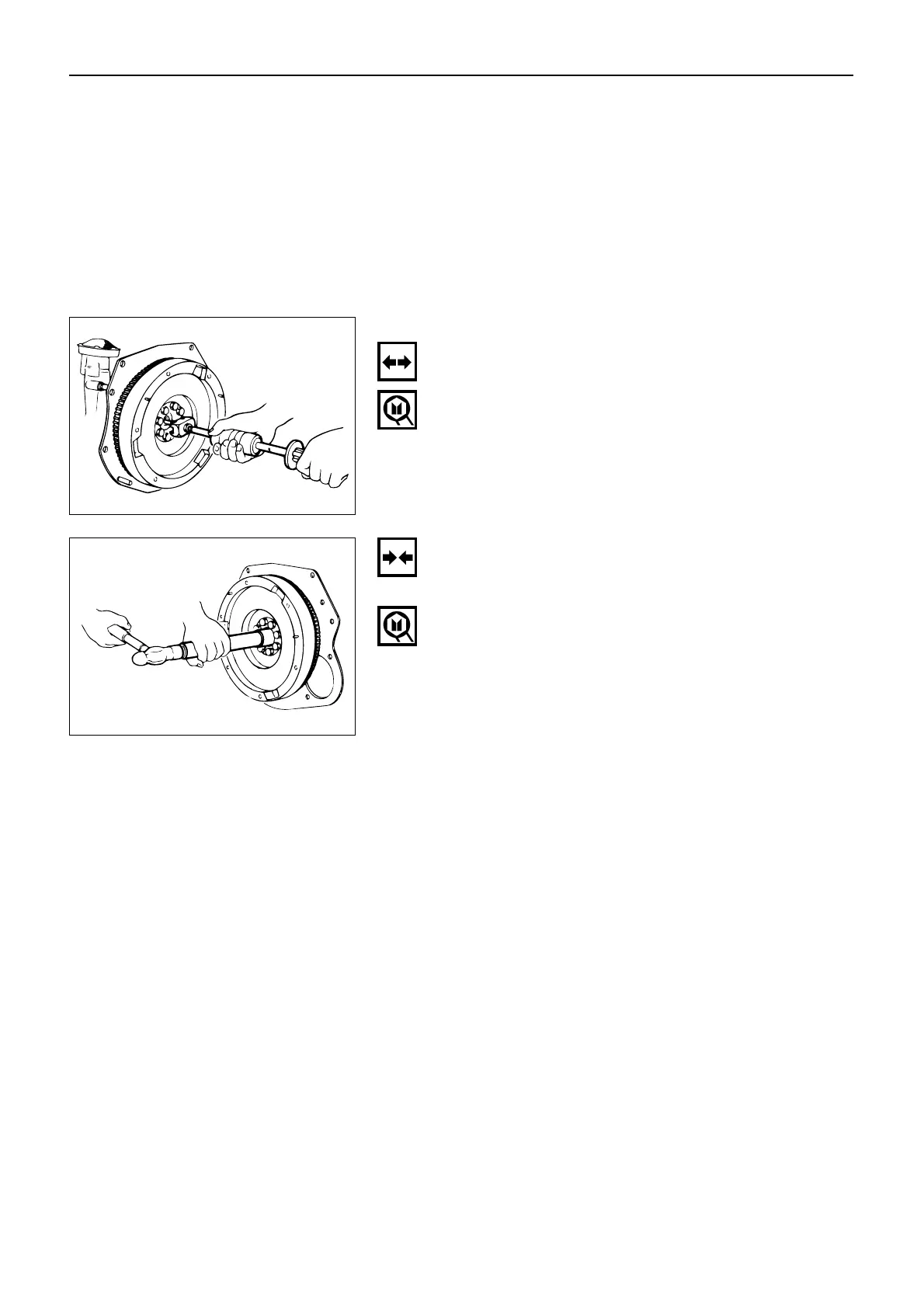

Crankshaft Pilot Bearing Removal
Use the pilot bearing remover to remove the pilot bear-
ing.
Pilot Bearing Remover: 5-8840-2000-0
Sliding Hammer: 5-8840-0019-0
Crankshaft Pilot Bearing Installation
1. Place the crankshaft pilot bearing horizontally across
the crankshaft bearing installation hole.
2. Tap around the edges of the crankshaft pilot bearing
outer races with a brass hammer to drive the bear-
ing into the crankshaft bearing installation hole.
Pilot Bearing Installer: 5-8522-0024-0
Note:
Strike only the crankshaft pilot bearing outer races with
the hammer. Do not strike the bearing inner races.
Bearing damage and reduced bearing service life will
result.
To Next Page
