BRUSH

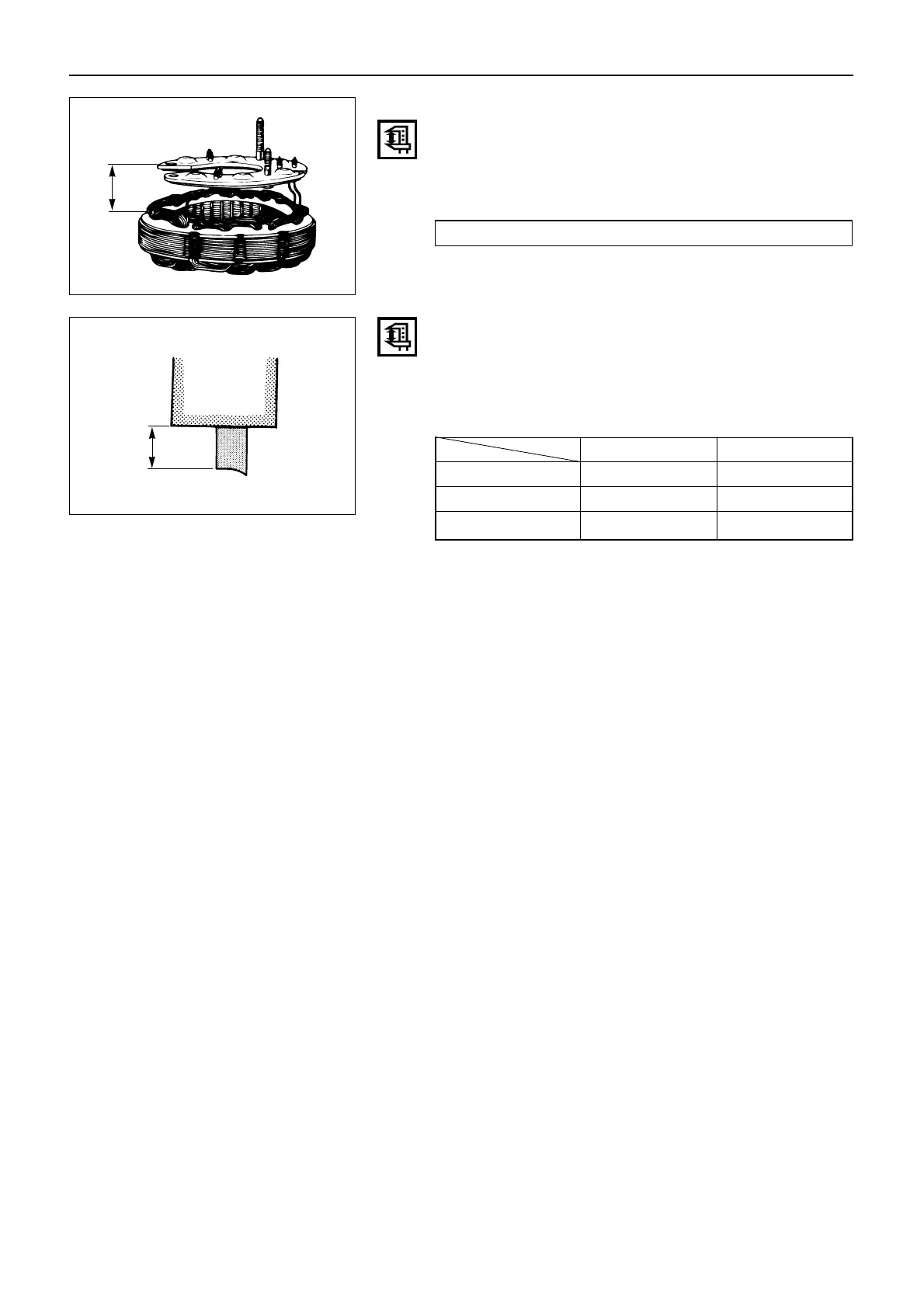

Use a vernier caliper to measure the brush.
If the measured value exceeds the limit, the brush must
be replaced.
Brush Length mm(in.)
Standard Limit
8-94423-756-0 14.5 (0.57) 7.5 (0.30)
8-94431-560-0 16.0 (0.63) 7.0 (0.28)
5-81200-335-0 14.5 (0.57) 7.5 (0.30)
Brushes are provided with a line which indicates the
limit of usage.
ENGINE ELECTRICALS
Note:
1. The stator lead wires must be cut to the proper
length before they are connected to the rectifier
lead wires. If the stator lead wires are too long or
too short, trouble may occur.
Stator Lead Wire Length mm(in.)
33.5 (1.32)
2. Take care not to damage the rectifier paint surfaces.
171
